The 2110 SSB Transceiver
28 2110 SSB Transceiver Reference Manual
The front panel

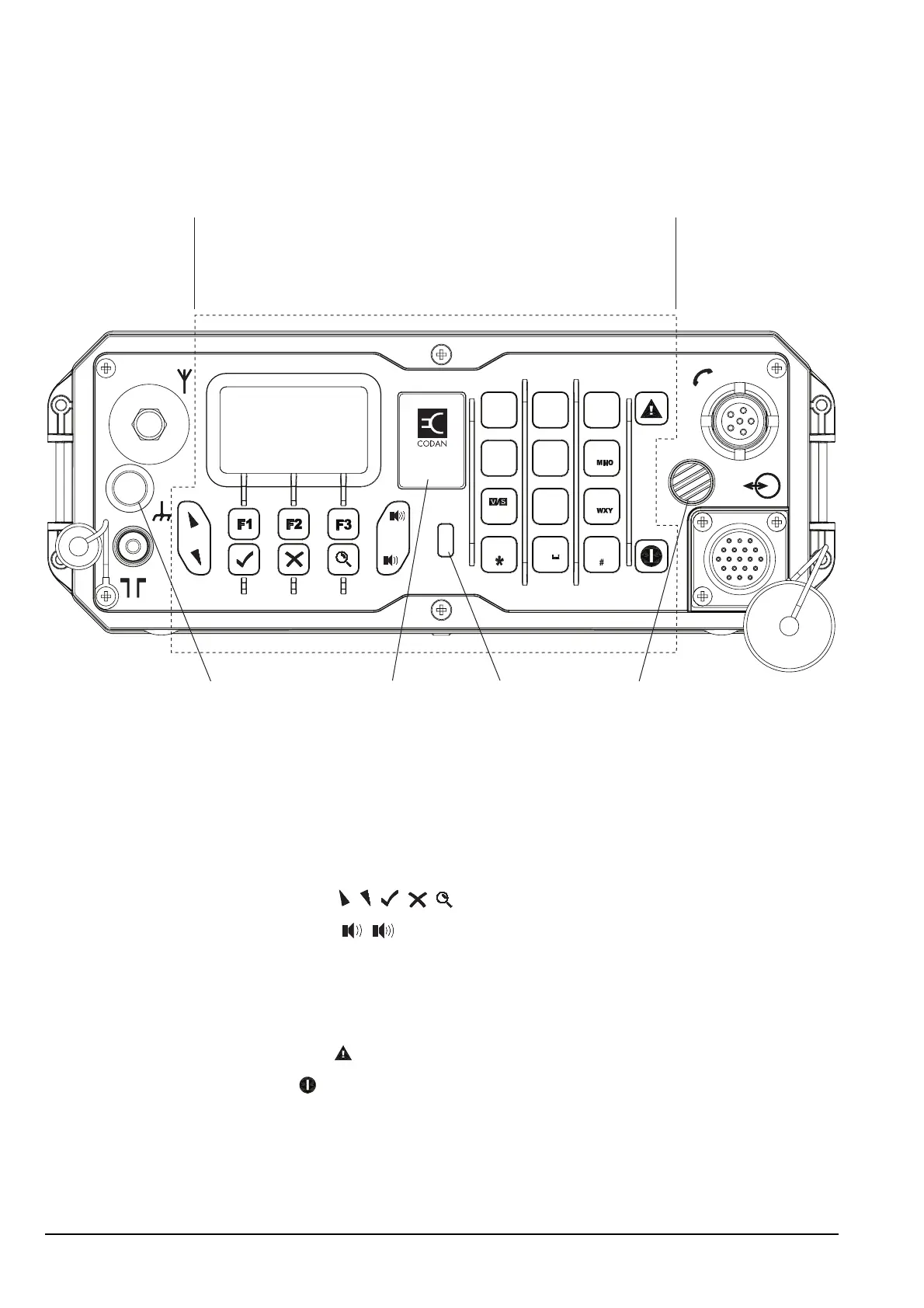

Figure 3: The front panel
User controls
The user control area comprises:
• an LCD
• navigation keys ( , , , , )
• volume controls ( , )
• soft function keys (F1, F2, F3) corresponding to the function displayed on the front
panel screen
• alphanumeric keys (0–9,
*
, #)
• emergency key ( )
• power key ( )
There are two ways to use the keys on the front panel. You can:
• press a key, briefly
• hold a key for 2 seconds
interface
connectorsuser controlsantennas
infrared
window
location of
internal
GPS
antenna
internal
speaker
earth
terminal
VIEW
0
1
QZ
TUNE
2
ABC
CLAR
MODE
DEF
3
Rx
FREE
4
GHI
5
JKL
Tx
PWR
6
7
PRS
8
TUV
SEC
GPS
9
CALL
LOGS
EASI
TALK
