The front panel screen
The screen on the front panel consists of three lines.

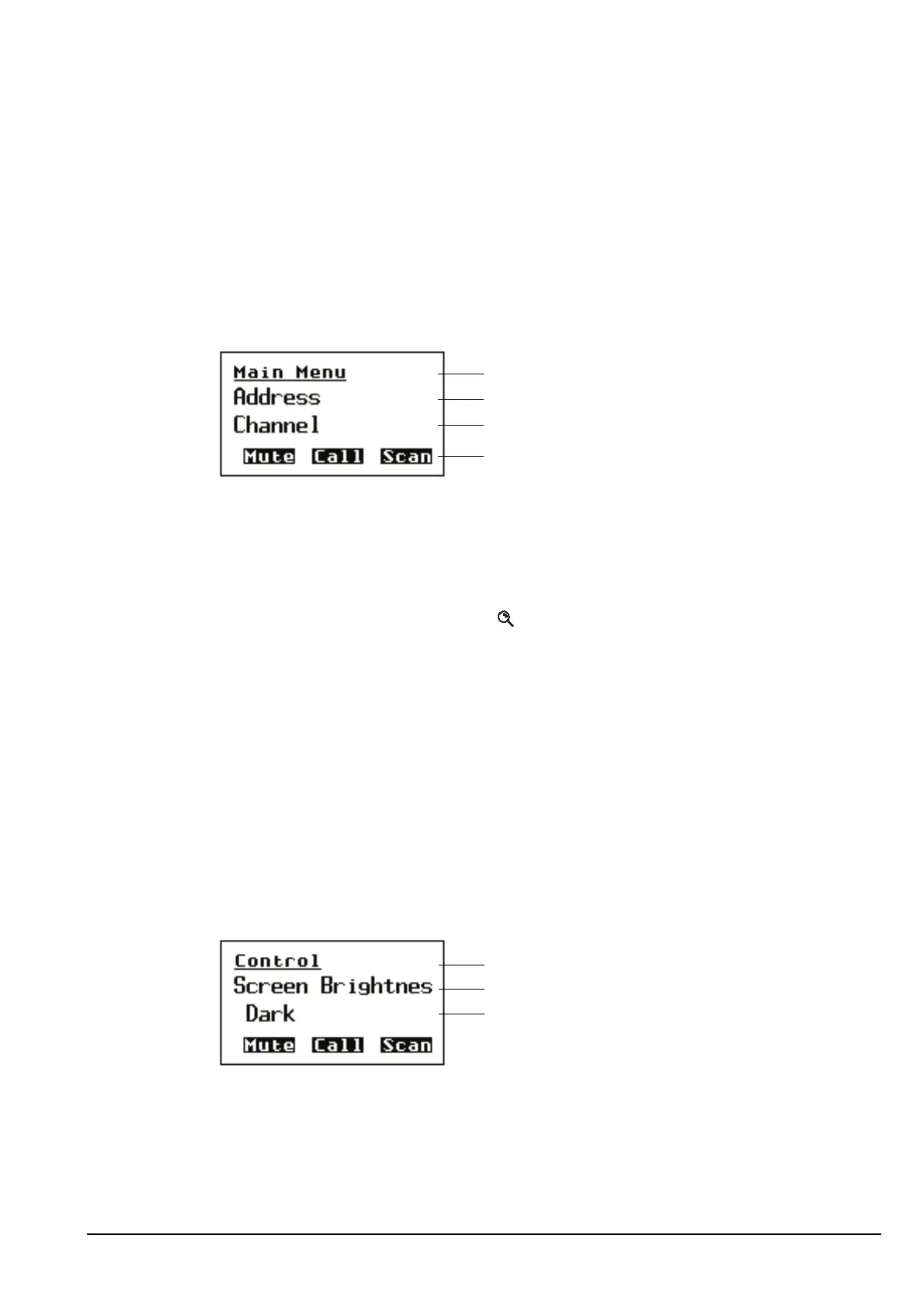

Figure 7: The front panel screen
The information displayed on the top line depends on the task you are performing. It can
display:
• the name of the list, entry or setting you are in
• the Find prompt when you press
The next line is called the active line. You can use this line to indicate the list or entry
you want to select, to enter text, and to change the value in a setting.
The third line is used when a list is displayed to show either the next item in the list
(Figure 7), or the value in the first or only setting for the entry that is displayed
(Figure 8). When a value is displayed it is indented under the name of the entry to which
it applies. In Figure 8 the value indicates that the Screen Brightness is set to Dark.
The name of each soft function key represents the action that will take place when the
corresponding F1, F2 or F3 key on the front panel of the transceiver is pressed.
Figure 8: The front panel screen displaying a value
The front panel screen also displays information screens such as the channel screen in
the Channel List, and the time screen in the Control List.
NOTE
In the following example, you will need to log in as administrator to see
the Main Menu (see page 110, Logging into admin level from user level
and page 88, The Main Menu).
top line
active line
next item
soft function keys
top line
active line
value
