Preparing the 2110 SSB Transceiver for use
36 2110 SSB Transceiver Reference Manual
Connecting a battery to the transceiver
The battery is connected to the bottom of the transceiver. It is held in place by clips with
locking key latches (see Figure 6).

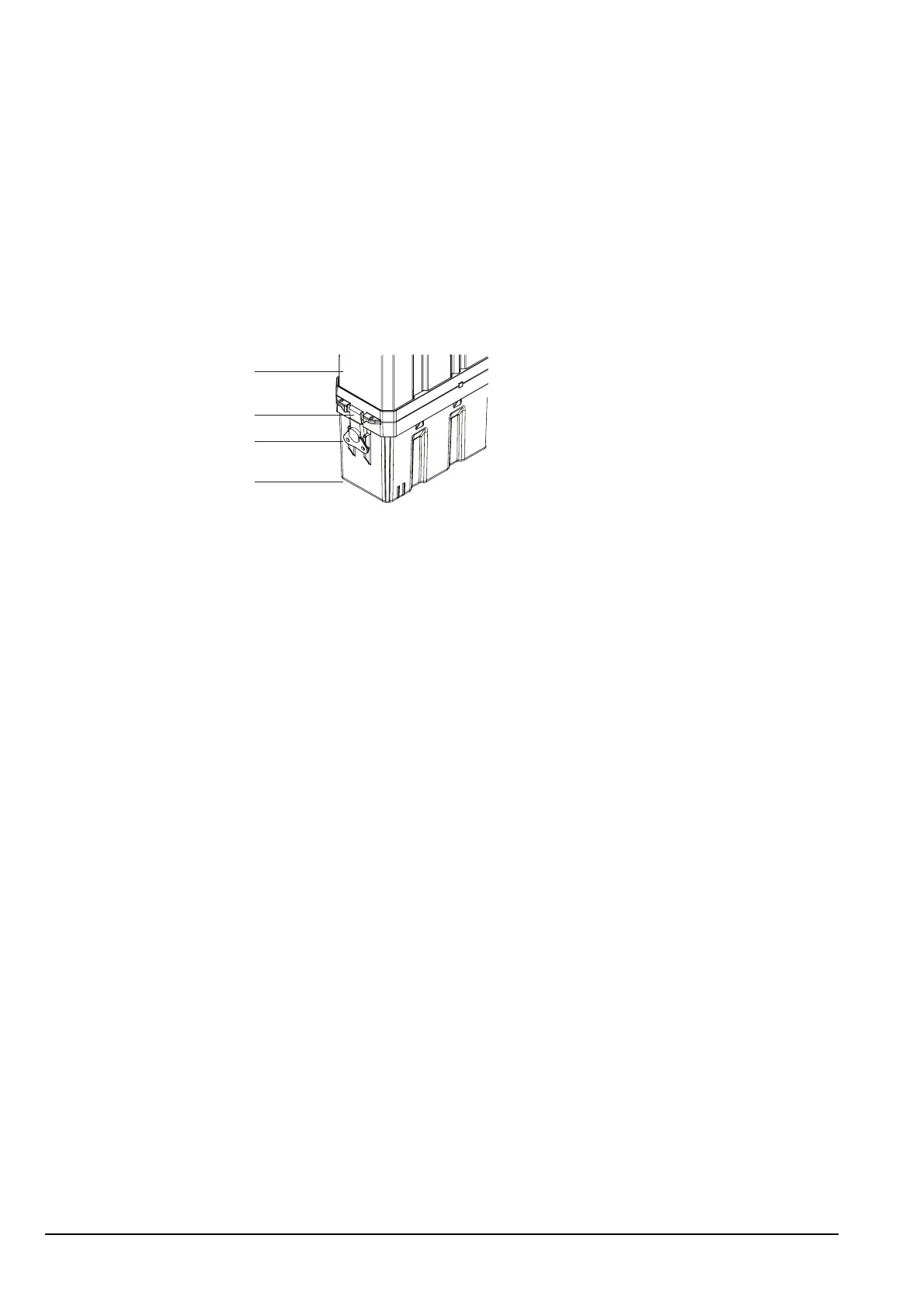

Figure 6: Transceiver with battery pack connected
Inserting the transceiver into a backpack
All backpacks come with adjustable straps that hold the transceiver firmly in position.
Some backpacks have an internal mounting frame.
To insert the transceiver into a backpack with an internal mounting frame:
1 Open the rear of the backpack to expose the mounting frame.
1 Push the transceiver between the foam mounts on the frame.
1 Secure the transceiver with the two adjustable straps.
1 Close the rear of the backpack.
To insert the transceiver into the soft backpack:
1 Slide the transceiver into the backpack.
1 Secure the transceiver with the adjustable strap on the outside of the backpack.
NOTE
The battery connector on the base of the transceiver is on the same side of
the transceiver as the antenna connectors on the front panel.
key
clip
transceiver
battery pack
