coM.sat ISDN Basic

created: page: file:

16/01/09 14 coMsat ISDN Basic Manual V2.7.doc

Note Protection Mark according to DIN 34!

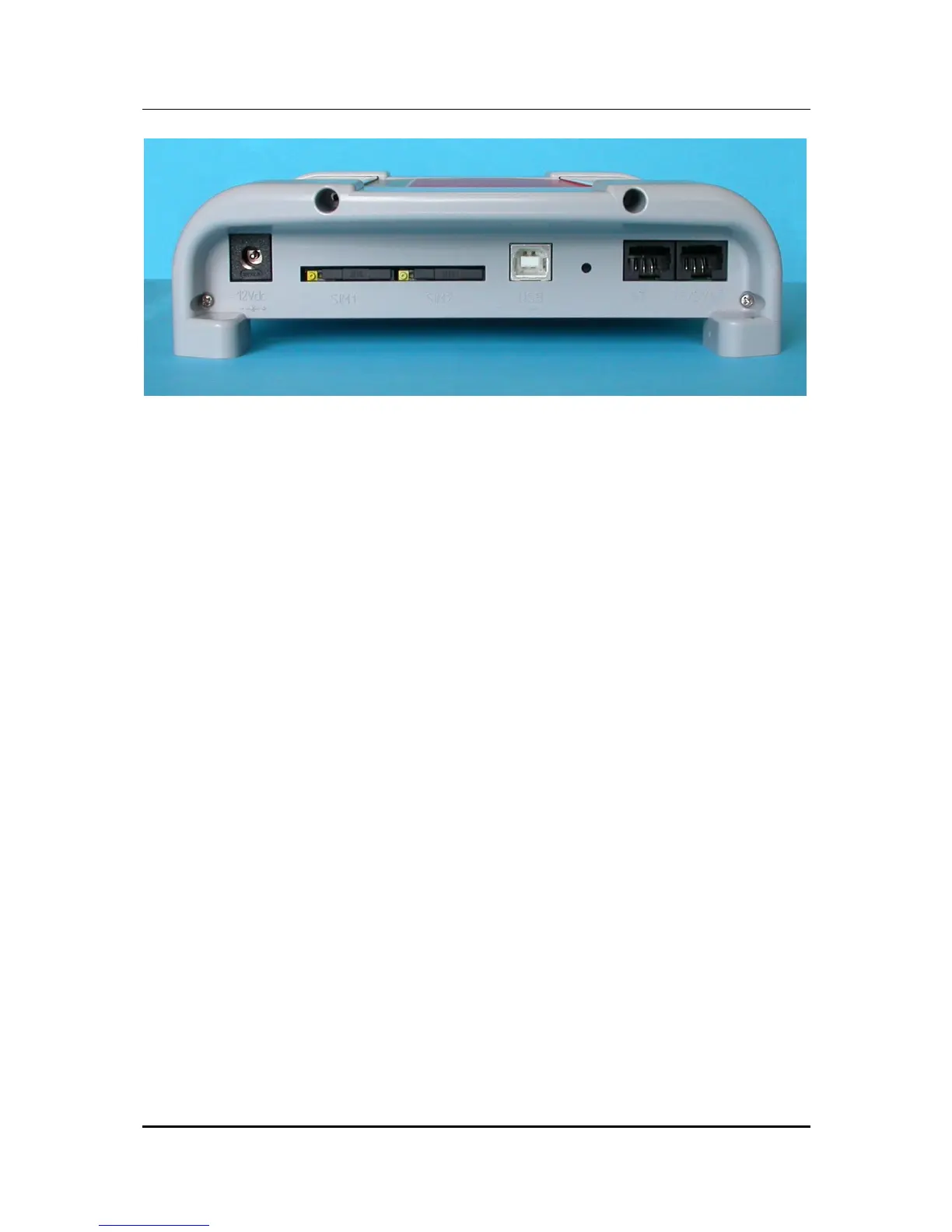

Figure 2: Front side of the coM.sat ISDN Basic

On the front side are located:

• the connector for the power supply

• 2 SIM card readers

• the connector for the USB port (USB-B)

• the jack for the NT connection (RJ-45)

• the jack for the TE connection or the synchronisation (RJ45)
