coM.sat ISDN Basic User Manual

coM.sat ISDN Basic
created: page: file:
16/01/09 91 coMsat ISDN Basic Manual V2.7.doc
Note Protection Mark according to DIN 34!

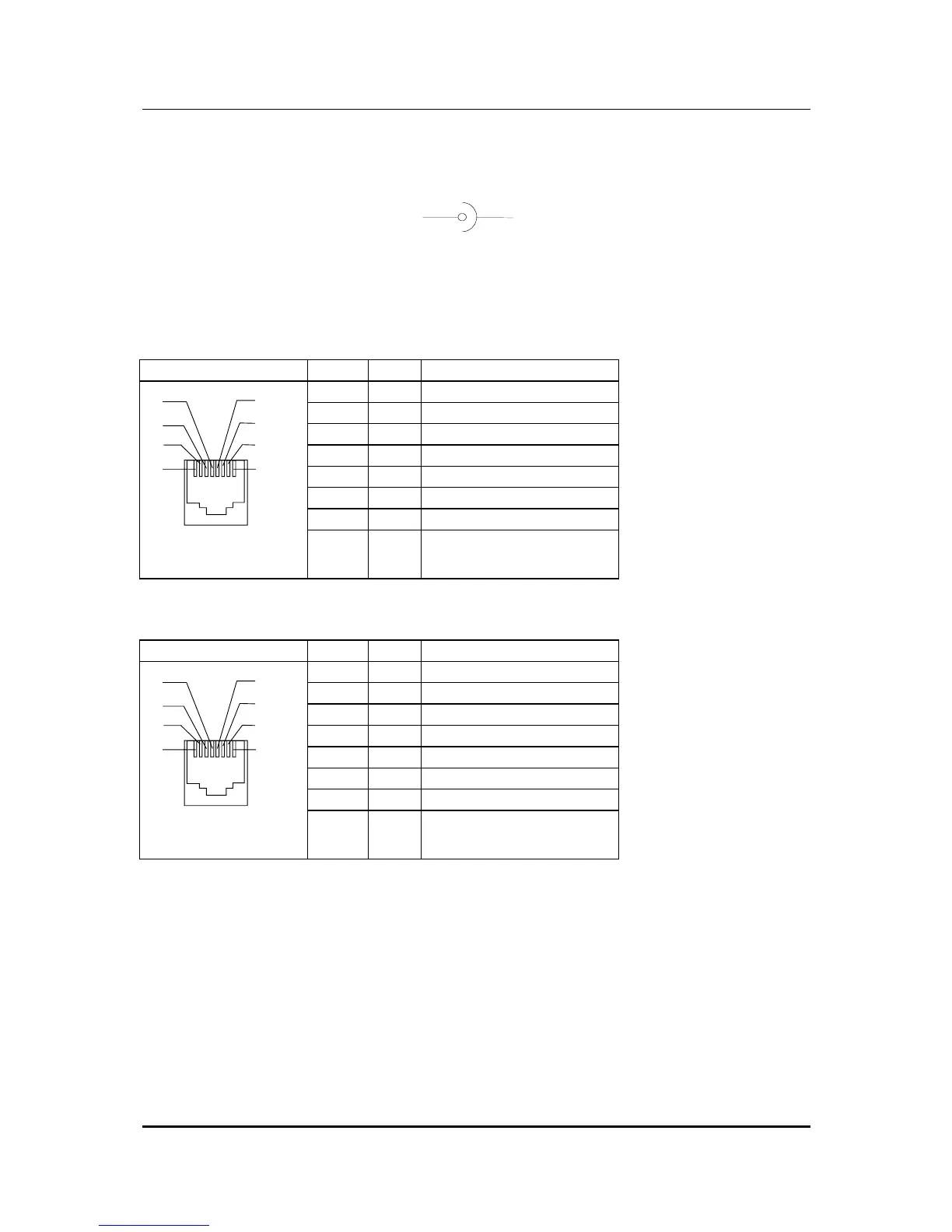

6.1 Connector assignments
+
GND
Electricity supply:
Central carrier wire: +10..12V
External conductor: GND
NT Connection:
NT PIN EIA Description
1 NC No Connection
2 NC No Connection
3 Rx+ Receive Data +
4 Tx+ Transmit Data +
5 Tx- Transmit Data -
6 Rx- Receive Data -
7 NC No Connection
8
7
6 3
2
1
5
4
8 NC No Connection
TE/SYNC Connection:
Sync PIN EIA Description
1 NC No Connection
2 NC No Connection
3 Tx+ Transmit Data +
4 Rx+ Receive Data +
5 Rx- Receive Data -
6 Tx- Transmit Data -
7 NC No Connection
8
7
6 3
2
1
5
4
8 NC No Connection
