3.3.3 GSM/UMTS Configuration

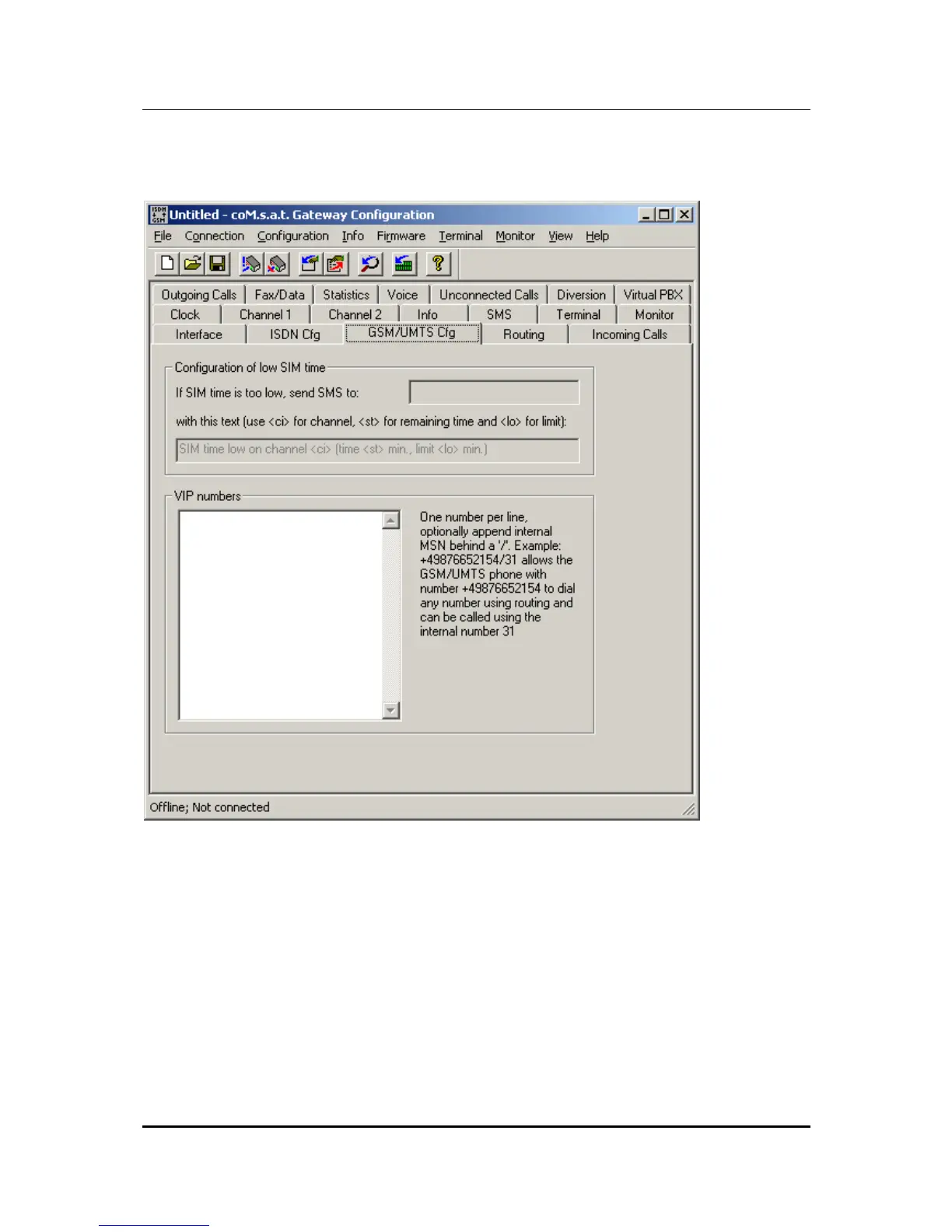

Figure 9: GSM/UMTS Configuration
This page is used to configure GSM/UMTS specific options.
The coM.sat ISDN Basic implements a time based supervision of prepaid credits.
The credits themselves are dynamically programmed using the command “Set
Prepaid Time“ in menu “Info“, which is described in chapter 3.3.15. Each channel is
programmed a separate threshold, see chapter 3.3.14. If the credit falls below that
threshold, the channel is not used anymore. The GSM configuration on this page
configures additional behaviour in this case.
A GSM phone number can be programmed which shall receive an SMS if the credit
becomes low. If no number is programmed, no SMS is sent. If a number is
