coM.sat ISDN Basic
created: page: file:
16/01/09 59 coMsat ISDN Basic Manual V2.7.doc
Note Protection Mark according to DIN 34!
3.3.15 Info

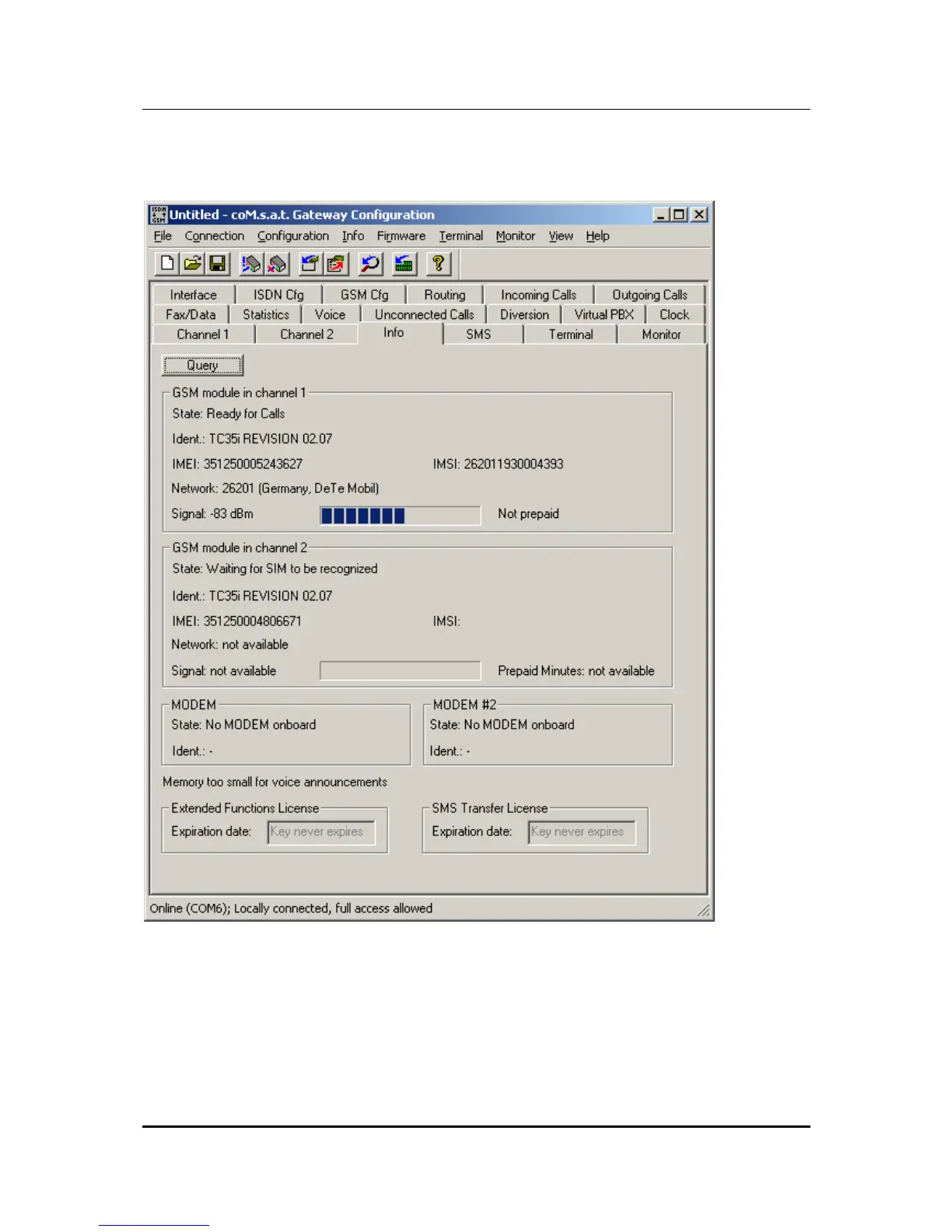

Figure 22: Module information
The state of the GSM modules which have been installed in the device are queried
via the “Info“ card file. The GSM modules’ current state, firmware revision, IMEI, as
well as the IMSI of the attached SIM card and the current field strength of the
antennas used at the installation site are reported. The currently available credit of
prepaid SIM cards is also displayed. Since there is no modem in the ISDN Basic,
both are always reported as “No MODEM onboard”.
