InteliLite4 AMF20 Global Guide
149

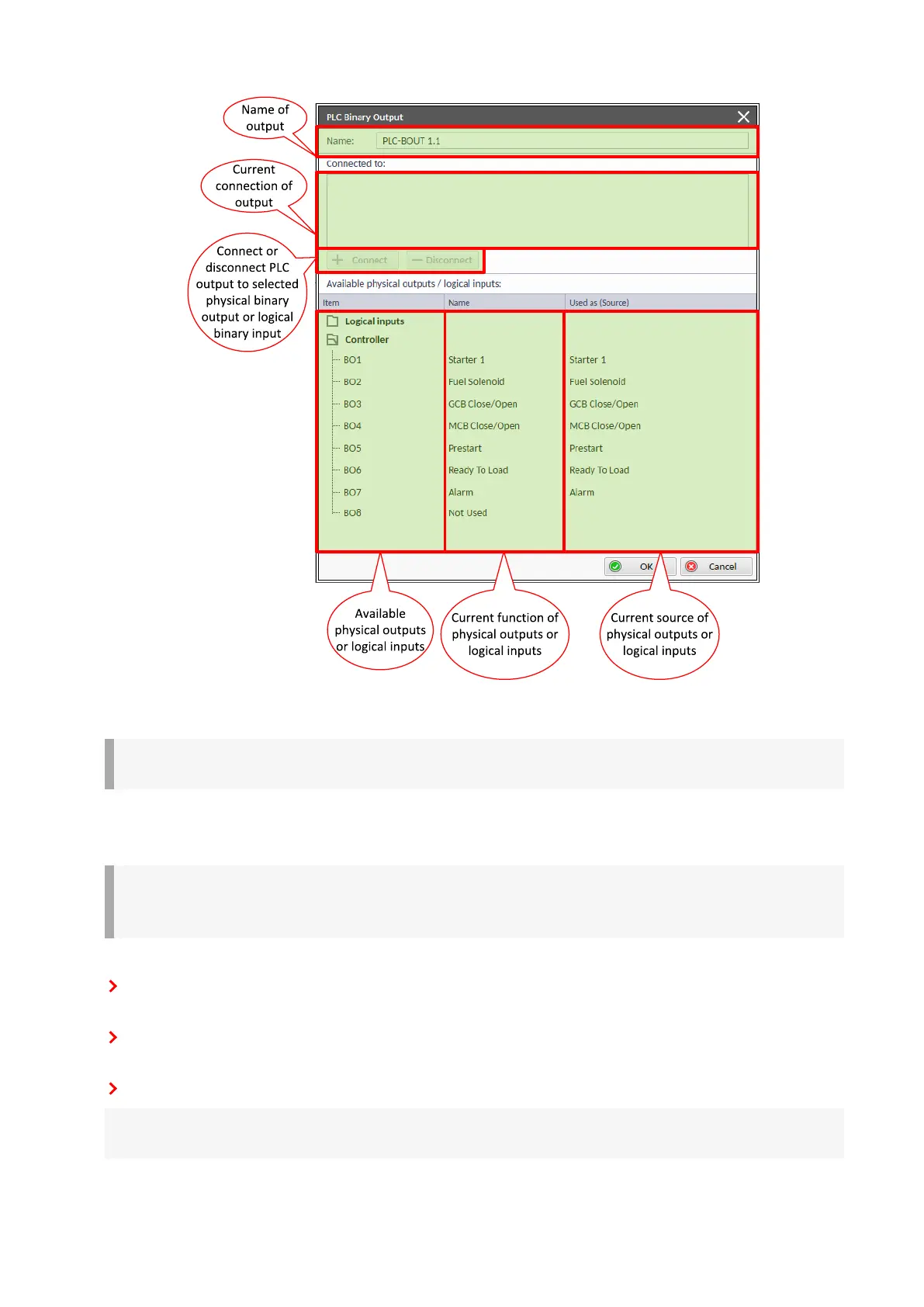

Image 5.42 PLC outputs
IMPORTANT: It is necessary to click on Connect button after selecting the output. Otherwise PLC
output is not connected to output.
Creating wires
Wires can be created between PLC inputs and PLC blocks and between PLC blocks and PLC outputs.
IMPORTANT: Keep the order of starting and finishing connection points. Wires between inputs
and blocks have to start from inputs. Wires between blocks and outputs have to start from
blocks.
Follow the procedure below to create wire:
Situate the mouse pointer over the starting point of the wire. If the area under the mouse pointer is a
connection point, the pointer will change color (fill of pointer will be white).
Press and hold the left mouse button and drag the wire to the destination of required connection point. If
you point over a valid connection point, the connection point will be marked with a red circle.
Release the left mouse button to create a wire between the two points. The wire is routed automatically.
Note: It is possible to make connection only between the outputs and inputs with the same type of value
(binary or analog). Binary values are marked by black pointer, analog values are marked with green pointer.
