InteliLite4 AMF20 Global Guide
150
Note: To delete wire just click on it and press the Delete button. Also the Delete selection function can be
used.

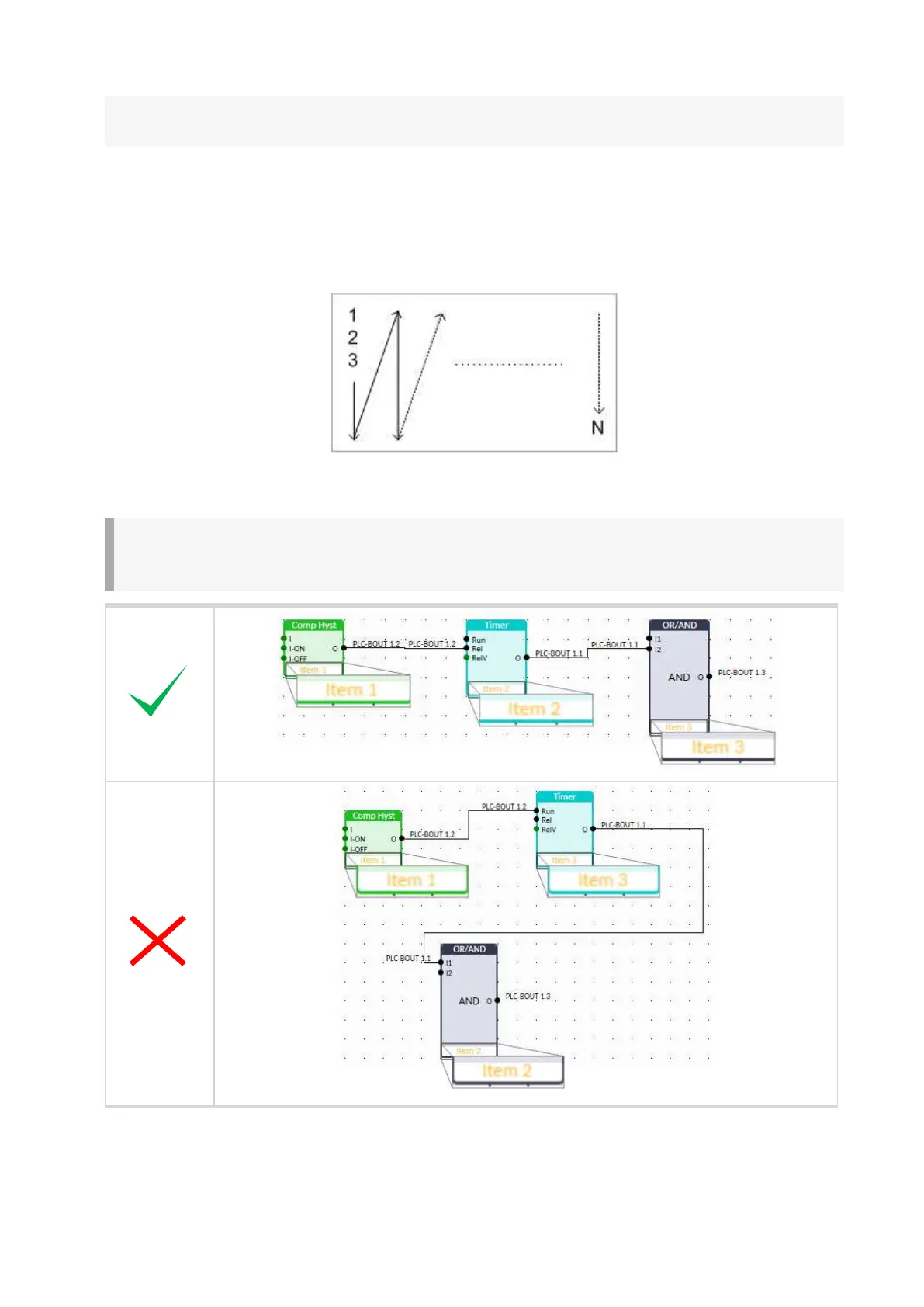

PLC logic execution rules
The PLC program is executed every 100ms. The blocks are executed in order according to block numbers
(item numbers), which are indicated in each block. Block numbers are assigned automatically according to
their position on sheet.
Image 5.43 PLC execution logic
IMPORTANT: Please always check that the blocks are ordered correctly, especially if you use
direct feedbacks from outputs to inputs within one sheet. Wrong order may lead to incorrect
results!!!
