InteliLite4 AMF20 Global Guide
40

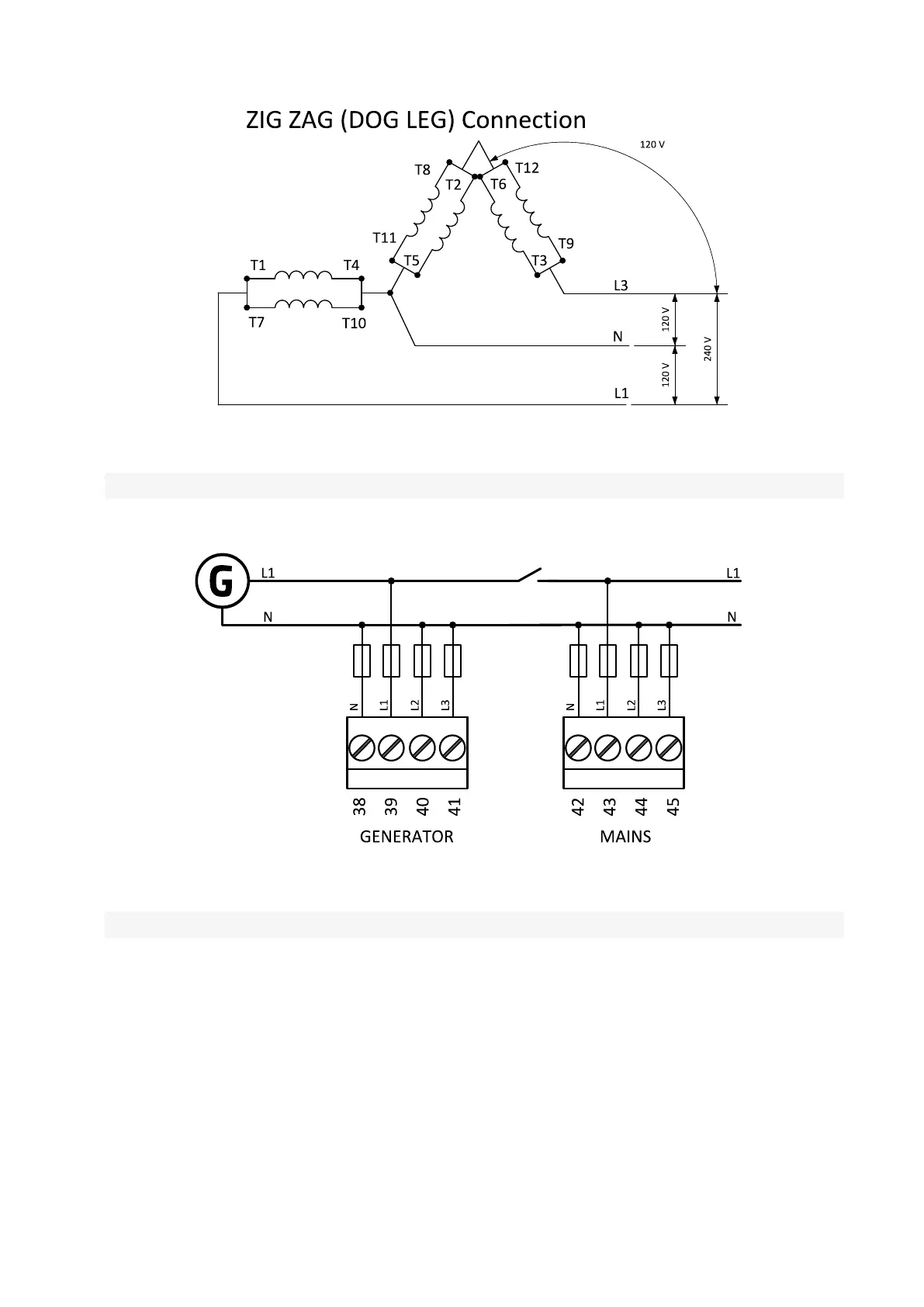

Image 4.23 Typical Split Phase generator wiring
Note: Connection type 120/240V 1-PHASE, Nominal Voltage SplitPhase (page 213).
Connection Type: Mono Phase
Image 4.24 Mono phase application
Note: Fuse on "N" wire is not obligatory but recommended.
