InteliLite4 AMF20 Global Guide
46

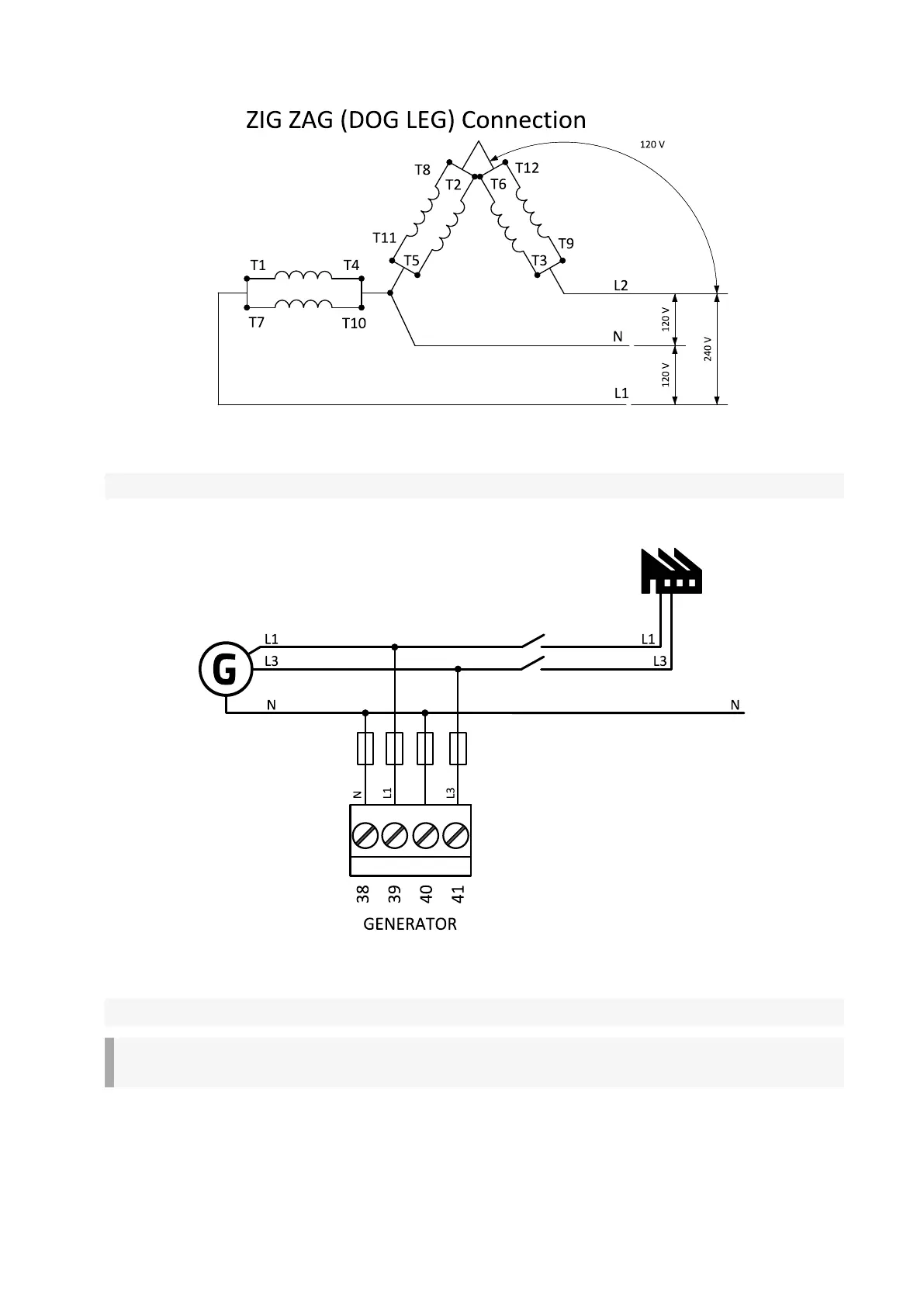

Image 4.35 Typical Split Phase generator wiring
Note: Connection type 120/240V 1-PHASE, Nominal Voltage SplitPhase (page 213).
Connection Type: SplPhL1L3
Image 4.36 Split phase L1L3 application
Note: Fuse on "N" wire is not obligatory but recommended.
IMPORTANT: The second phase of split phase connection is connected to the terminal, where the
third phase is normally connected.
