InteliLite4 AMF20 Global Guide
480
Related FW 1.3.0 Related applications AMF,MRS
Comm object 41
Description
The output controls the generator circuit breaker. Its state represents the breaker position requested by
the controller. The breaker must react within 5 seconds to a close or open command, otherwise an alarm
is issued.
Note: InteliLite 4 controller can work even without breaker feedbacks, in this case do not configure the
feedback to binary inputs.

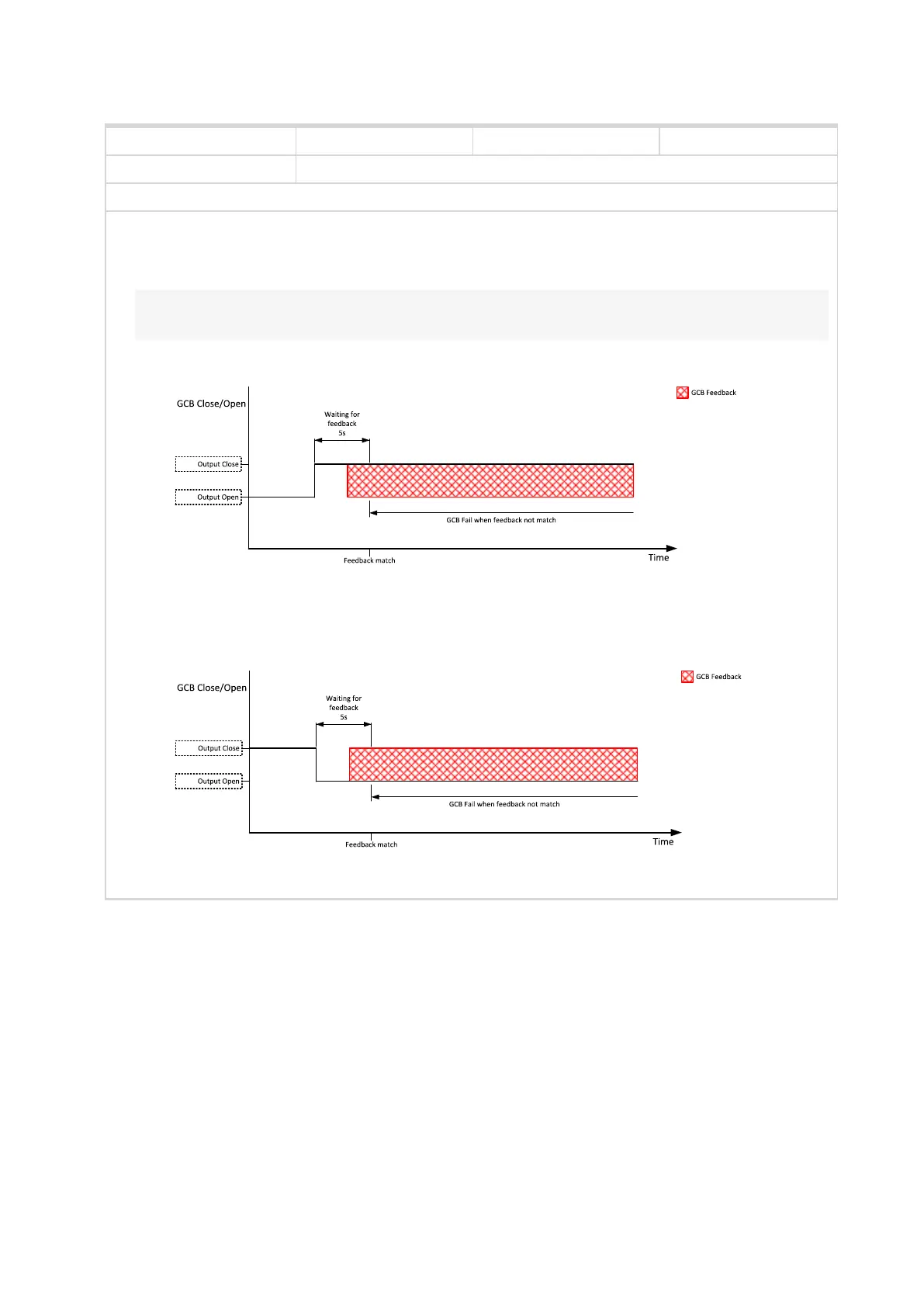

Image 8.35 GCB Close command
Image 8.36 GCB Open command
GCB Close/Open
6 back to Logical binary outputs alphabetically
