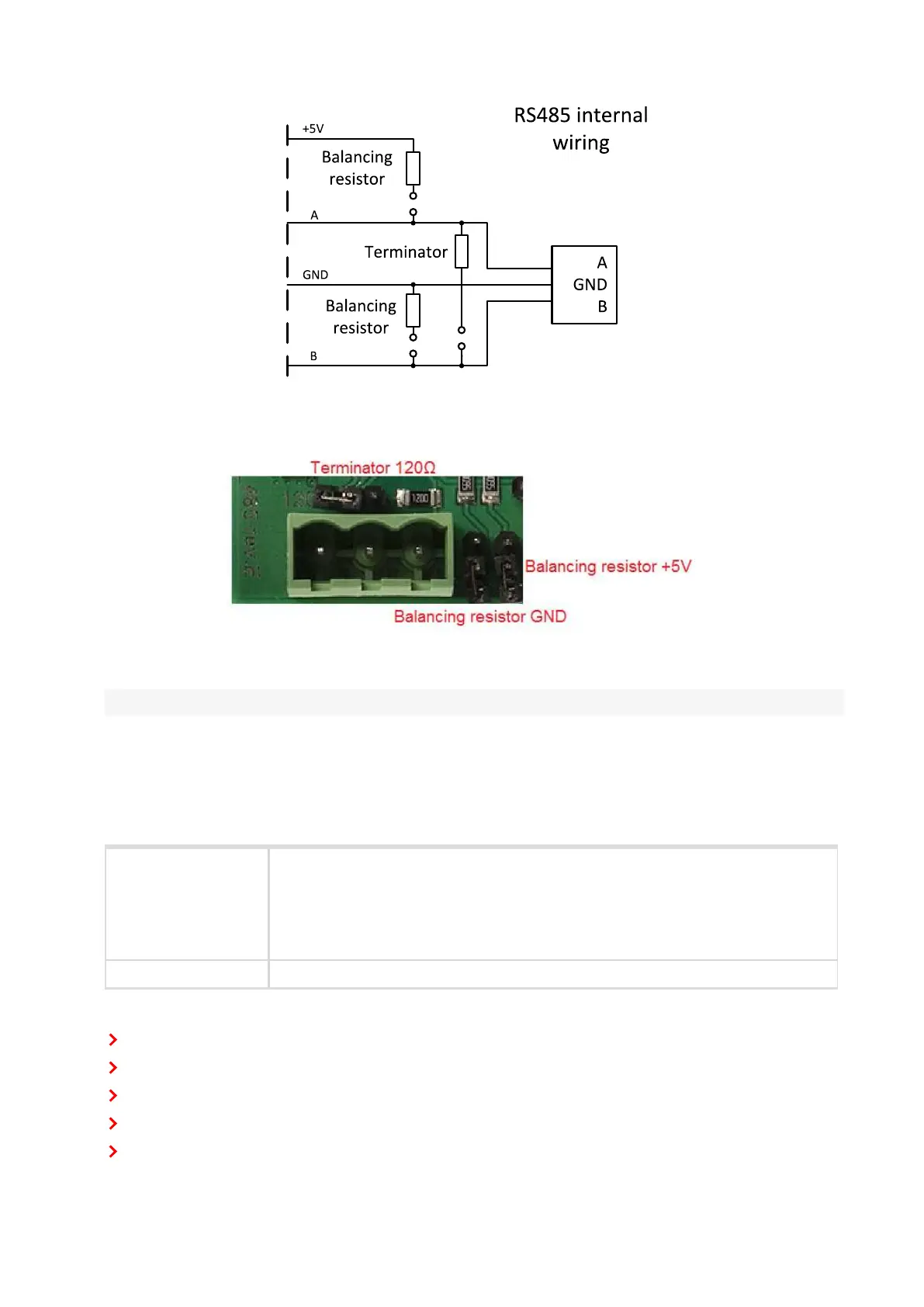

Image 8.75 Pinout of RS485 line
Image 8.76 Jumpers description
Note: Balancing resistors should both be closed at only one device in the whole RS485 network.
Maximal distance of line is 10m for RS232 line and 1200m for RS485 line.
Terminator 120Ω
Balancing resistor +5V
Power consumption
40 mA / 8 VDC
26 mA / 12 VDC
14 mA / 24 VDC
10 mA / 36 VDC
Isolation Galvanic separation
Technical data
Firmware upgrade
Download the newest FWof module from ComAp website (in form of PSI file or installation package)
Install package to computer or open PSI to install it into InteliConfig
Plug the module into the controller and power the controller on.
Open a connection with controller via InteliConfig
Go the menu Tools -> Firmware upgrade, select the Plug-in modules tab and select the appropriate
