firmware you want to program into the module (in InteliConfig).
Press the OK button to start upgrade of firmware.
The firmware update process may be performed via any kind of connection including connection via the same
module in which the firmware is to be updated. The connection is re-established again automatically when the
update process is finished.
CM3-Ethernet
CM3-Ethernet is a plug-in card with Ethernet 10/100 Mbit interface in RJ45 connector. It provides an interface
for connecting a PC through ethernet/internet network, for sending active e-mails and for integration of the
controller into a building management (MODBUS TCP and SNMP protocols).

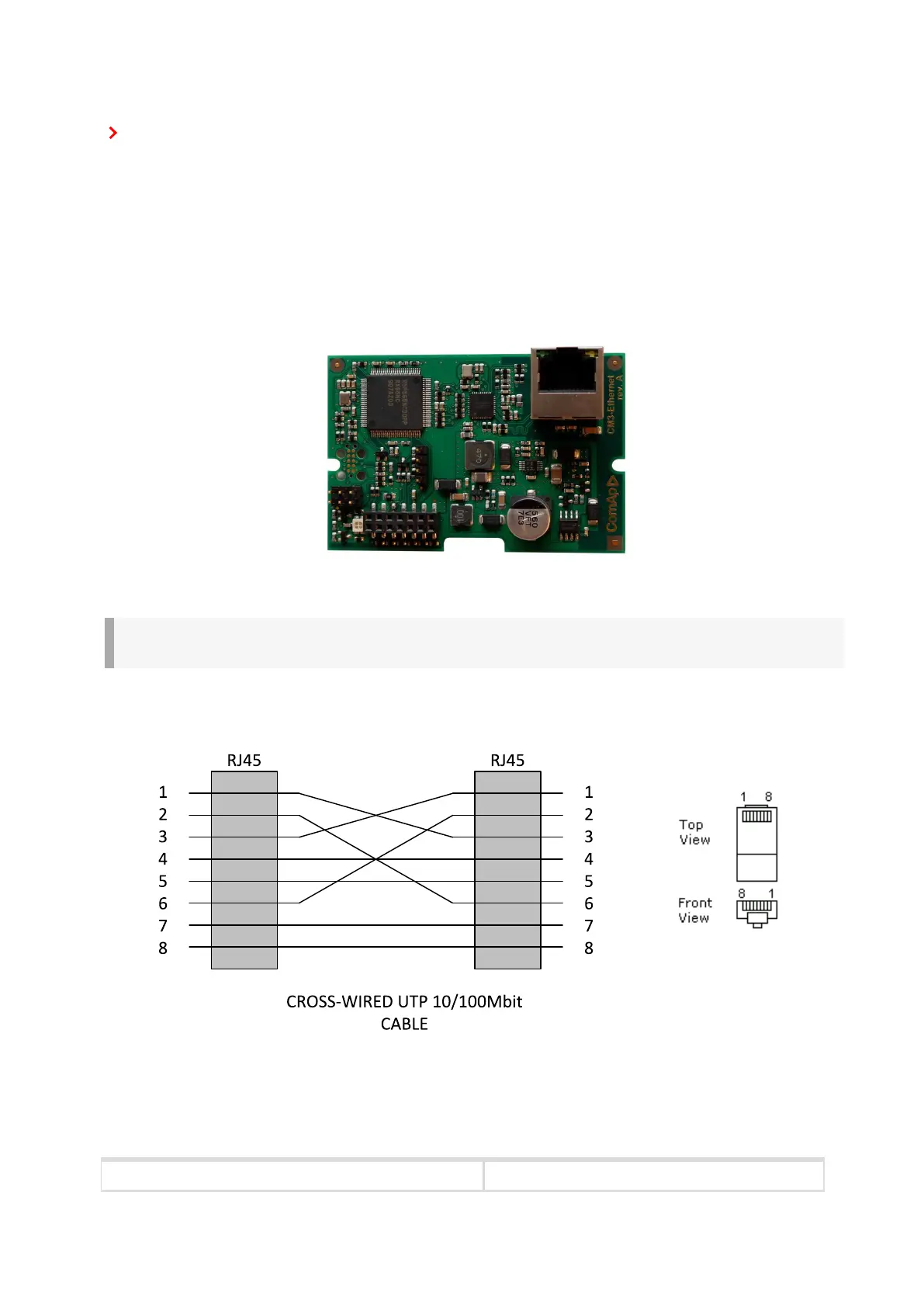

Image 8.77 CM3-Ethernet interface
IMPORTANT: Any manipulation with plug-in module shall be done with disconnected power
supply to controller.
Use an Ethernet UTP cable with a RJ45 connector for linking the module with your Ethernet network. The
module can also be connected directly to a PC using cross-wired UTP cable.
Image 8.78 Cross-wired cable
Technical data
Width × Height × Depth 73.8 × 50.3 × 21
