InteliLite4 AMF20 Global Guide
581
CM2-4G-GPS
CM2-4G-GPS plug-in module containing a GPS receiver and GSM/WCDMA/LTE modem which can work in
two modes of operation based on the settings in the setpoint Internet Connection (page 333).

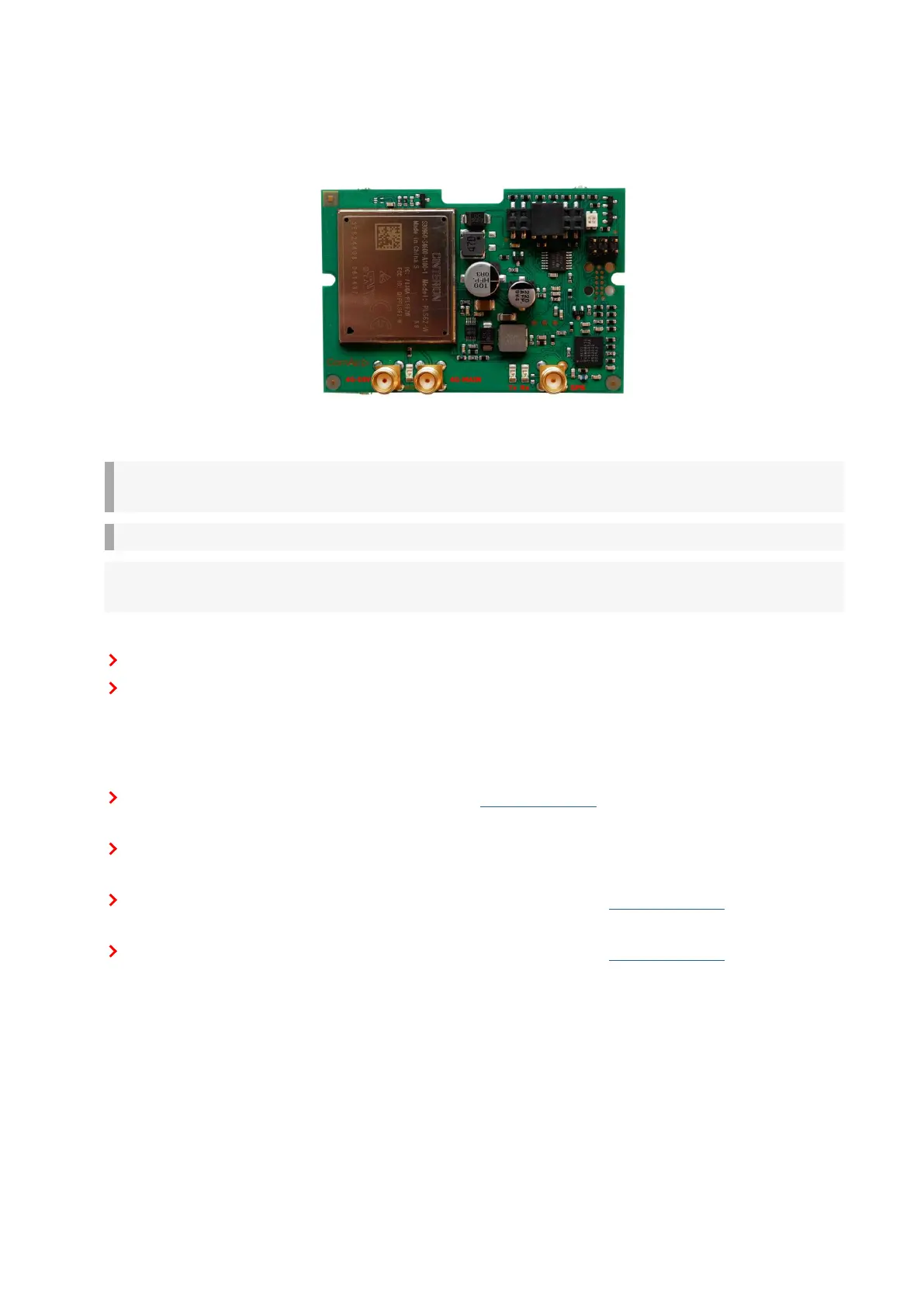

Image 8.79 CM2-4G-GPS module
IMPORTANT: Any manipulation with plug-in module shall be done with disconnected power
supply to controller.
IMPORTANT: Operating temperature of module is from -30°C to +75°C.
Note: Cellular data service must be enabled in your SIM card by your mobile operator for successful
operation.
CM2-4G-GPS module works with:
WebSupervisor – internet-based remote monitoring solution
AirGate – powerful connection technology to make internet access as simple as possible
CM2-4G-GPS module also works like GPS locator. Geo-fencing function can be used with this module.
4G module types
If the anthenna is CELLULAR only and has 1 cable (OT1A4GXXMCX), it is connected to the 4G-MAIN
connector.
If the anthenna is CELLULAR only and has 2 cables, cables are connected to the 4G-MAIN or 4G-DIV
connectors (does not matter which cable to which connector).
If the anthenna is a combination of CELLULAR/GPS and has 2 cables (OT1A4GGPSCX), then cable
"4G/LTE" needs to be connected to the 4G-MAIN connector and "GPS" cable to the GPS connector.
If the anthenna is a combination of CELLULAR/GPS and has 3 cables (OT2A4GGPSCX), then cables
"4G/LTE" need to be connected to the 4G-MAIN and 4G-DIV connectors (does not matter which cable to
which connector) and "GPS" cable to the GPS connector.
