Firmware upgrade
Download the newest FWof module from ComAp website (in form of PSI file or installation package)
Install package to computer or open PSI to install it into InteliConfig
Plug the module into the controller and power the controller on.
Open a connection with controller via InteliConfig
Go the menu Tools -> Firmware upgrade, select the Plug-in modules tab and select the appropriate
firmware you want to program into the module (in InteliConfig).
Press the OK button to start upgrade of firmware.
The firmware update process may be performed via any kind of connection including connection via the same
module in which the firmware is to be updated. The connection is re-established again automatically when the
update process is finished.
Extension modules
EM-BIO8-EFCP 585
EM-BIO8-EFCP
EM-BIO8-EFCP is optional plug-in card. Through this card, the controller can accommodate one AC current
(CT) measuring input (1A or 5A input) and up to 8 binary inputs or outputs. In InteliConfig PC configuration
tool it is possible to easily choose whether particular I/O will be binary input or output.

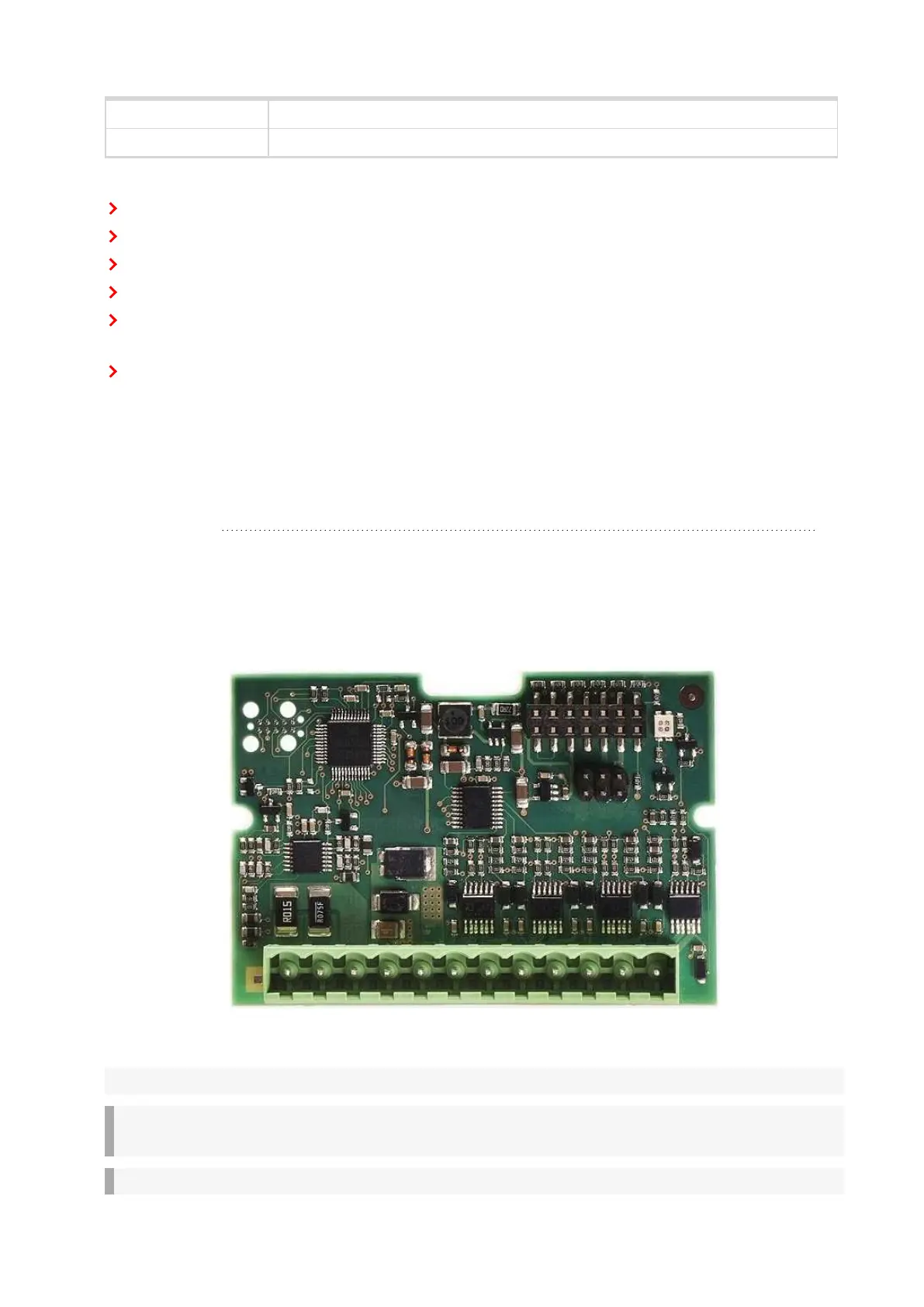

Image 8.82 EM-BIO8-EFCP interface
Note: This protection is active ONLY when Engine is running.
IMPORTANT: Any manipulation with plug-in module shall be done with disconnected power
supply to controller.
IMPORTANT: Earth fault current measurement is supported by controller only in slot A.
