InteliLite4
AMF20
Global
Guide
593

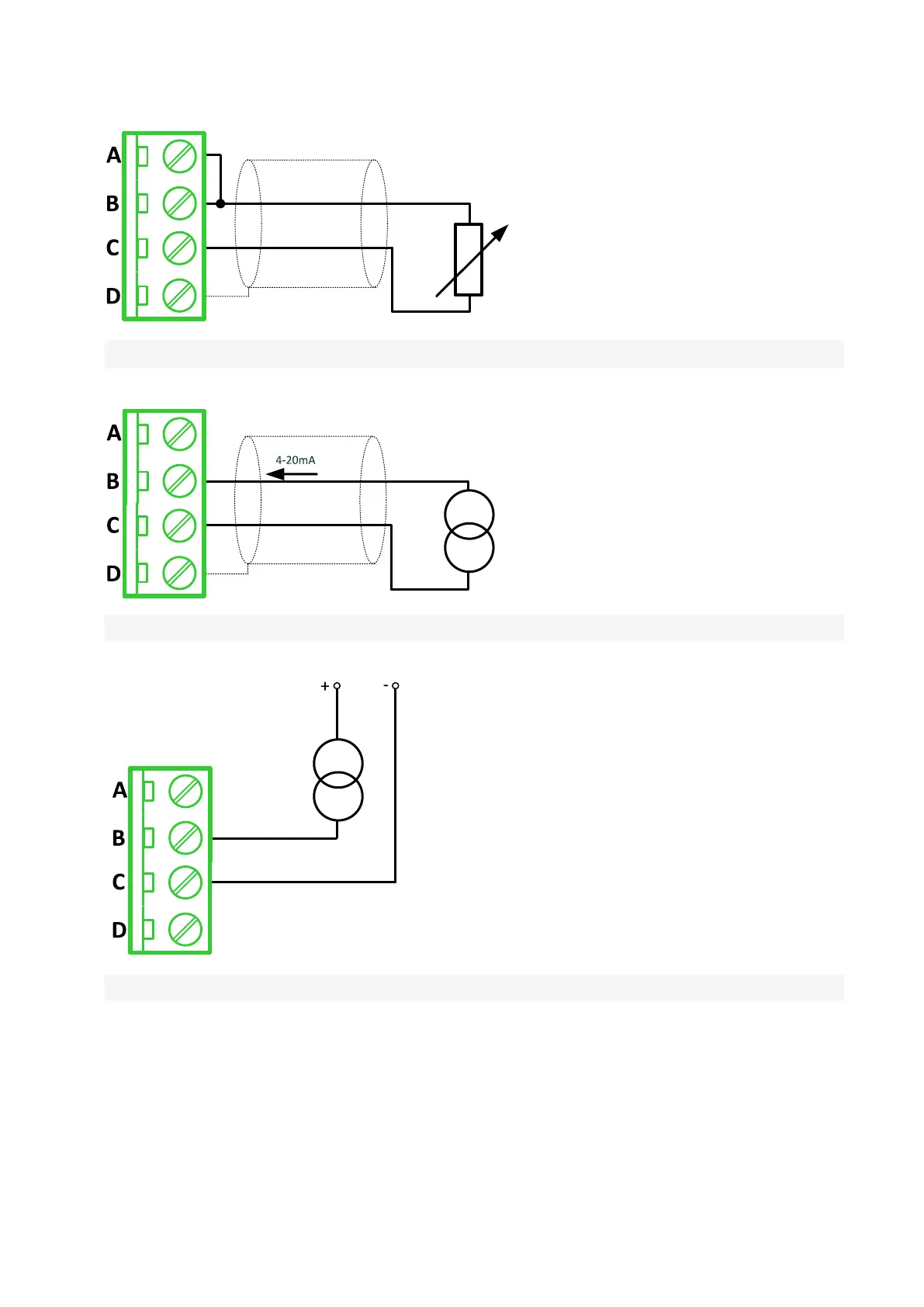

Resistance
sensor
–
2
wires
Note:
Ranges:
Pt100,
Pt1000,
Ni100,
Ni1000,
0-2400
Ω,
0-10
kΩ
Current
sensor
-
active
Note:
Ranges:
±20
mA,
4
–
20
mA
Current
sensor
-
passive
Note:
Ranges:
0
–
20
mA,
4
–
20
mA
