InteliLite4 AMF20 Global Guide
609

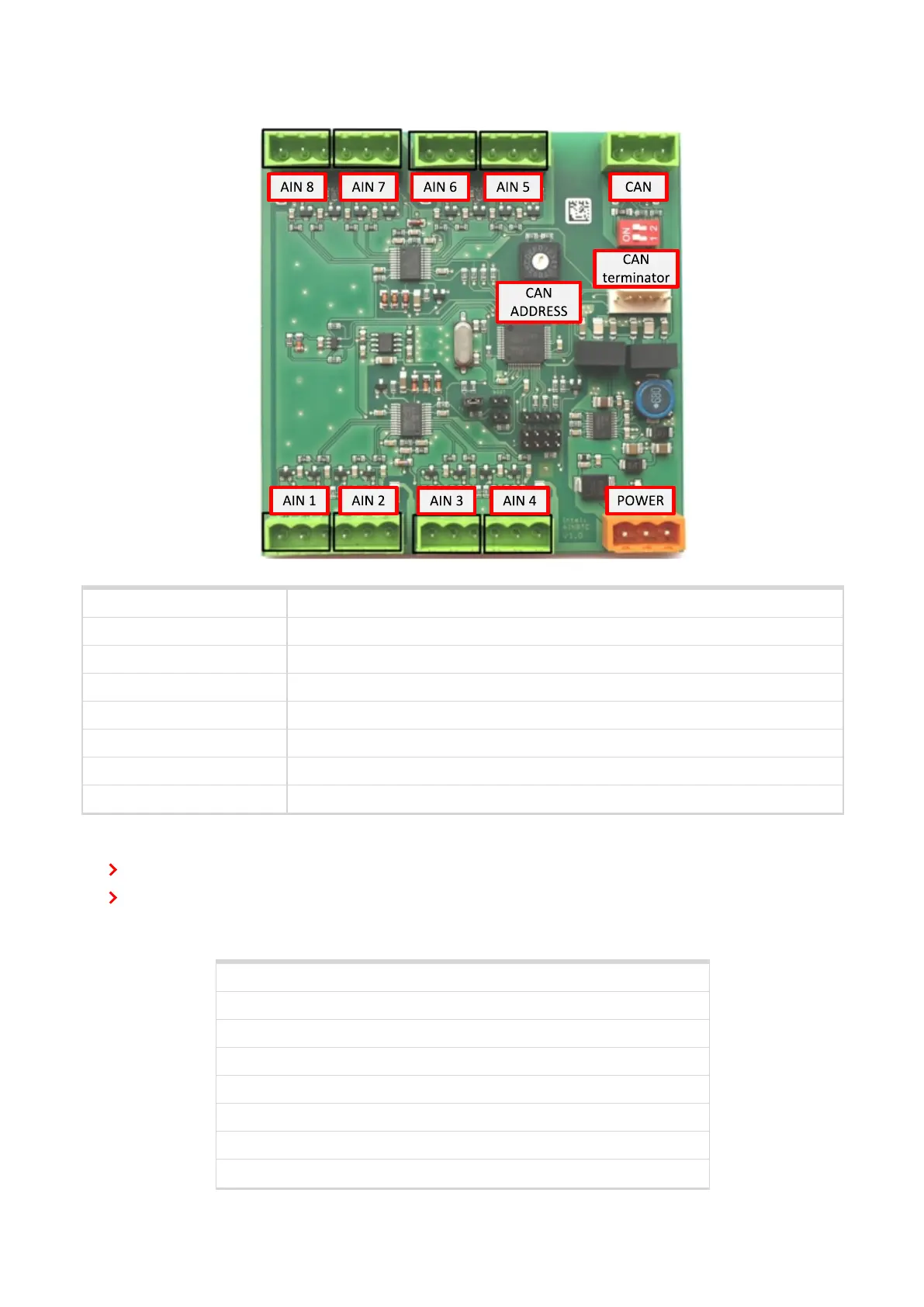

Terminals
ANALOG INPUT 8 analog Inputs
CAN CAN1 line
POWER Power supply
CAN LED Tx, Rx Indication transmitted or received data
Status LED LED indication of correct function
CAN terminator Terminating CAN resistor (active in position "ON")
TEST jumper Upgrade of SW
AT-LINK Connector for AT-LINK
Analog inputs
8 channels
can be configured as thermocouple sensors only
Supported sensors
Sensors
Thermocpl J [°C] (fix)
Thermocpl K [°C] (fix)
Thermocpl L [°C] (fix)
Thermocpl J [°F] (fix)
Thermocpl K [°F] (fix)
Thermocpl L [°F] (fix)
Thermocpl (nc) J [°C] (fix)
