Thermocpl (nc) K [°C] (fix)
Thermocpl (nc) L [°C] (fix)
Thermocpl (nc) J [°F] (fix)
Thermocpl (nc) K [°F] (fix)
Thermocpl (nc) L [°F] (fix)
Note: "nc" means not cold junction compensation (by external sensor). In this case is used internal
temperature sensor on the PCB
Address and DIP switch setting
Address configuration
DIP switch determines CAN address for analog inputs.
Programming firmware
Firmware is upgraded via AT-link (TTL). For programming it is necessary to close jumper TEST.
For programming FlashProg PC tool version 4.2 or higher must be used.
LED indication
LED status Description
Dark FW in module does not work correctly.
Flashing Module does not communicate with controller (in case non-zero CAN address)
Fast flashing Detection of CAN communication speed
Lights
Power supply is in the range and the communication between Inteli AIN8TC and
controller works properly.
Or power supply is in range and zero CAN address is set. (in case zero CAN
address module doesn't communicate with the controller)

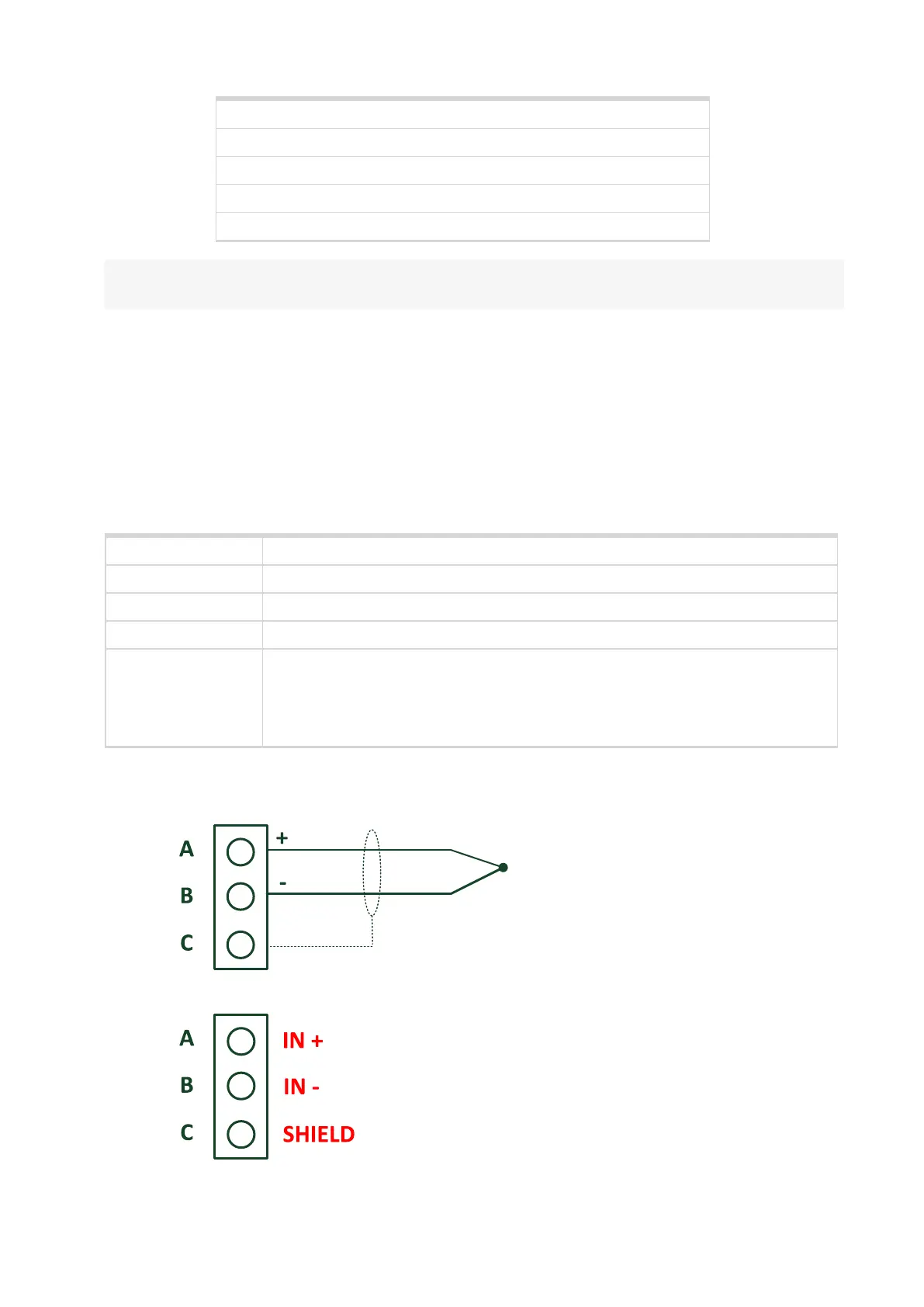

Wiring
Analog inputs
Terminator
