ComAp InteliLite AMF25 User Manual

InteliLite Global Guide
387
Setpoint group EM-BIO8-EFCP Related FW 1.9.0
Range [units] 0,03 .. 5,00 [A]
Default value 0,30 A Alternative config NO
Step 0,01 [A]
Comm object 11632 Related applications AMF, MRS
Config level Standard
Setpoint visibility Only if relevant module is installed
Description
Limit value for Earth Fault Current protection.
Earth Fault Sd
6 back to List of setpoints
Group: PLC
Setpoint group PLC Related FW 1.9.0
Range [units] Depends on resolution of value [-]
Default value
Depends on resolution of
value [-]
Alternative config NO
Step Depends on resolution of value [-]
Comm object 10440 Related applications AMF, MRS
Config level Standard
Setpoint visibility Only if relevant setpoint is used in PLC
Description
Adjustable value for input in PLC logic.
Configuration of setpoint:
Configuration is made via configuration PC tool InteliConfig

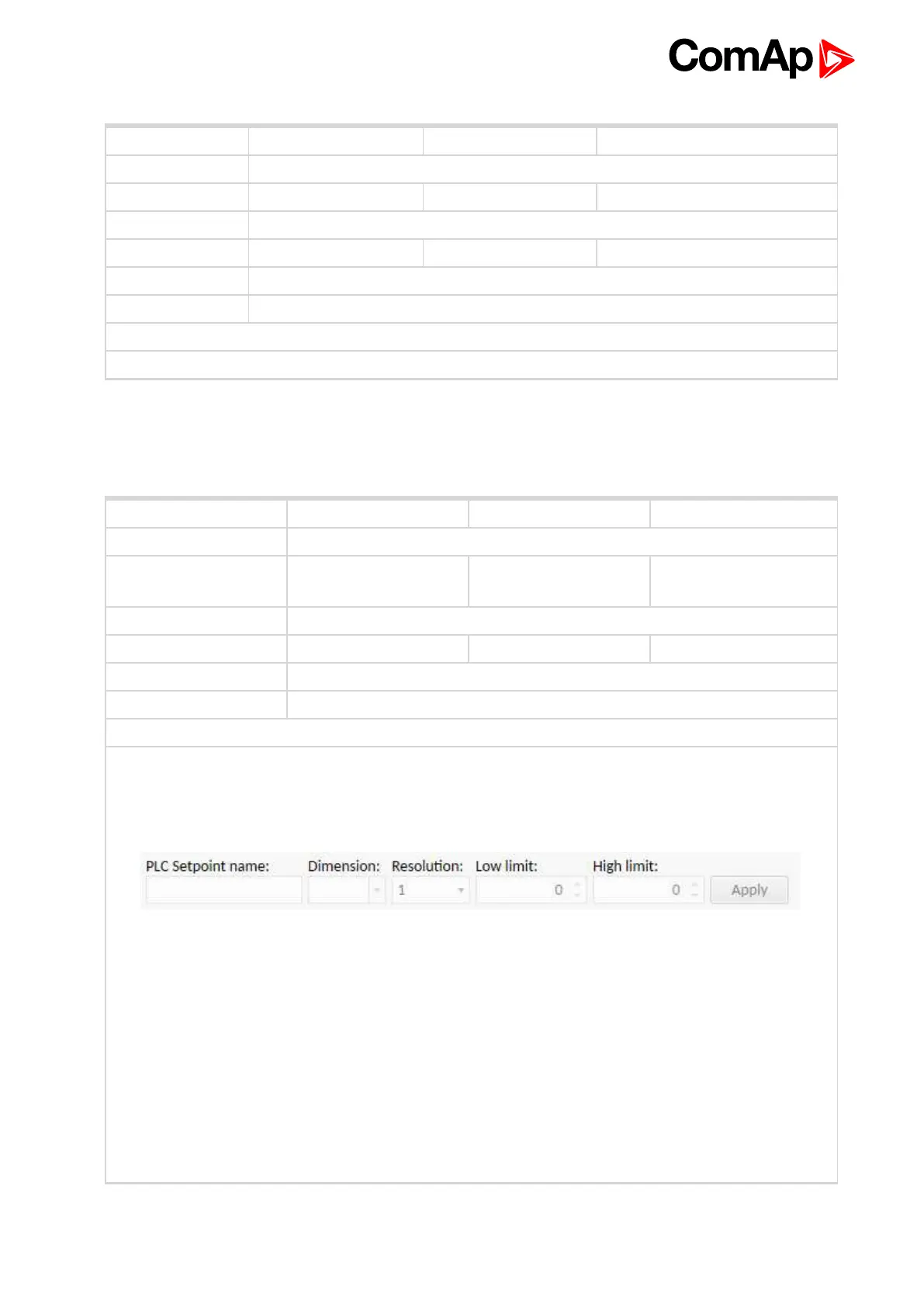

Image 8.64 Screen of configuration from InteliConfig
PLC Setpoint name Name of the setpoint (0..32 characters)
Dimension Dimension of value of the setpoint.
Resolution
Resolution of the value of the setpoint. Resolution adjust number of decimal places
in low and high limit.
Low limit
The lowest value of setpoint. Digit place of this value can be decrease or increase
by resolution of setpoint.
High limit
The highest value of setpoint. Digit place of this value can be decrease or increase
by resolution of setpoint.
PLC Setpoint 1
6 back to List of setpoints

ComAp InteliLite AMF25 Specifications

General

Inputs	8 binary inputs
Outputs	8 binary outputs
Power Supply	8-36 V DC
Communication	RS232, RS485
Operating Temperature	-20°C to +70°C
Supported Generators	Diesel, gas
Controller Type	Automatic Mains Failure Controller
Protection	IP65
