ComAp InteliLite AMF25 User Manual

InteliLite Global Guide
696
Blinking frequency Color
1 Hz
Green - everything is OK
Red - some of following errors occurred:
unplugged ethernet cable
module cannot connect to AirGate
module can not obtain IP address from DHCP
10 Hz
Green - firmware is currently being programmed
Red - no firmware present in the module
Status LED
Firmware upgrade
Download the newest FWof module from ComAp website (in form of PSI file or installation package)
Instal package to computer or open PSI to instal it into InteliConfig
Plug the module into the controller and power the controller on.
Open a connection with controller via InteliConfig
Go the menu Tools -> Firmware upgrade, select the Plug-in modules tab and select the appropriate firmware
you want to program into the module (in InteliConfig).
Press the OK button to start upgrade of firmware.
The firmware update process may be performed via any kind of connection including connection via the same
module in which the firmware is to be updated. The connection is reestablished again automatically when the
update process is finished.
CM-GPRS
CM-GPRS plug-in module is a GSM/GPRS modem which can works in two modes of operation based on the
settings in the setpoint Internet Connection (page 359).

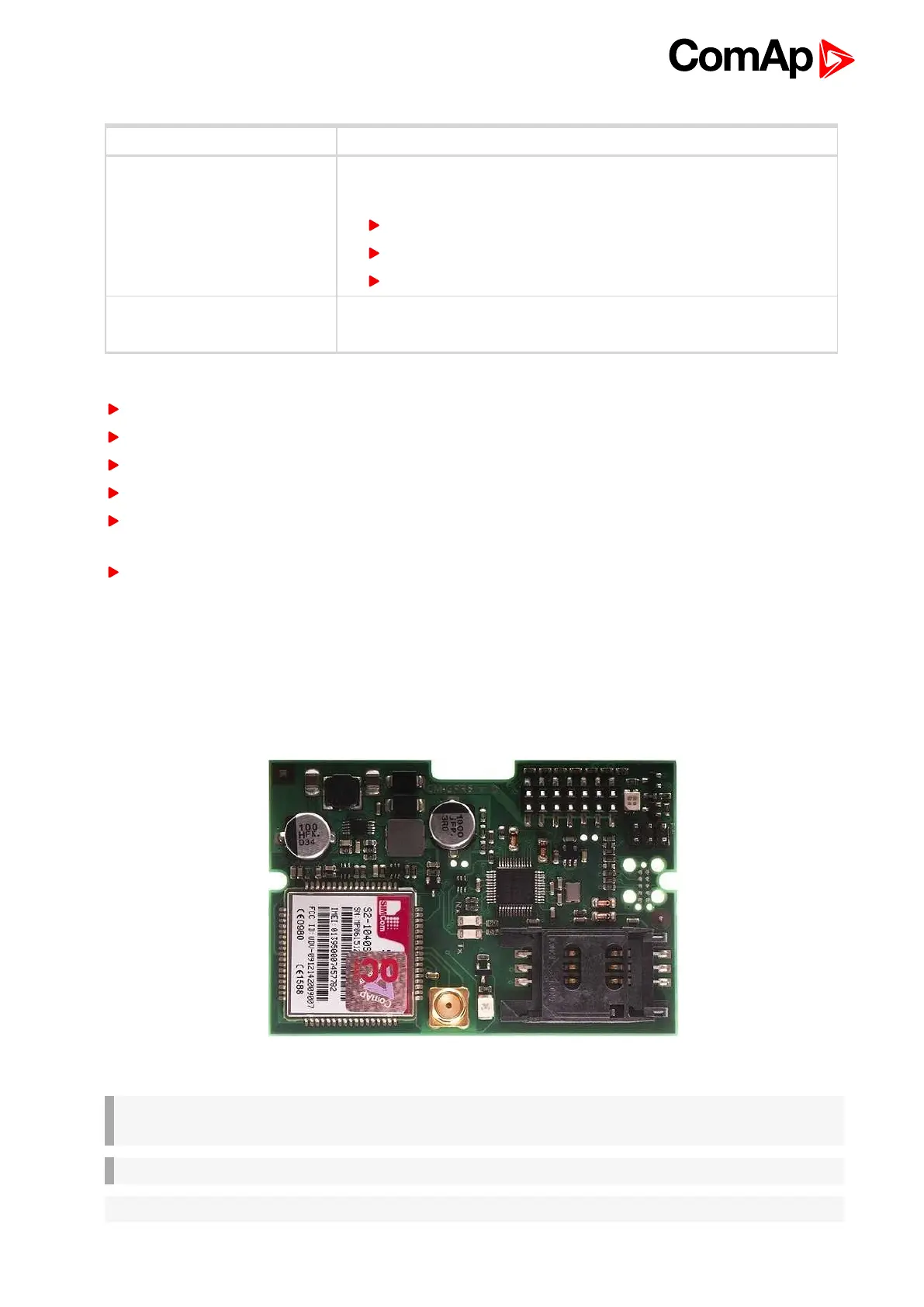

Image 9.20 CM-GPRS module
IMPORTANT: Any manipulation with plug-in module shall be done with disconnected power
supply to controller.
IMPORTANT: CM-4G-GPS and CM-GPRS modules can't be used in one controller in the same time.
Note: GPRS and CSD services must be provided by your GSM/GPRS operator for successful operation.

ComAp InteliLite AMF25 Specifications

General

Inputs	8 binary inputs
Outputs	8 binary outputs
Power Supply	8-36 V DC
Communication	RS232, RS485
Operating Temperature	-20°C to +70°C
Supported Generators	Diesel, gas
Controller Type	Automatic Mains Failure Controller
Protection	IP65
