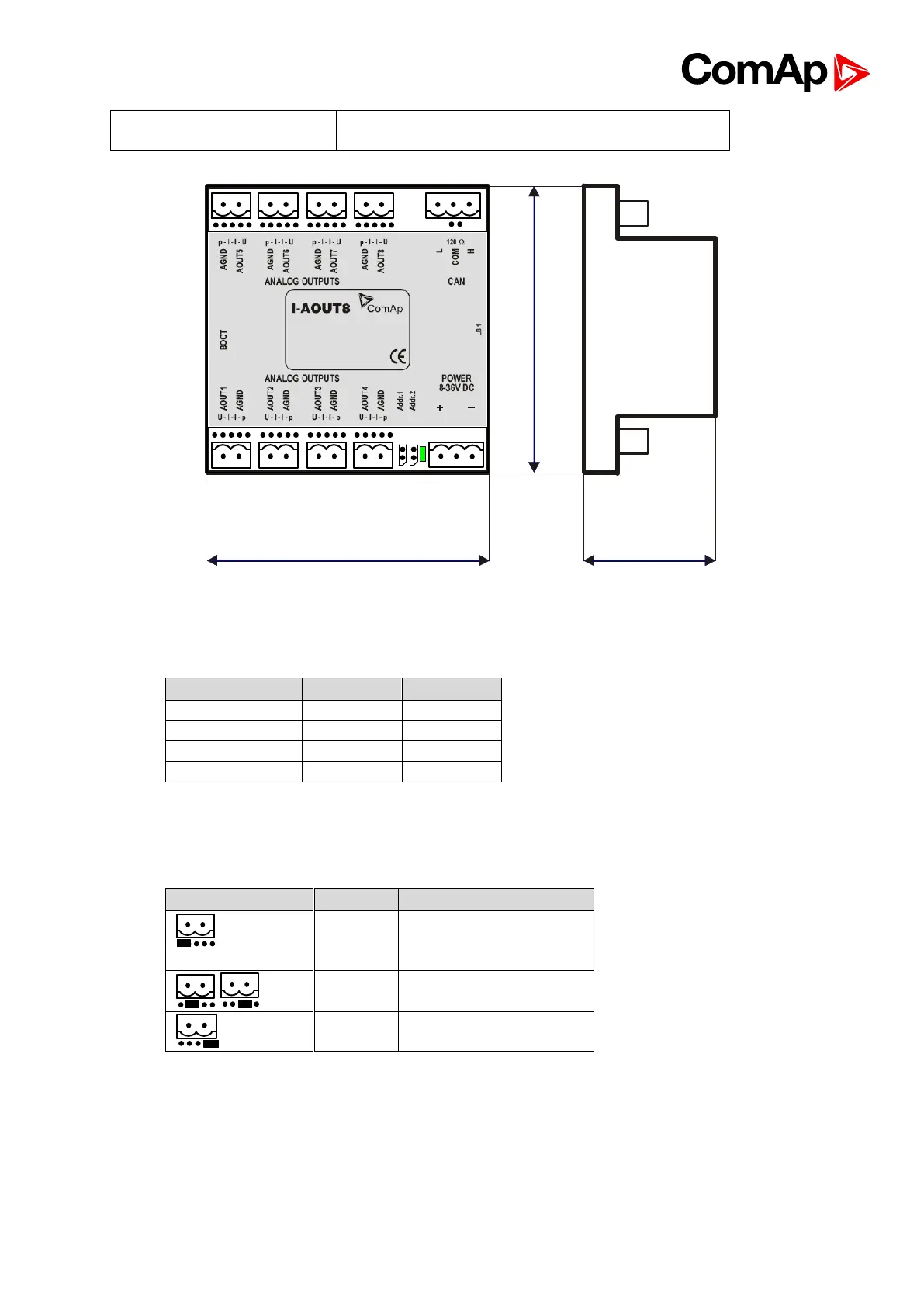

IGS-NT Installation Guide
34
Analog outputs
refreshment
Max. 300 ms
95 mm
(3,7´)
43 mm
(1,7´)
96 mm (3,8')
Power
supply
I-AOUT8
ComAp
HW:
SW:
+ 8-36 VDC
GND
AGND
AOUT5
AGND
AOUT6
AGND
AOUT7
AGND
AOUT8
ANALOG OUTPUTS
AOUT1
AGND
AOUT2
AGND
AOUT3
AGND
AOUT4
AGND
ANALOG OUTPUTS
CANL
CCOM
CANH
CAN
U - I - p
U - I - p
U - I - p
U - I - p
p - I - U
p - I - U
p - I - U
p - I - U
1 2 Pwr
120 ohm
5.3.14.2. Connection of Multiple Units
Up to four modules can be connected to one controller. Set module CAN address
corresponding to configuration according table below.
CAN Address
Jumper 1
Jumper 2
1
No
No
2
Yes
No
3
No
Yes
4
Yes
Yes
5.3.14.3. Analog Output Modification (U, I, PWM)
Follow the p-I-I-U symbols on the module sticker. There are two equivalent positions for mA
measuring.
AOUT jumper
Symbol
Function
p
Pwm
Pulse-Width-
Modulation
I
0 to 20 mA
U
0 to 10 VDC
