Comau Robotics Product Instruction
18
DETAILED TECHNICAL FEATURES OF THE ROBOT
On the Robot flange there is also a special information label, showing data useful for
correctly fixing the tool on the flange itself.
In particular, there is shown the maximum length of the screws to be used, depending
on the thickness of the flange of the tool to be fixed.

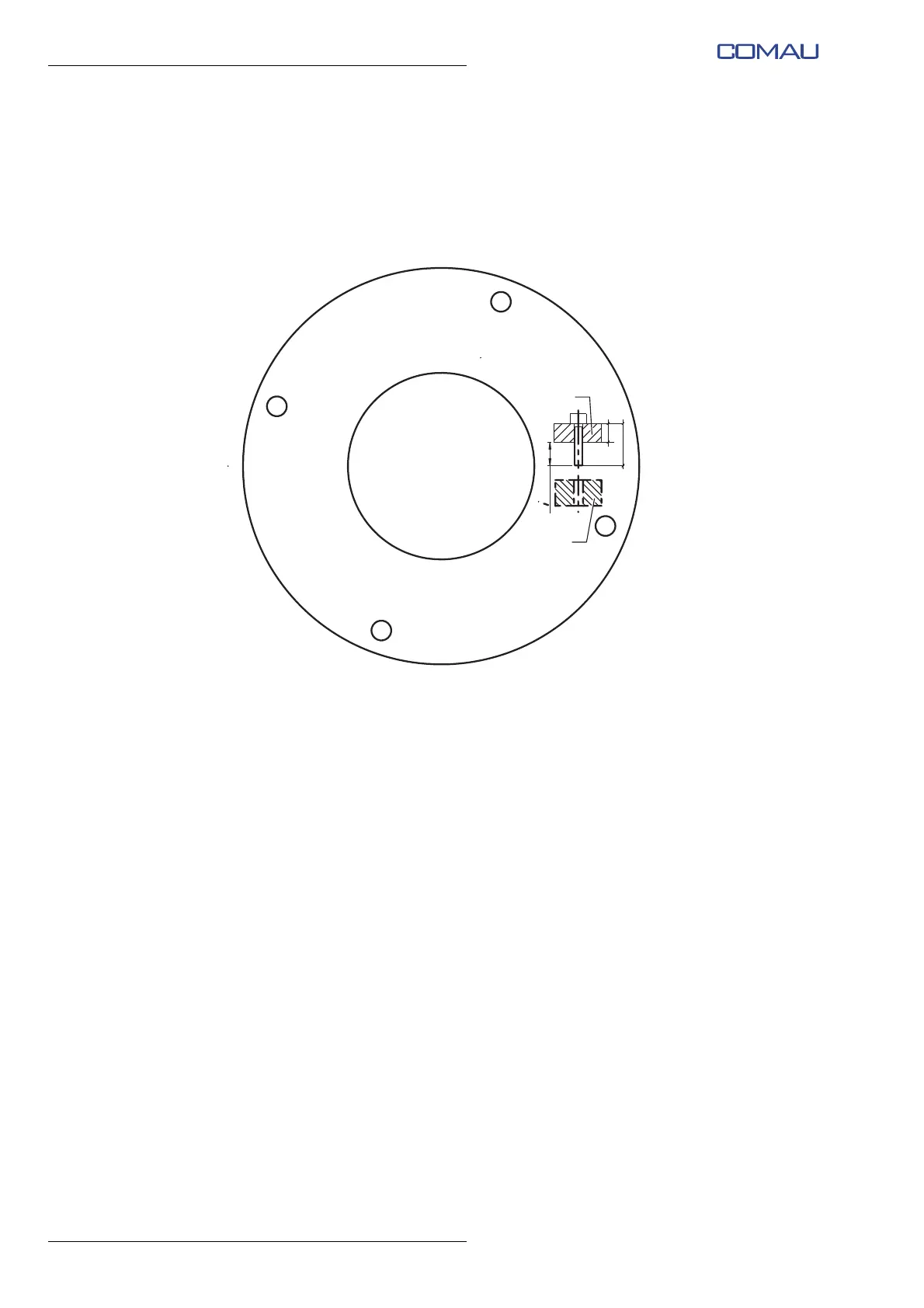

Fig. 2.6 - Information label on the Robot flange for tool fixing
MAX. 4 MM
Tool side
e.DO side
S
Lscrew MAX
FOR TOOL FIXING
DEPTH OF THREAD MAX 4 MM
= S+4mm
