ROBOT CONFIGURATION CUSTOMIZATION
45
Comau Robotics Product Instruction
3.2.5 e.DO Marker Holder assembly
– Packaging removal and preliminary checks
– Equipment and material required
– e.DO Marker Holder installation procedure
3.2.5.1 Packaging removal and preliminary checks
The e.DO Marker Holder packaging contains:
– q.ty 1 e.DO Marker Holder (pre-assembled) composed of:
• q.ty 1 base flange (CR82435501)
• q.ty 1 marker holder (CR82435502)
– q.ty 4 socket hex head screws M3x8 (with as many washers) for fixing the e.DO
Marker Holder directly to the e.DO flange
Remove the e.DO Marker Holder from the related packaging, proceeding as indicated
below:
– The e.DO Marker Holder is packed in a normal cardboard box with pressure lock;
no special tools are required to remove the packaging;
– remove the packaging paying particular attention not to damage the contents;
– make sure that all the components indicated in the previous Fig. 3.7 are present
inside the package;

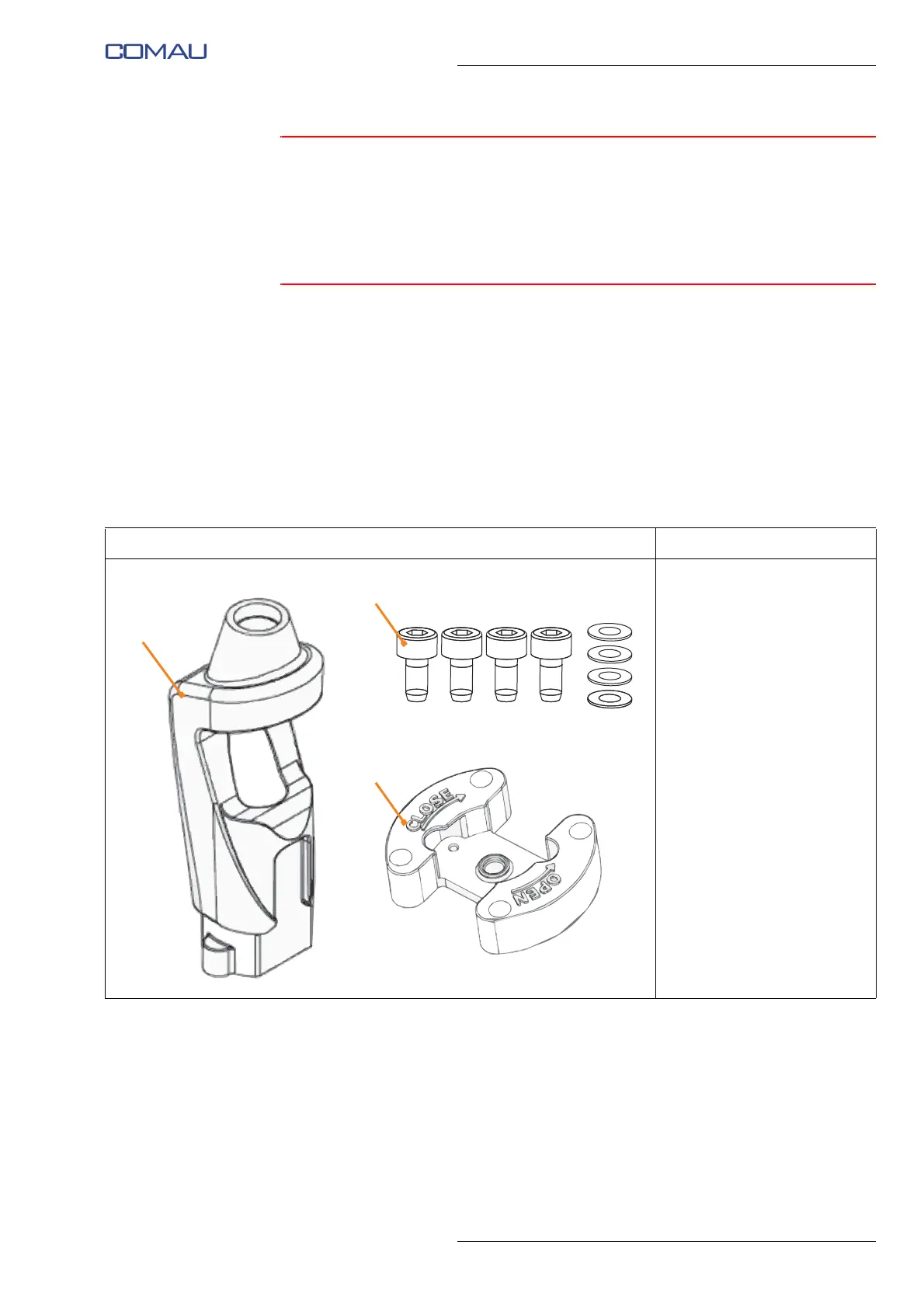

Fig. 3.13 - Content within the e.DO Marker Holder packaging
View Description
–A: marker holder
–B: base flange
–C: Socket hex head
screws M3x8 and
washers (q.ty 4+4)
