DETAILED TECHNICAL FEATURES OF THE ROBOT
17
Comau Robotics Product Instruction
2.2 Robot wrist features
The following drawings and graphs show the main Robot technical features:
– Diagram of holes on Robot flange for tool fixing
– Wrist loads
2.2.1 Diagram of holes on Robot flange for tool fixing

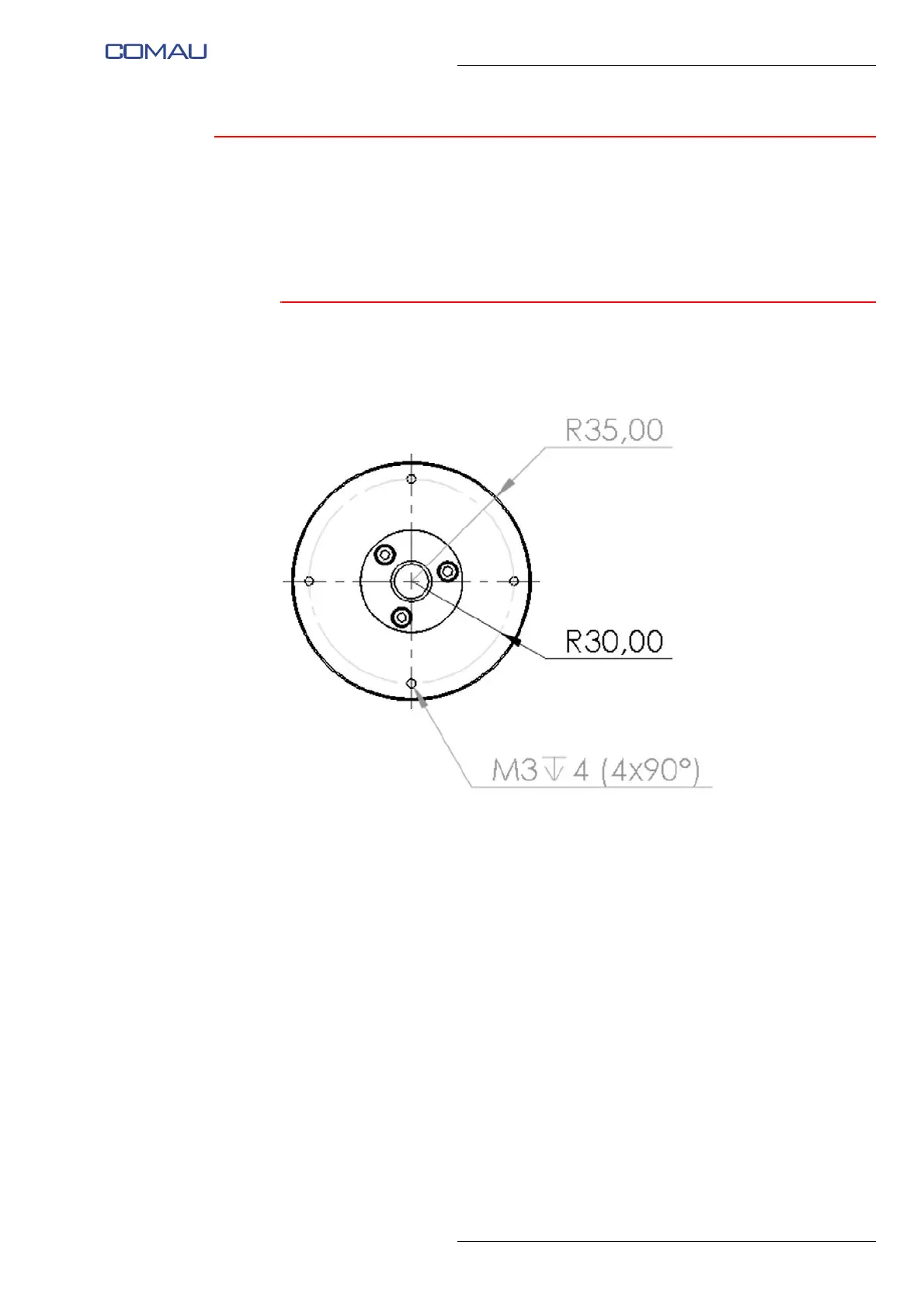

Fig. 2.5 - Diagram of holes on Robot flange for tool fixing
Dimensions in mm
