ROBOT CONFIGURATION CUSTOMIZATION
3.2.2 Connection of any interlocking devices associated with
guards
The Robot is arranged for connection to any interlocking devices (2 voltage-free
contacts, normally closed) associated with guards through “Fence” input on a special
connector. The “Fence” input opening makes the Robot to stop safely. If not used, the
“Fence” input must be closed again with a special cap connector. The following figure
shows the diagram of the “Fence” input connection.

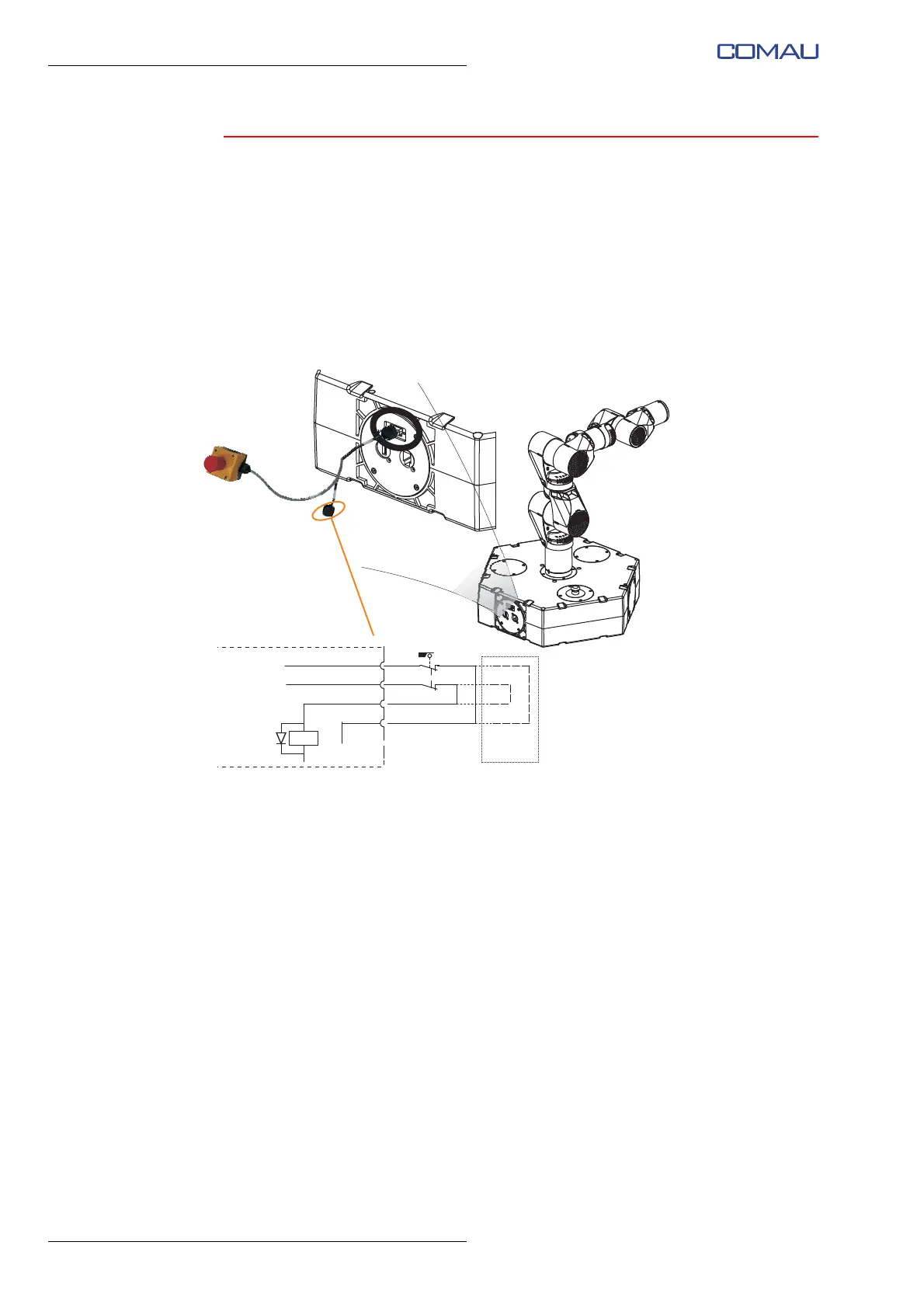

Fig. 3.4 - “Fence” input connection diagram - central e.DO
Fence
Hexagonal base
(internal connections)
1
2
5
6
Mating
connector
