Installing CAP Ms
14 UsebothhandlesontheCAPM-2chassistoliftitabovetheMountingBracketwiththebackofitschassis
facingthebackofCAP
M-1,andthenloweritintoplace.
• TheM6pinsthatyouloosenedinStep13onpage36mustalignwiththeMountingBracketslots,as
shownbelow.
• ThewasherforeachM6pinshouldbenexttotheCAPM-2chassis(insidethebracket).
15 OntherightsideoftheCAPM-2,torquetheM6pinto11N-m.
16 RepeatStep15ontheleftsideoftheCAPM.

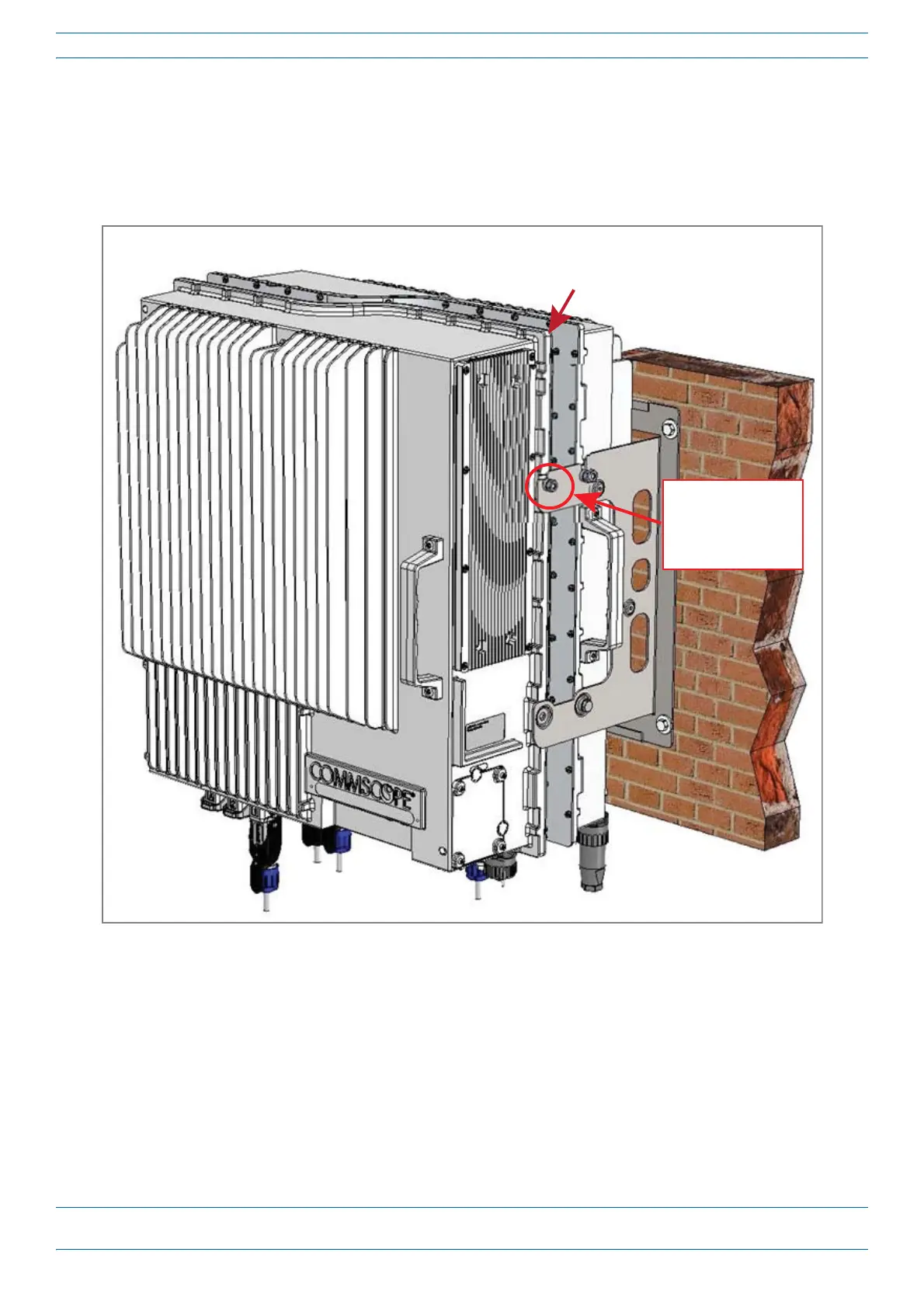

CAP M-2
(back of the CAP M-2 chassis
faces the back of CAP M-1)
M6 Pin with its
washer on the inside
of the bracket,
against the
CAP-M2 chasssis
