Chapter 2 System Overview
2.3.1.2 Rear Views
Item
Description
Item Desription
1 AC line In Connector (115V/230V) 8 Serial I/F connector, COM1
2 Line voltage switch 9 Serial I/F connector, COM2
3 USB I/F connectors (top, port B; bot. , port A) 10 Network I/F connector w/status LEDs
4 PS/2 keyboard I/F connector 11 Audio line input jack [1]
5 PS/2 mouse I/F connector 12 Audio line output jack [1]
6 Parallel I/F connector 13 Audio microphone input jack [1]
7 Monitor connector 14 Monitor connector [2]
2
4
5
11
12
6
9
1
12
13
6
10
9
3
7
2
1
3
4
5
10
13
14
8
7
8
Small Form Factor Slim Desktop
1
2
3
4
6
5
9
11
12
6
9
7
11
8
10
12
13
14
1
2
3
4
5
10
13
14
7
8
Configurable Minitower
(as a Desktop)
Configurable Minitower
(as a Minitower)
NOTES:
[1] Systems with integrated AC97 audio.
[2] Present on configurations including separate AGP graphics card.

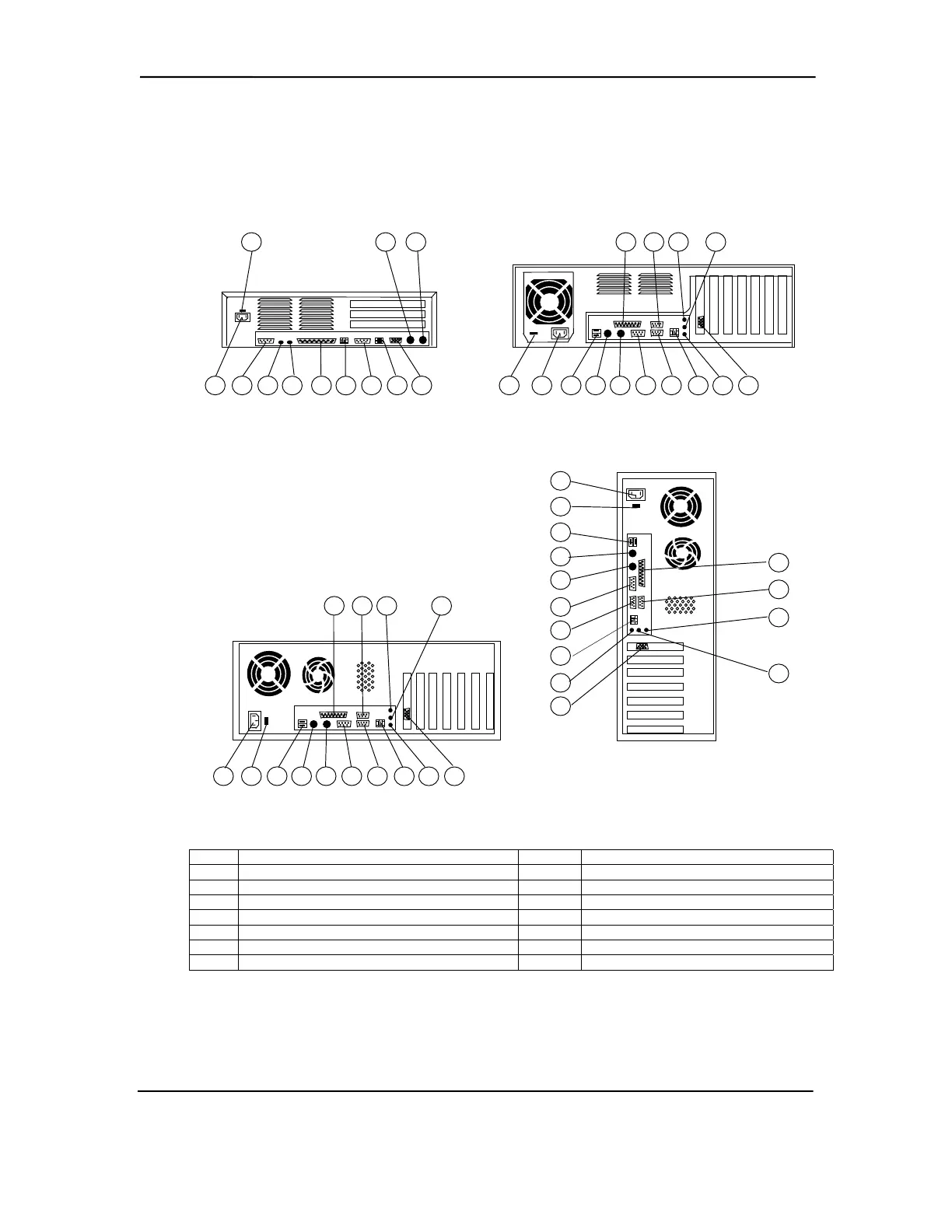

Figure 2–3. Compaq Deskpros and Evos, Rear Views
Compaq Deskpro and Evo Personal Computers
Featuring Intel Celeron and Pentium III Processors
Fifth Edition – March 2002
