System Board PCA# 010630, 011032 or 011305
Item Description Item Description
1 PCI bus expansion connectors 17 Diskette drive connector
2 AGP connector 18 Primary IDE connector
3 Chassis fan connector 19 Secondary IDE connector
4 Smart Cover Lock solenoid connector [4] 20 Power Button/LED connector [1]
5 Top-to-bottom: Line in, line out, Mic in [3] 21 CMOS clear memory button
6 Network interface connector 22 Aux 3.3 VDC LED
7 Top: serial COM2; bottom: serial COM1 23 Power button diagnostic LED
8 Monitor connector 24 Password jumper [2]
9 Parallel port LPT1 connector 25 AOL/SOS connector
10 Mouse connector 26 CD-ROM audio input connector
11 Keyboard connector 27 Smart Cover Sensor connector
12 Top: USB port B; Bottom: USB port A 28 Speaker connector
13 Processor socket 29 Aux audio input connector
14 Processor fan connector 30 Aux 5 VDC LED
15 DIMM sockets 31 Firmware hub (BIOS ROM)
16 Power supply connector 32 CMOS battery
NOTE:
[1] Connector for power, IDE HD LED, and SCSI HD LEDs.
[2] Jumper installed, password enabled. Jumper removed, password cleared.
[3] Not installed on PCA# 011032 only.
[4] Audio connector on PCA# 011305.

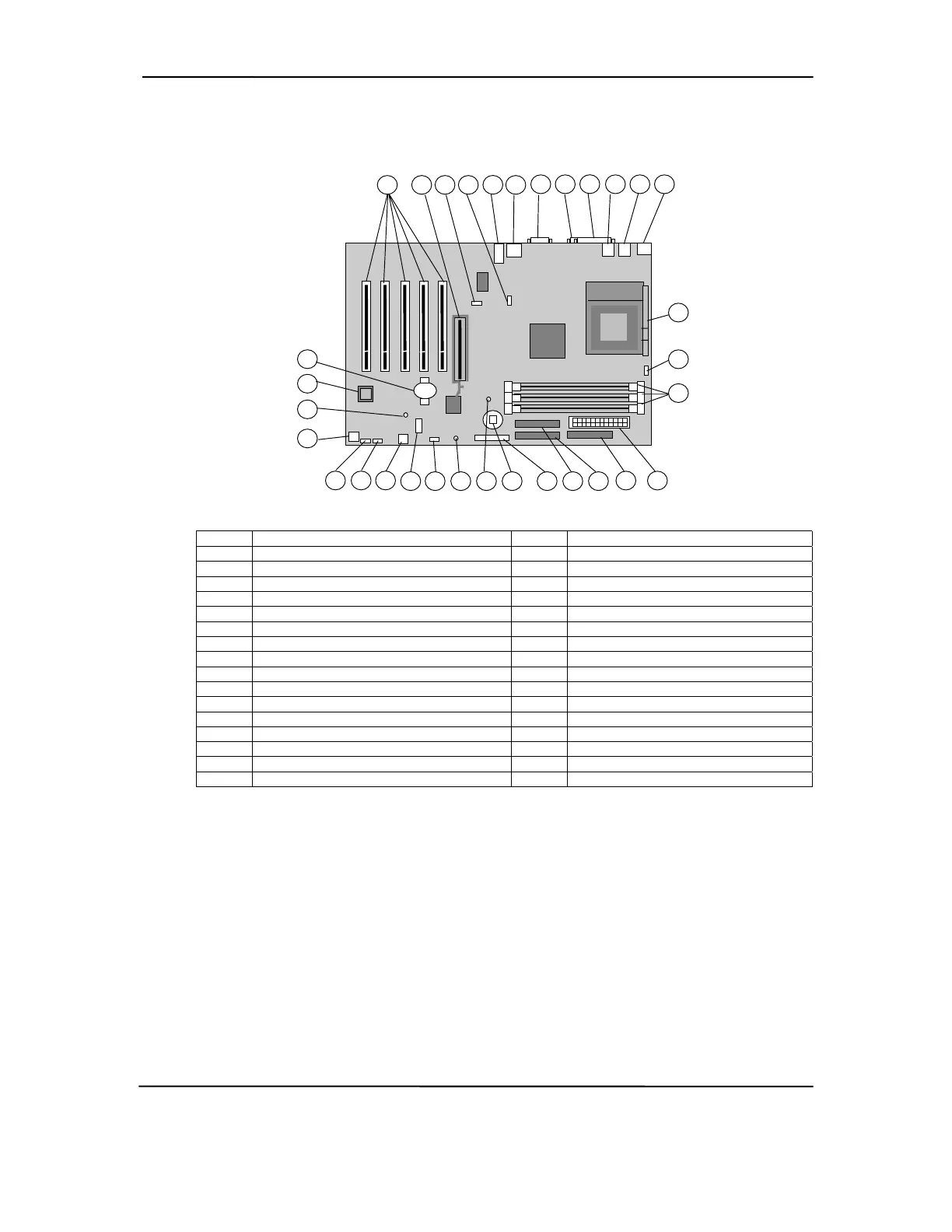

Figure 2–8. Slim Desktop or Configurable Minitower System Board Layout
