Low Power Outdoor (LPOD) Amplifier/Block Up Converter (BUC)
Revision 15
Appendix A A–2 MN-LPOD
A.2 1:1 Redundancy Mode
In 1:1 Redundancy Mode, the unit that is currently not the active (online) unit (as determined by
the switch position) becomes the controlling backup (offline) unit.
A.2.1 Ethernet-based Monitor and Control
• Chapter 4. ETHERNET INTERFACE OPERATION
• LPODnet Operation Manual (CEFD P/N MN-LPODNET)

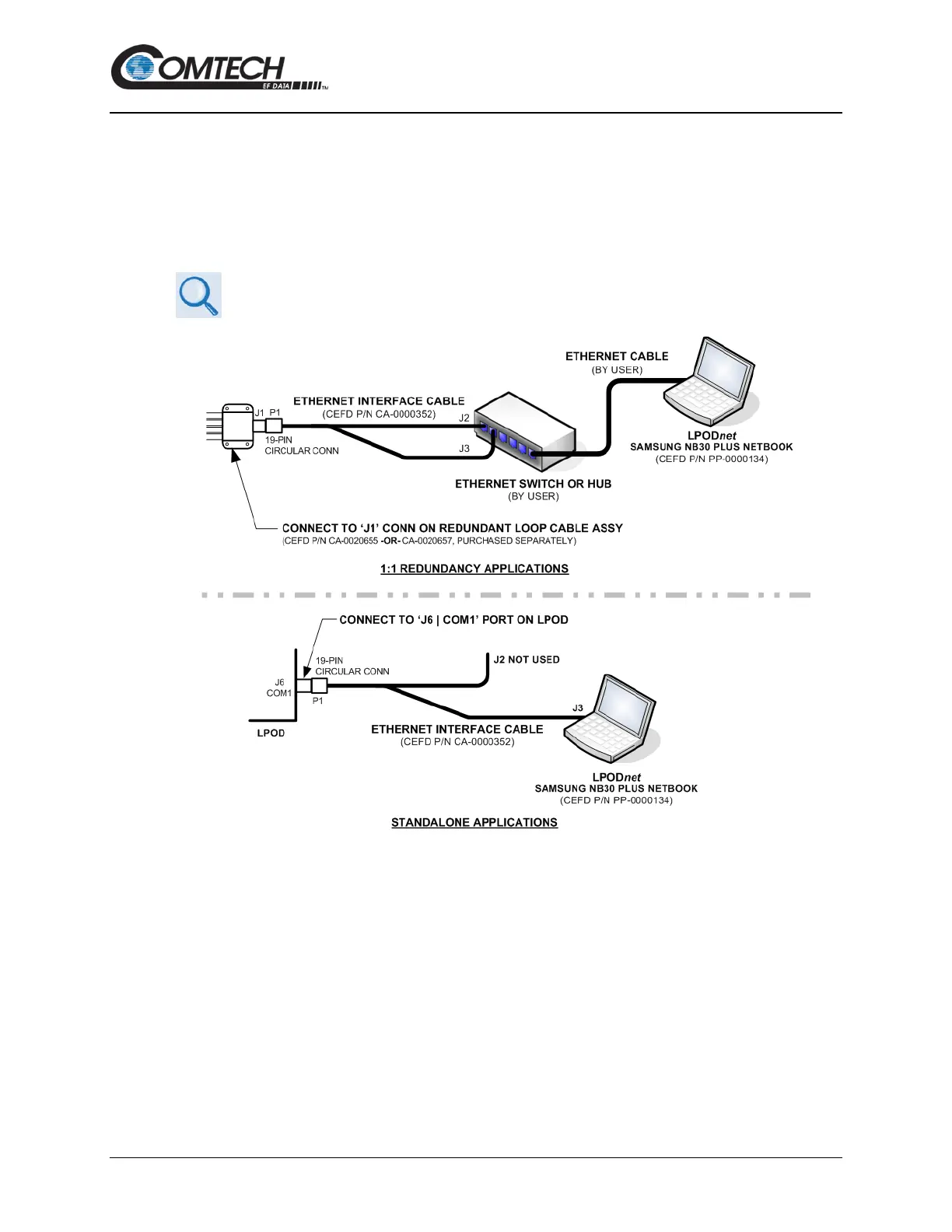

Figure A-1. Ethernet-based M&C using CEFD Kit KT-0000203
Ethernet-based remote M&C of any LPOD Standalone or 1:1 Redundancy application is available
through use of the optional LPODnet M&C Netbook Accessory Kit (CEFD Kit KT-0000203). This
kit provides you with on-site access to the LPOD’s remote Telnet, SNMP, or HTTP (Web Server)
interfaces. For detailed information about this optional accessory, see the LPODnet M&C
Accessory for LPOD/SPOD PS 1, PS 1.5, PS 2 Operation Manual (CEFD P/N MN-LPODNET).
