Low Power Outdoor (LPOD) Amplifier/Block Up Converter (BUC)

Revision 15

Appendix B B-6 MN-LPOD

B.2.4 19-Pin COMMS Cable (250’)

This cable connects between your designated data interface and the Redundant Loop Cable’s ‘J1’ connector in 1:1 Redundancy

applications, or the ‘J6 | COM 1’ port on a Standalone LPOD.

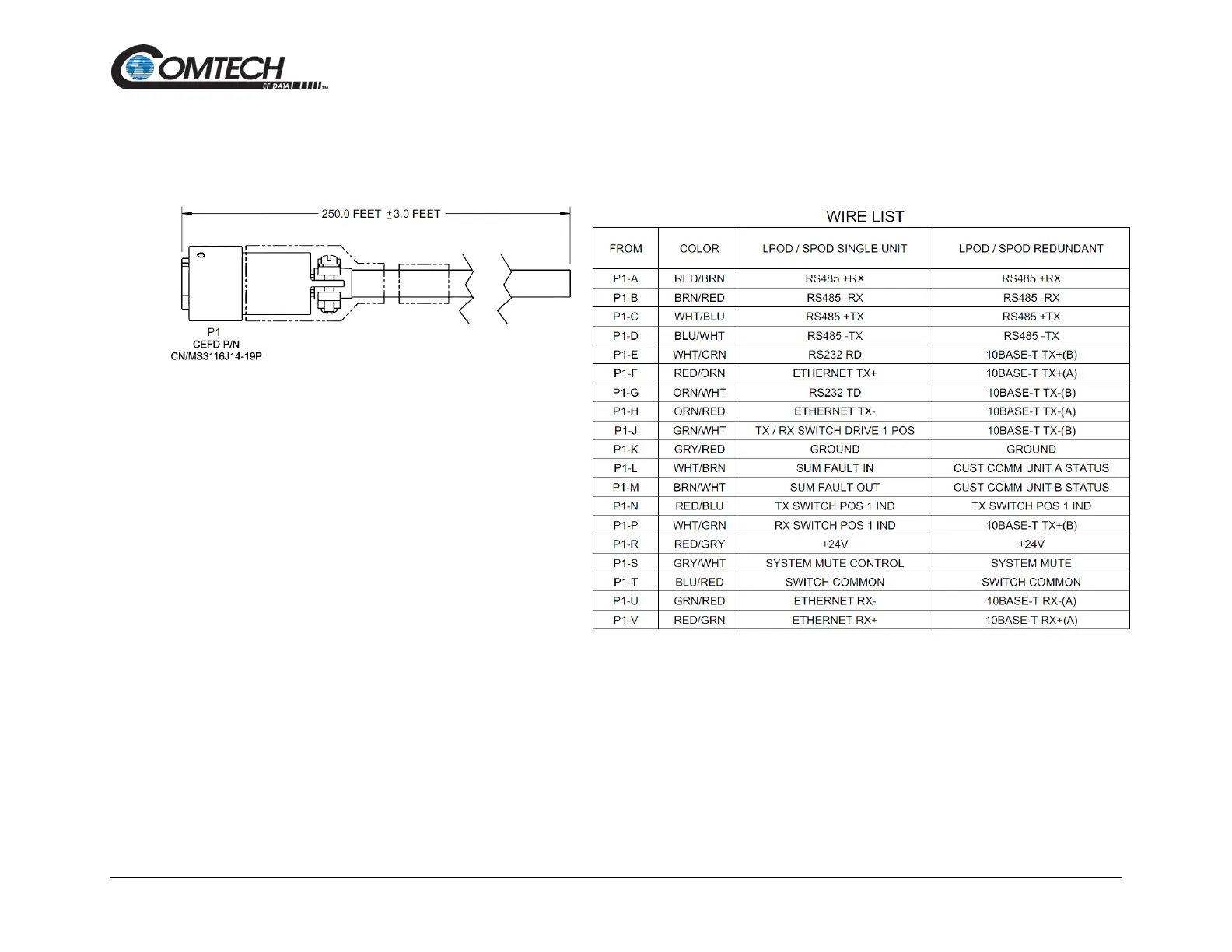

Figure B-4. COMMS Cable, 250’ (CEFD P/N CA-0000543)
