Low Power Outdoor (LPOD) Amplifier/Block Up Converter (BUC)
Revision 15
Firmware Update 3–4 MN-LPOD
For Ethernet connections, see Figure 3-2. A connection may consist of the CAT5e Ethernet
adapter cable (CEFD P/N CA-0000352) connecting the LPOD to the User PC Ethernet port. The
example provided uses the optional LPODnet (part of the CEFD KT-0000203 M&C Netbook
Accessory Kit).

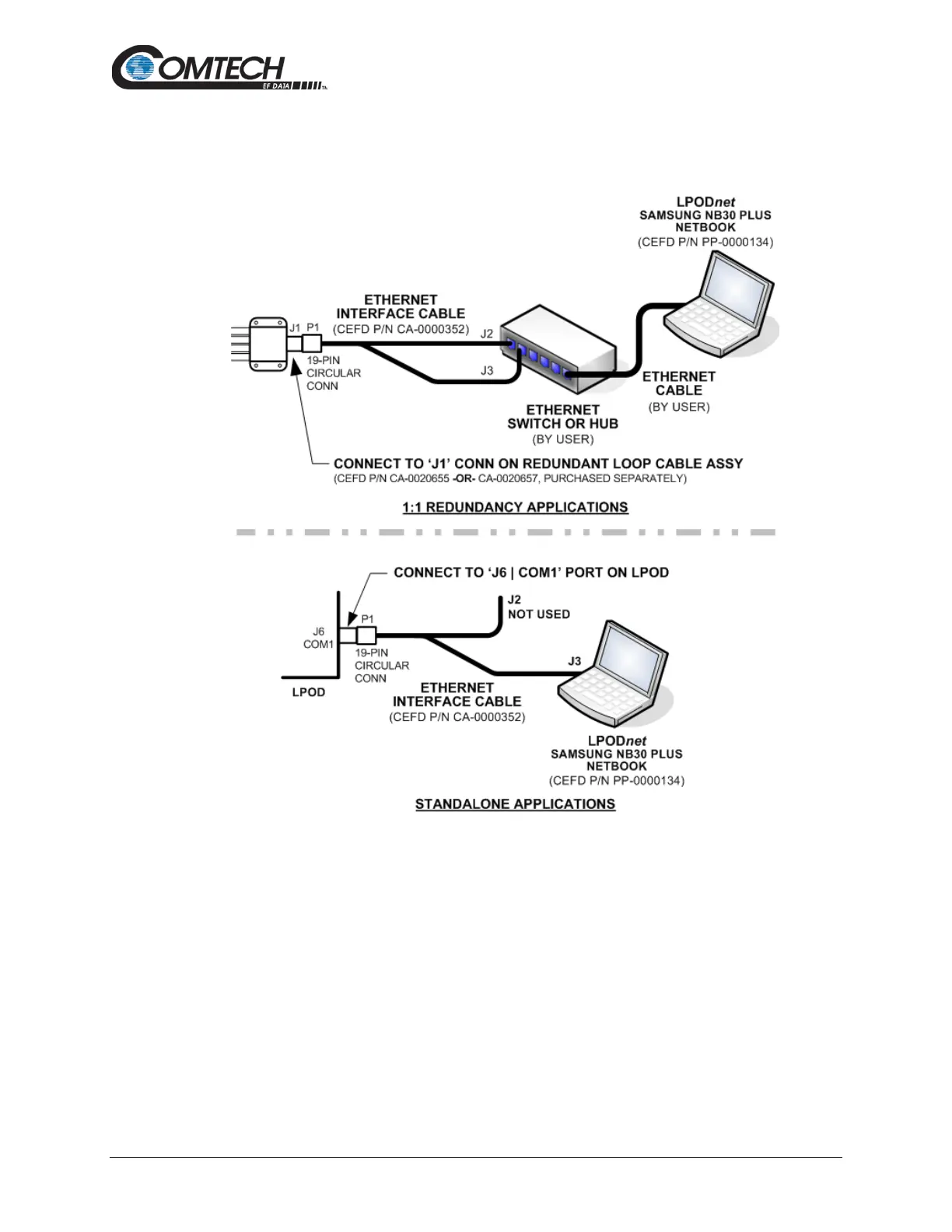

Figure 3-2. Standalone or Redundant Ethernet Connection
