Low Power Outdoor (LPOD) Amplifier/Block Up Converter (BUC)
Revision 15
Appendix B B-4 MN-LPOD
B.2.2 Ethernet Interface Cable
The CEFD Ethernet Utility Kit (CEFD P/N KT-0000203) includes the CA-0000352 Ethernet Interface Cable. This kit is optionally available to
provide Ethernet-based M&C of 1:1 Redundancy or Standalone LPOD applications using a Samsung NB30 Plus Netbook (LPODnet). The
‘P1’ circular connector installs onto the Redundant Loop Cable ‘J1’ connector in 1:1 LPOD Redundant applications, or the ‘J6 | COM 1’
connector on a Standalone LPOD. Use the ‘J2’ and ‘J3’ RJ-45 connectors to either connect directly to the LPODnet’s Ethernet network jack
(for Standalone use) or via a user-provided Ethernet switch or hub (for 1:1 Redundancy use).

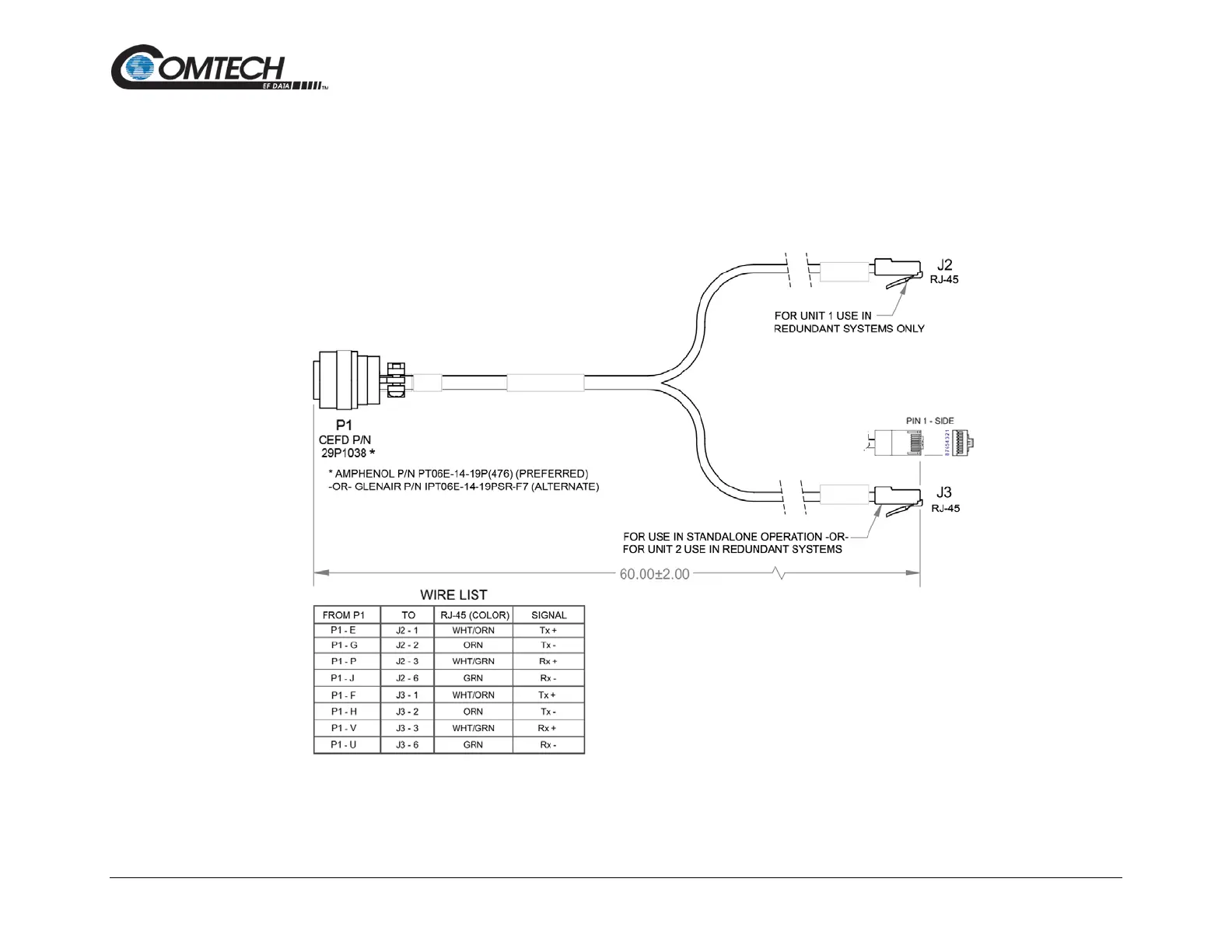

Figure B-2. Ethernet Interface Cable (CEFD P/N CA-0000352, part of KT-0000203)
