Comtech EF Data LPOD Series - Universal Pole Mounting Kit (PL;12319-1); Figure 2-8. Universal Pole Mounting Kit (PL;12319-1)

Low Power Outdoor (LPOD) Amplifier/Block Up Converter (BUC)
Revision 15
System Connectors, Installation, and Startup 2–15 MN-LPOD
2.4.3.1 Universal Pole Mounting Kit (PL/12319-1)
This kit accommodates a pole diameter of up to 13.00” (33.02 cm) OD maximum.
Item
Qty
CEFD Part Number
Description
1
1
N/A
DUAL CHANNEL UNISTRUT (SHOWN FOR CLARITY ONLY –
P/O LPOD MOUNTING KIT)
2
2
HW/M8SPRING NUT
SPRING NUT, M8
3
2
HW/BLK-PIPE2-8
PIPE BLOCK
4
2
HW/M8X1.25X25HEXSS
SS HEX HEAD BOLT, M8, 25MM LG
5
7
HW/M8FLATSS
SS FLAT WASHER, M8
6
7
HW/M8LOCKSS
SS LOCK WASHER, M8
7
1
FP/BR0069
FLOATING STRAP BRACKET
8
1
FP/BR0071
PIPE STRAP (TRIM TO REQUIRED LENGTH)
9
5
HW/M8X1.25MMHEXNUTSS
SS HEX NUT, M8
10
1
FP/BR0070
FIXED STRAP BRACKET AND STRAP
11
1
FP/BR0072
STRAP TENSIONER BOLT

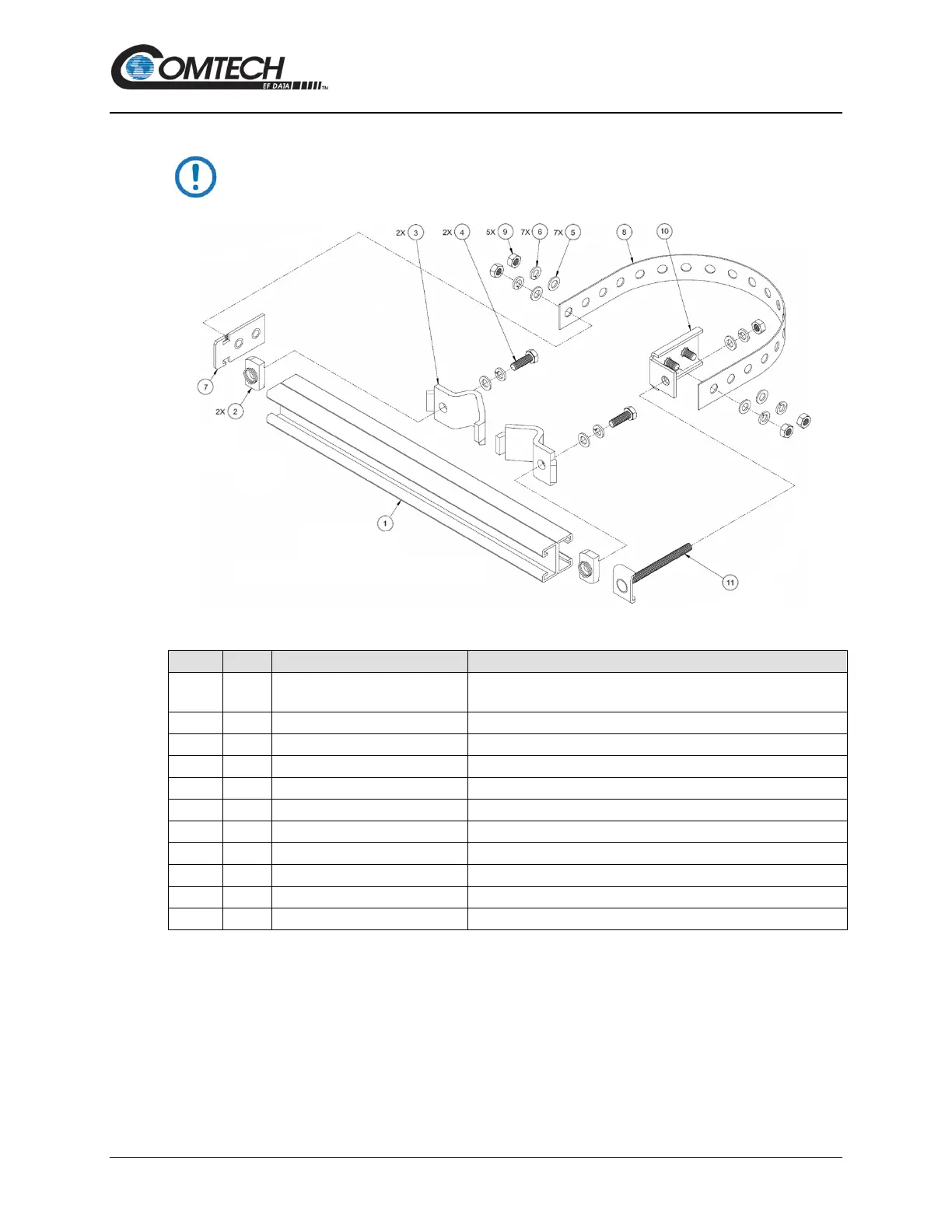

Figure 2-8. Universal Pole Mounting Kit (PL/12319-1)
Use this kit in combination with a product-specific LPOD mounting kit to secure the LPOD
standalone configuration to a standard satellite dish support pole. The number of kits used
depends on the weight of the unit.
