Comtech EF Data LPOD Series - Serial Interface Cable

Low Power Outdoor (LPOD) Amplifier/Block Up Converter (BUC)
Revision 15
Appendix B B-3 MN-LPOD
B.2.1 Serial Interface Cable
The CEFD CLC-10 Serial M&C Accessory Kit (CEFD P/N KT-0020518) includes the CA-0020526 Serial Interface Cable. This kit is optionally
available to provide serial-based monitor and control of 1:1 Redundancy or Standalone LPOD applications using the CLC-10 CEFD LPOD
Controller (a preconfigured Two Technologies, Inc. TechTerm Handheld Terminal). The circular connector installs onto the Redundant Loop
Cable ‘J1’ connector in 1:1 LPOD Redundant applications, or the ‘J6 | COM 1’ connector on a Standalone LPOD. The RJ-11 connector plugs
directly into the CLC-10.

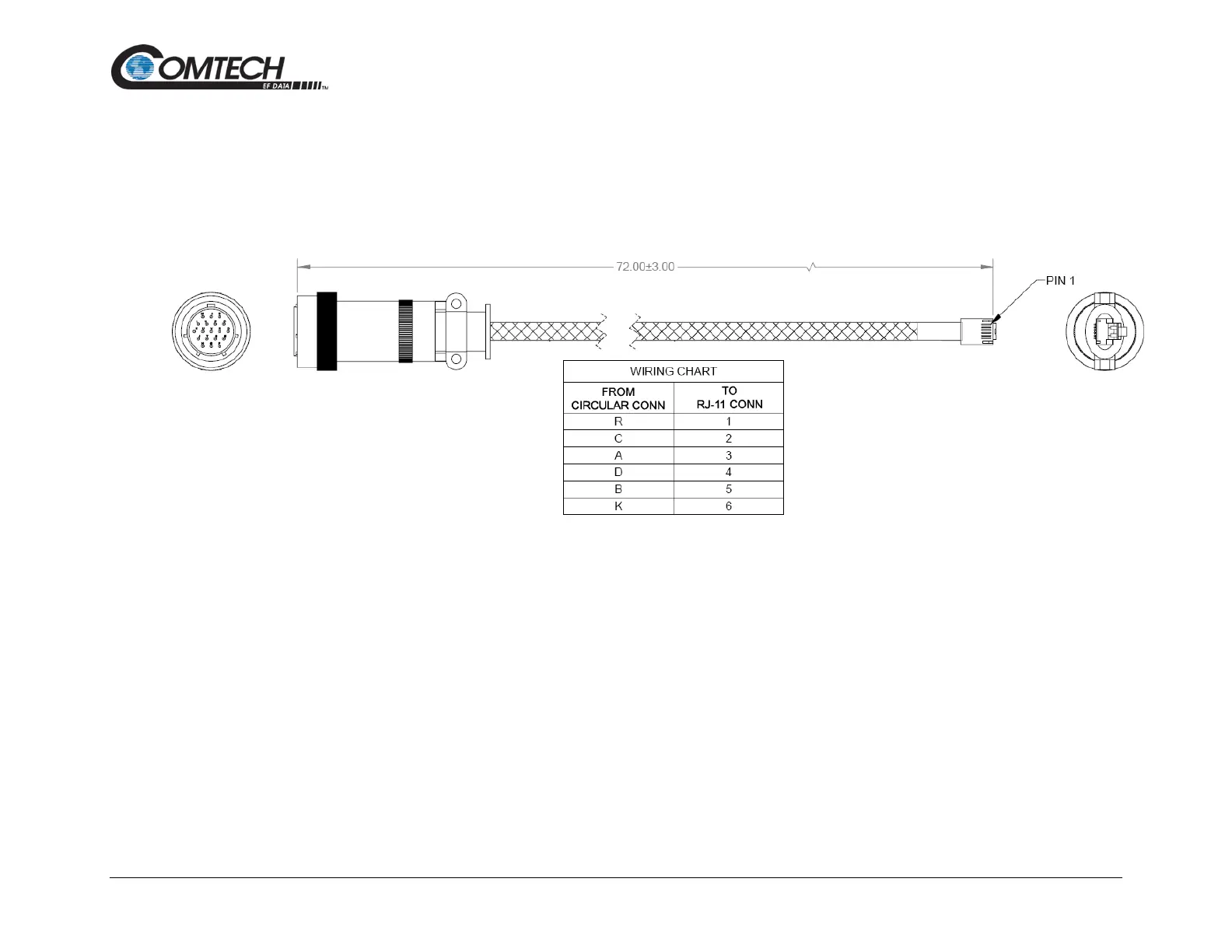

Figure B-1. Serial Interface Cable (CEFD P/N CA-0020526, part of KT-0020518)
