Low Power Outdoor (LPOD) Amplifier/Block Up Converter (BUC)
Revision 15
Appendix B B-10 MN-LPOD
B.3.1 RF Cable (Type ‘N’)
Use this Type ‘N’ cable for the Rx or Tx connections in LPOD Standalone or 1:1 Redundancy applications:
• For LPOD PS 1 C-Band and X-Band applications – For Standalone use, the cable connects the unit’s ‘J2 | RF OUT’ port directly
to your Rx signal destination. For 1:1 Redundancy applications, use the cable to connect each LPOD’s ‘J2 | RF OUT’ port to the
Tx Waveguide switch.
• For all LPOD applications – For Standalone use, the cable connects directly from these LPOD interfaces to your Rx signal
destination or Tx signal source. For 1:1 Redundancy applications, use the cable to connect the ‘J1 | LBAND IN / Tx IN’ or ‘J10 |
MODEM Rx’ ports in 1:1 Redundancy applications to the system’s respective signal splitters.

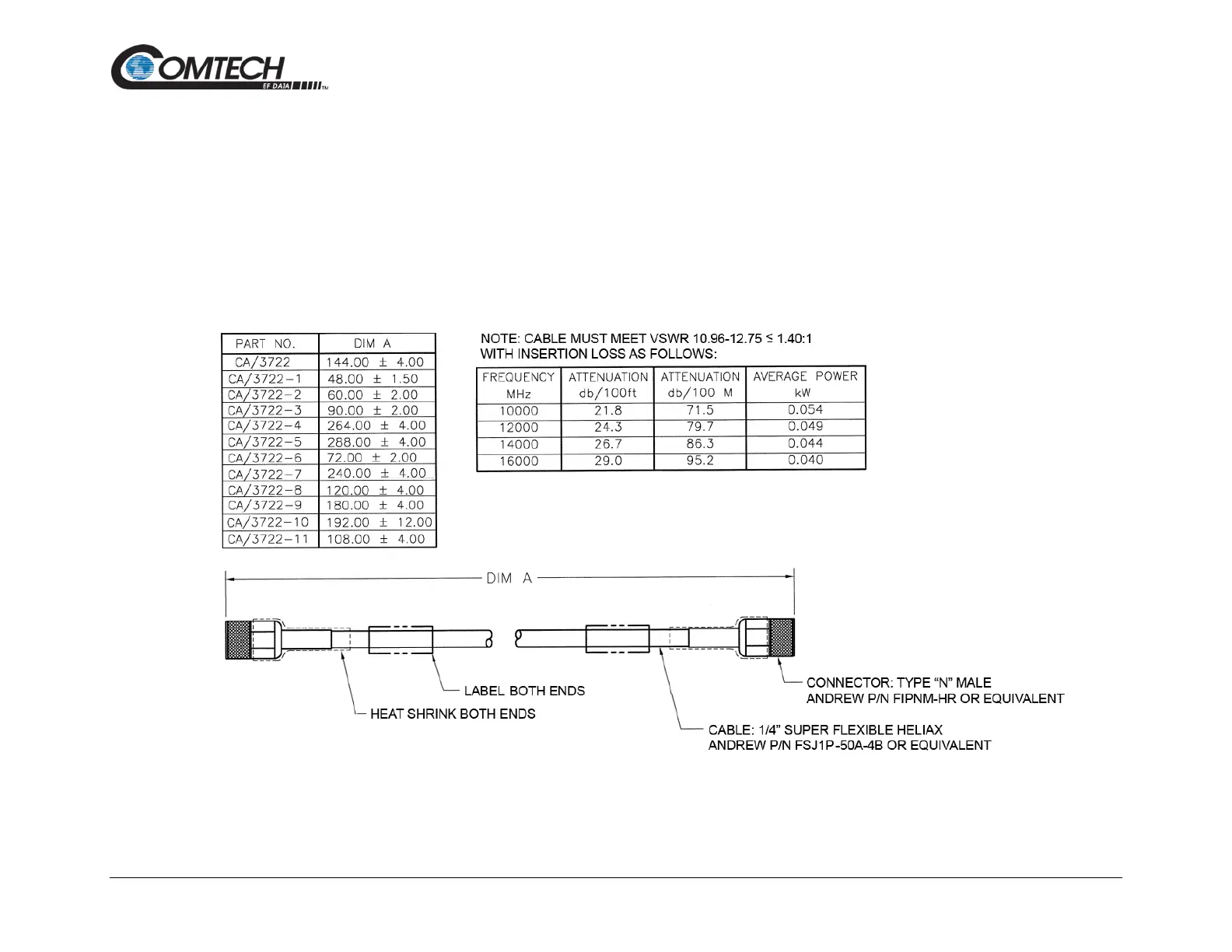

Figure B-7. 1/4" Heliax Coaxial Cable (CEFD P/N CA/3722-X)
