Comtech EF Data LPOD Series

To Next Page

To Previous Page

Low Power Outdoor (LPOD) Amplifier/Block Up Converter (BUC)

Revision 15

Appendix A A–47 MN-LPOD

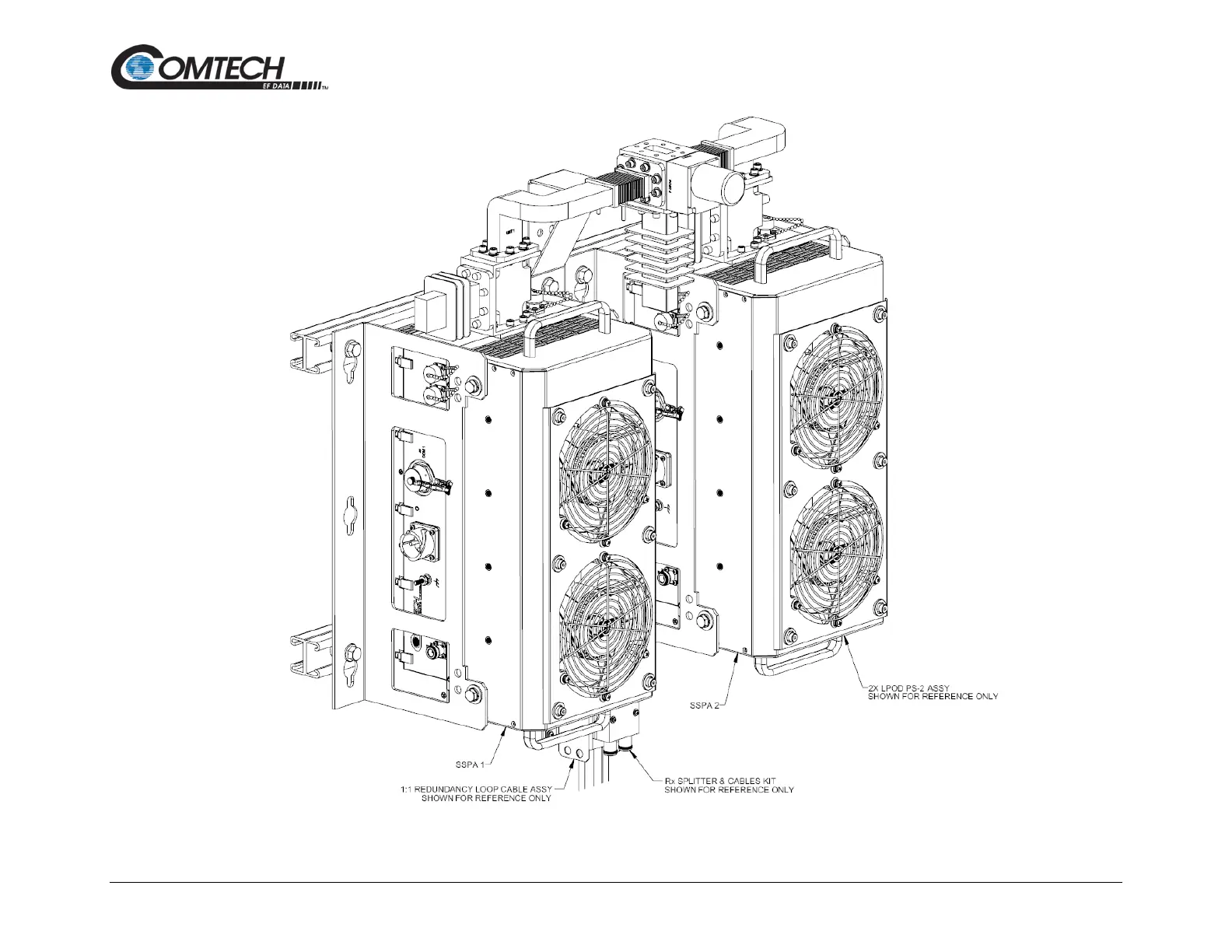

Figure A-27. KT-0000091 LPOD PS 2 C-Band 1:1 Redundancy Kit Example – Assembled Isometric View
