CONCH HM Series - Page 114

104

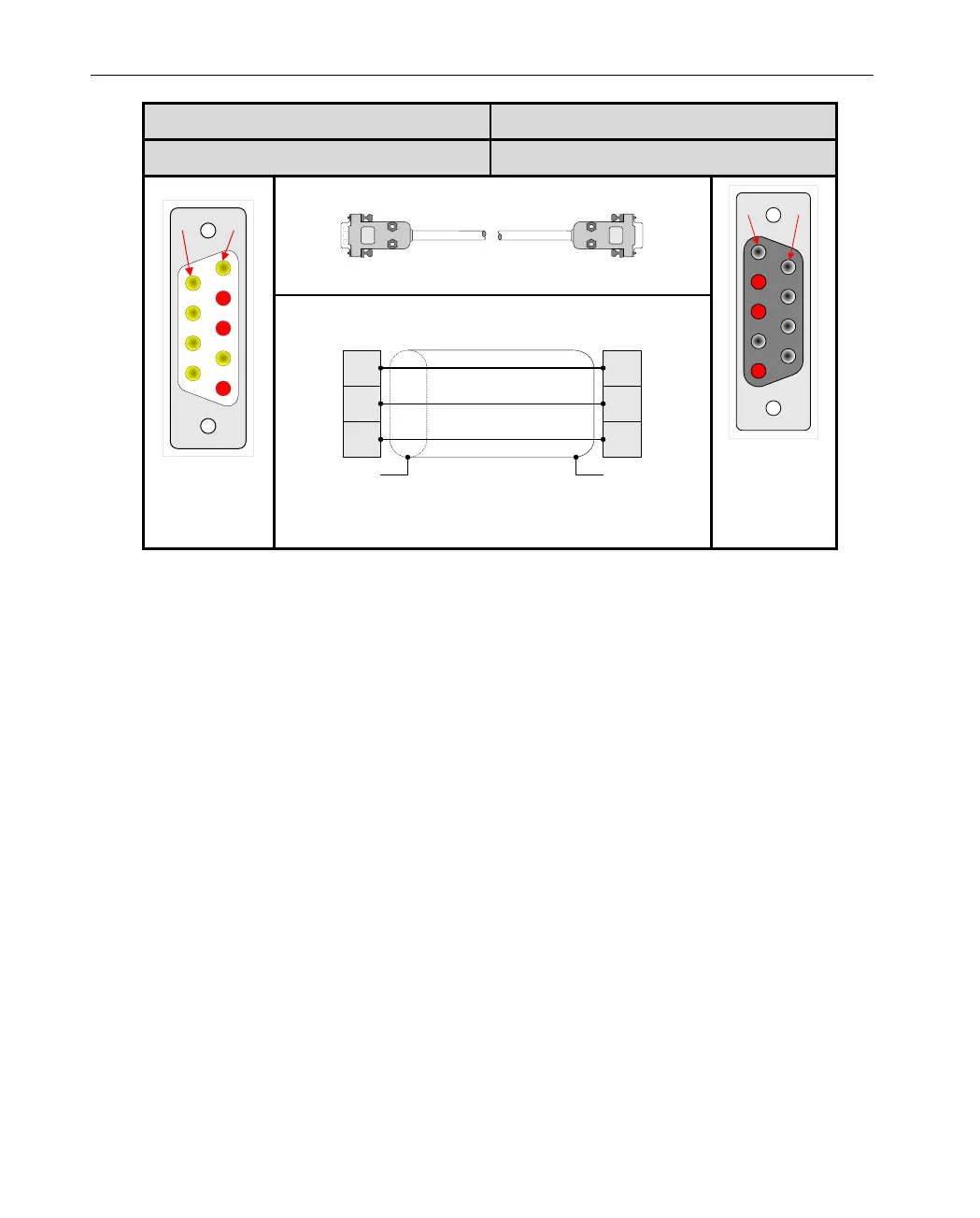

6.18 Modbus Slave
HM Series Connection Manual
HM Series Terminal
Slave RS232Terminal
9Pin D-SUB Male
9Pin D-SUB Female
P1P6
9P
(Male Adapter)
P6P1
9P
(Female
Adapter)
FG FG
3
2
5
RXD
TXD
GND
2
3
5
TXD
RXD
GND
