6.13 Mitsubishi FX / FX2n Computer Link
HM Series Connection Manual

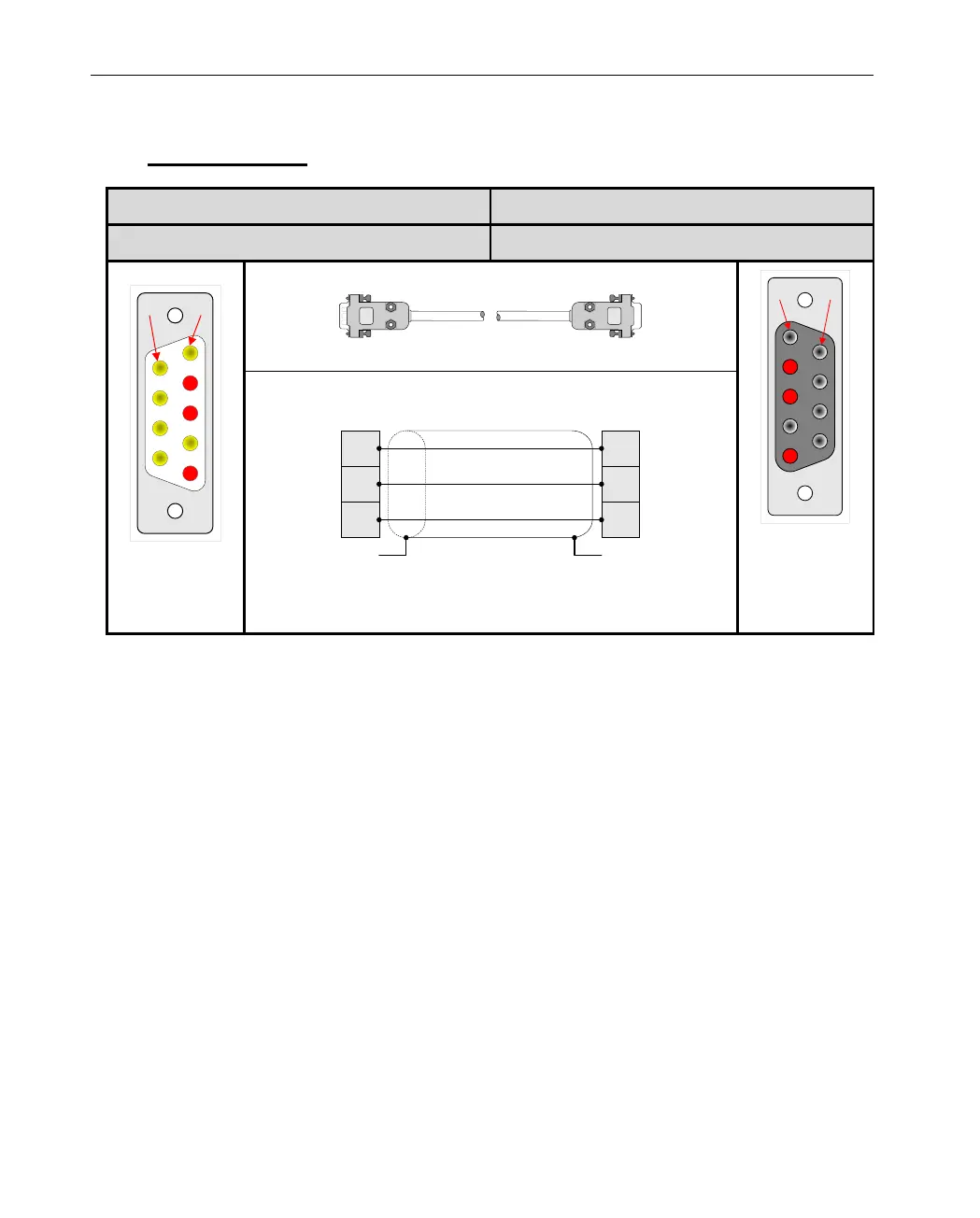

6.13.4. Explanation of Communication Wiring:
 COM1 ( RS232 )
HM Series Terminal
RS232BD Module Terminal
9Pin D-SUB Male
9Pin D-SUB Female
P1P6
9P
(Male Adapter)
P6P1
9P
(Female
Adapter)
FG FG
3
2
5
RXD
TXD
GND
2
3
5
TXD
RXD
GND
