CONCH HM Series User Manual

40
6.4 Facon FBs Series PLC
HM Series Connection Manual

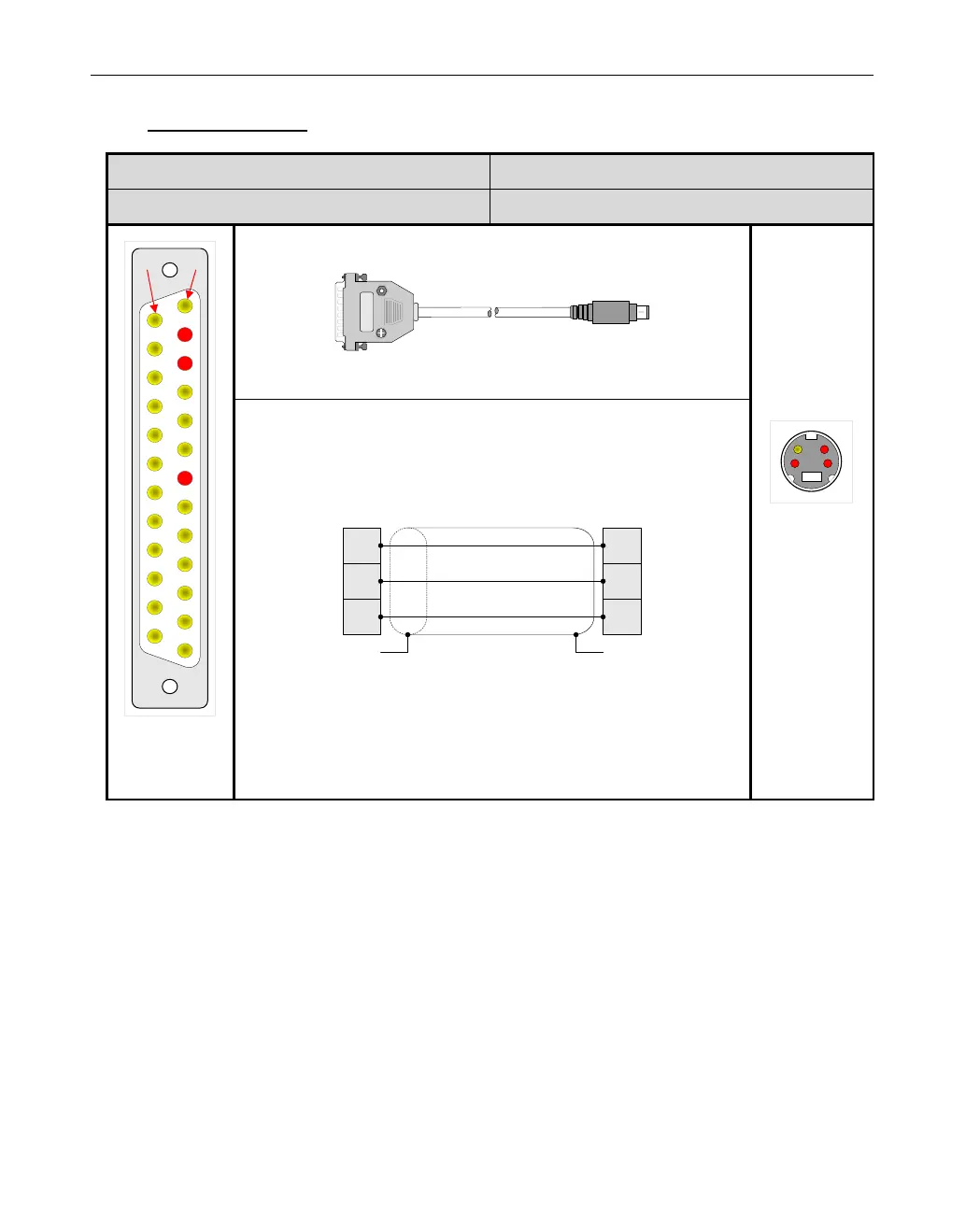

 COM2 ( RS232 )
HM Series Terminal
PLC Port0 Terminal
25Pin D-SUB Male
4Pin Mini DIN Male
P14 P1
25P
(Male Adapter)
1 2
3 4
4P
(Male
Adapter)
FG FG
4
2
1
RXD
TXD
GND
3
2
7
TXD
RXD
GND
