Condair EL - System Overview for Duct Humidification

11Product Overview
3.3 SystemoverviewCondairELforducthumidication
9
8
11
10
6
5
7
14
16
18
15
1
3
4
12
13
2
17
Return duct
Supply duct
* by others
*
*
*
*
*
*
*
*
*
*
1 Steam humidier
2 Steam outlet connector
3 Water drain connector
4 Water supply connector
5 Water supply line
6 Filter valve (accessory Z261)
7 Manometer (recommended)
8 Open funnel with water trap
9 Drain hose (supplied)
10 Electrical isolator control voltage supply
11 Electrical isolator heating voltage supply
12 Steam line (accessory DS..)
13 Condensate line (accessory KS10)
14 Air proving switch
15 Steam distributor (accessory DV..)
16 Humidity controller or humidity sensor
17 Humidity controller or humidity sensor
18 High limit humidistat

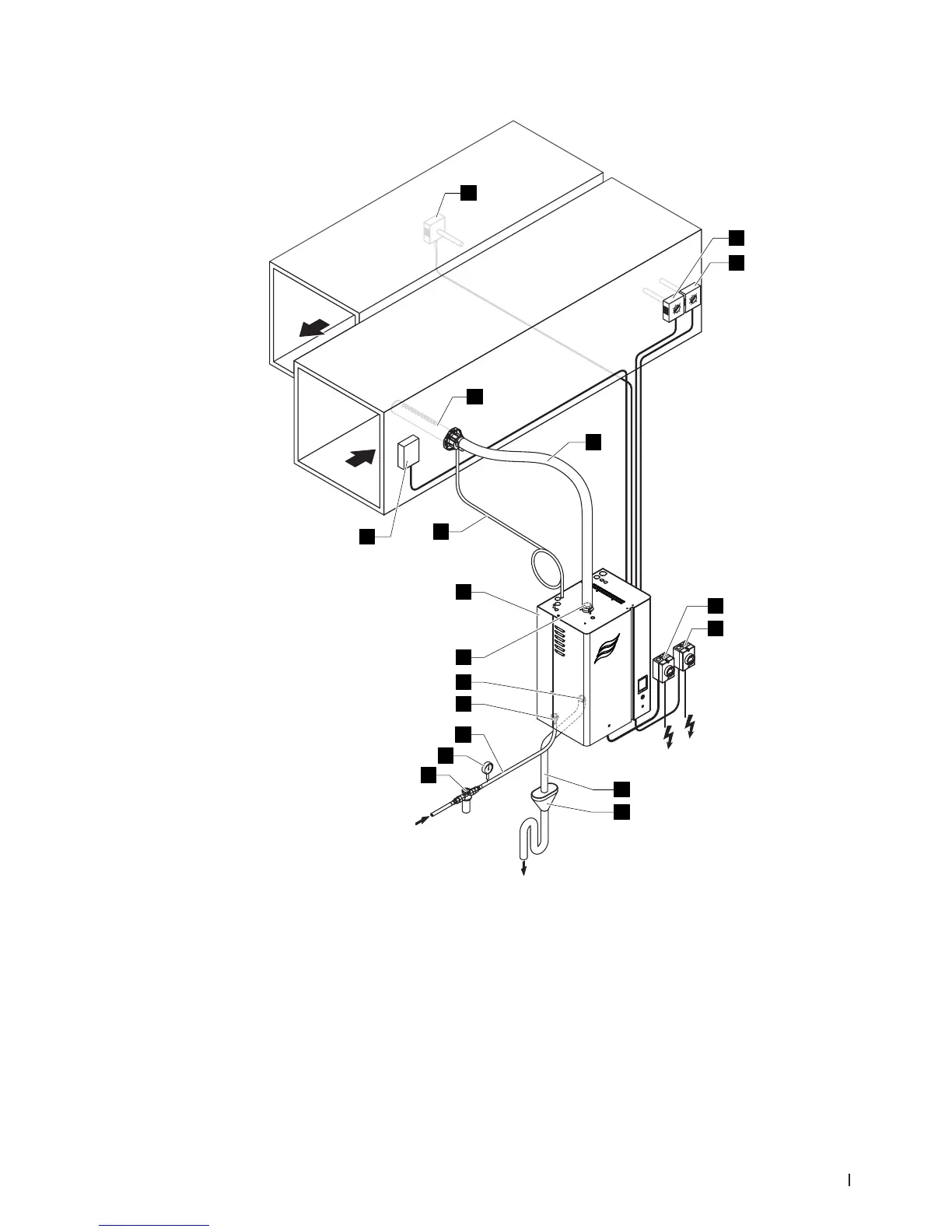

Fig. 2: System overview Condair EL for duct humidication
