59Maintenance

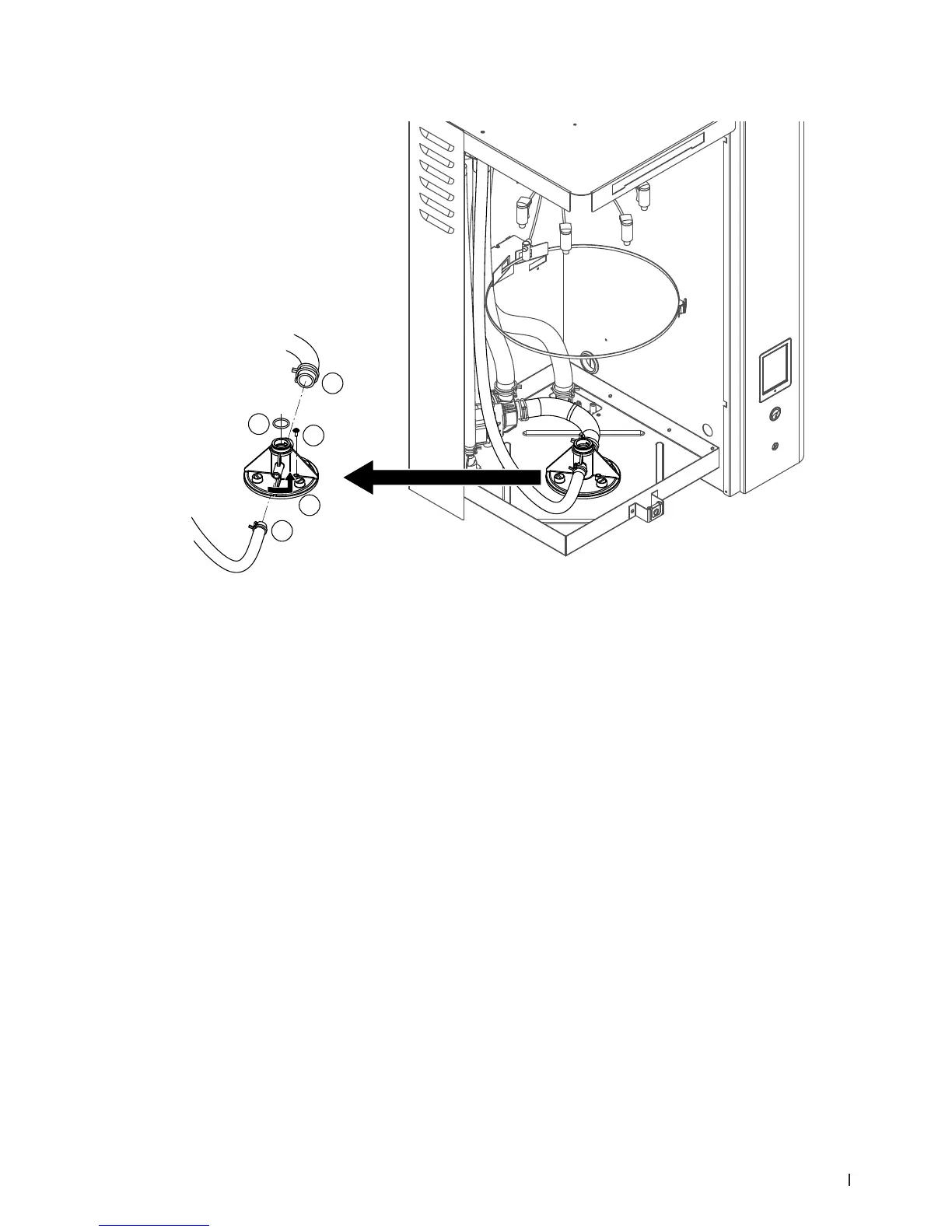

6.3.6 Removal and installation of the steam cylinder receptacle
For removing the steam cylinder receptacle the steam cylinder must be removed rst (see chapter 6.3.1).
1. Release hose clamps and remove hoses from the connectors.
2. Undo the screw xing the cylinder receptacle to the bottom of the housing with Phillips screwdriver.
3. Turn cylinder receptacle counterclockwise to the stop and remove cylinder receptacle upwards.
4. Remove O-ring.
The installation of the steam cylinder receptacle follows the reverse sequence of the removal. For safety
reasons the O-ring in the steam cylinder receptacle must mandatory be replaced.
1
1
2
3
4
