60 Maintenance

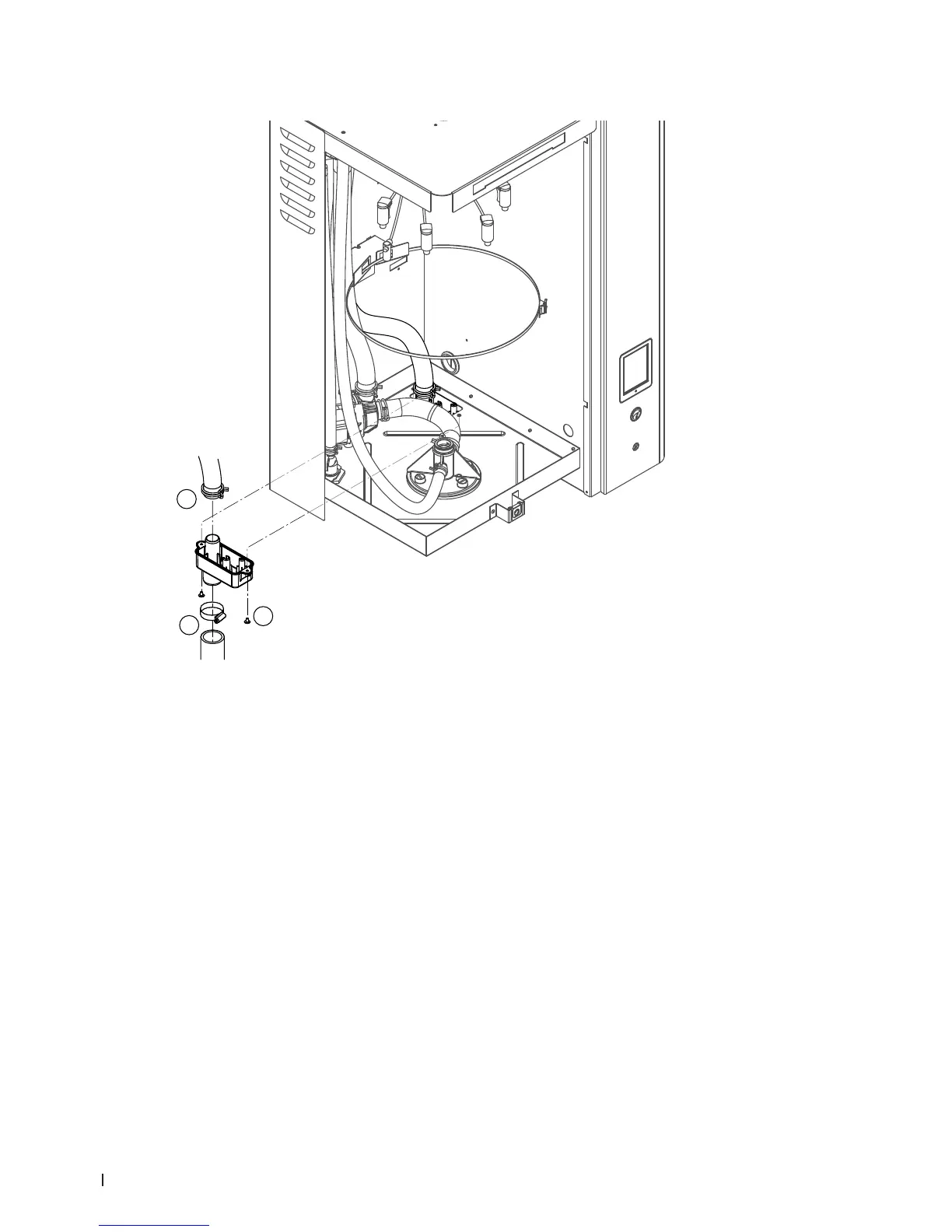

6.3.7 Removal and installation of the drain cup
For removing the drain cup the steam cylinder must be removed rst (see chapter 6.3.1).
1. Release hose clamp and remove hose from the connector.
2. Release hose clamp of the external drain hose and remove hose.
3. Undo the two screws xing the drain cup to the bottom side of the housing with Phillips screwdriver.
Then, remove drain cup downwards.
The installation of the steam drain cup follows the reverse sequence of the removal. For safety reasons
make sure the hoses are correctly attached to the drain cup and secured with the hose clamps.
