Condair EL - Removal and Installation of the Fill Cup and the Water Hoses

56 Maintenance
6.3.3 Removalandinstallationofthellcupandthewaterhoses
For removing the ll cup and the water hoses the steam cylinder must be removed rst (see chapter 6.3.1).
1. Release hose clamps using pliers, then disconnect all hoses from the corresponding connectors
and remove the hoses.

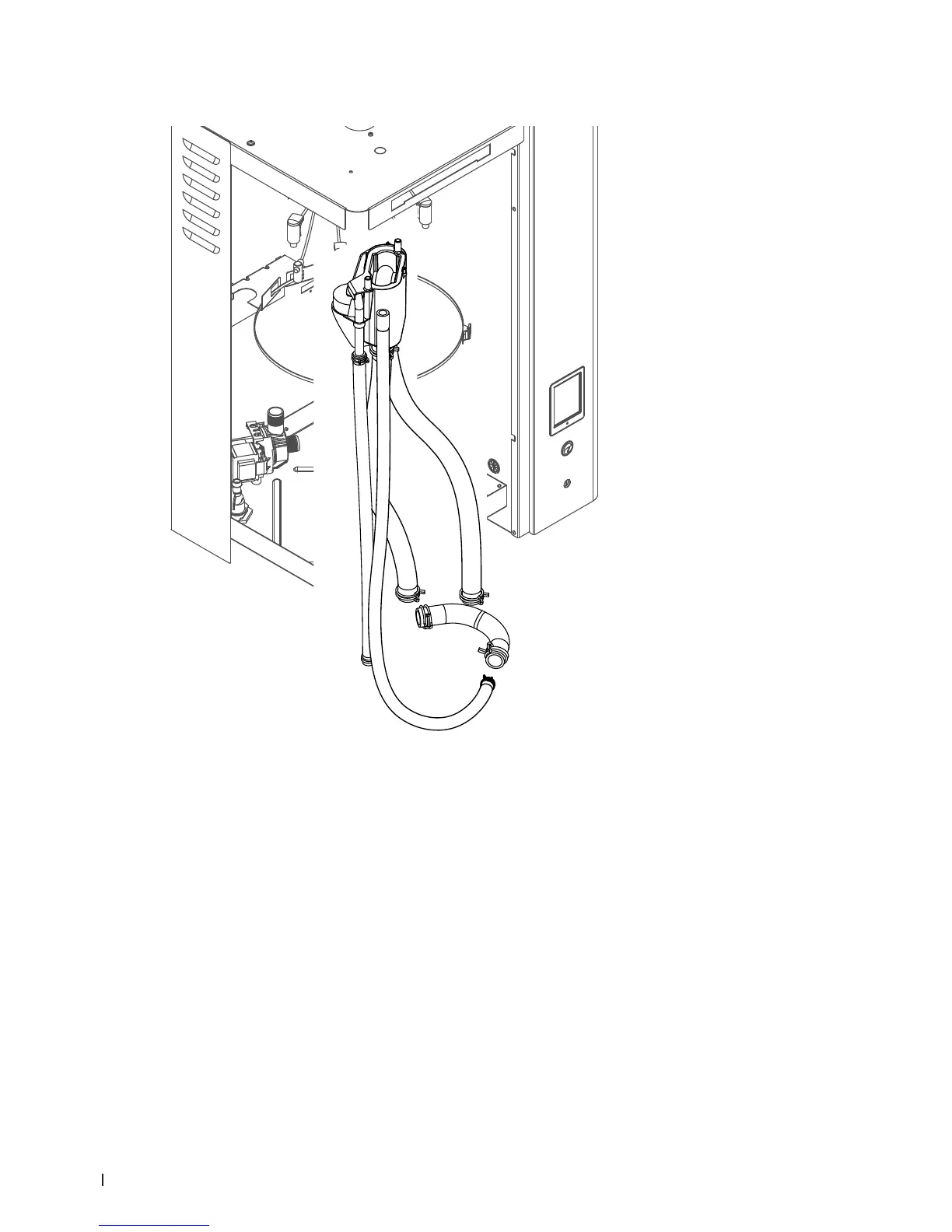

Note: The hoses connected to the ll cup may also be removed together with the ll cup (see gure
above) and then disconnected from the connectors of the ll cup outside the unit.
2. Carefully pull xing clip of the ll cup to the front, then push ll cup down from the holding device
and remove it to the front.
The installation of the ll cup and the water hoses follows the reverse sequence of the removal. Before
xing the water hoses to the connector with the hose clamps, align the hoses in a way that they are not
twisted.
