Condair EL - System Overview for Direct Room Humidification

12 Product Overview
3.4 SystemoverviewCondairELfordirectroomhumidication
1 Steam humidier
2 Steam outlet connector
3 Water drain connector
4 Water supply connector
5 Water supply line
6 Filter valve (accessory Z261)
7 Manometer (recommended)
8 Open funnel with water trap (building side)
9 Drain hose (supplied)
10 Electrical isolator control voltage supply
11 Electrical isolator heating voltage supply
12 Steam line (accessory DS80)
13 Condensate line (accessory KS10)
14 Blower Pack (accessory BP)
15 Humidity controller or humidity sensor
16 High limit humidistat

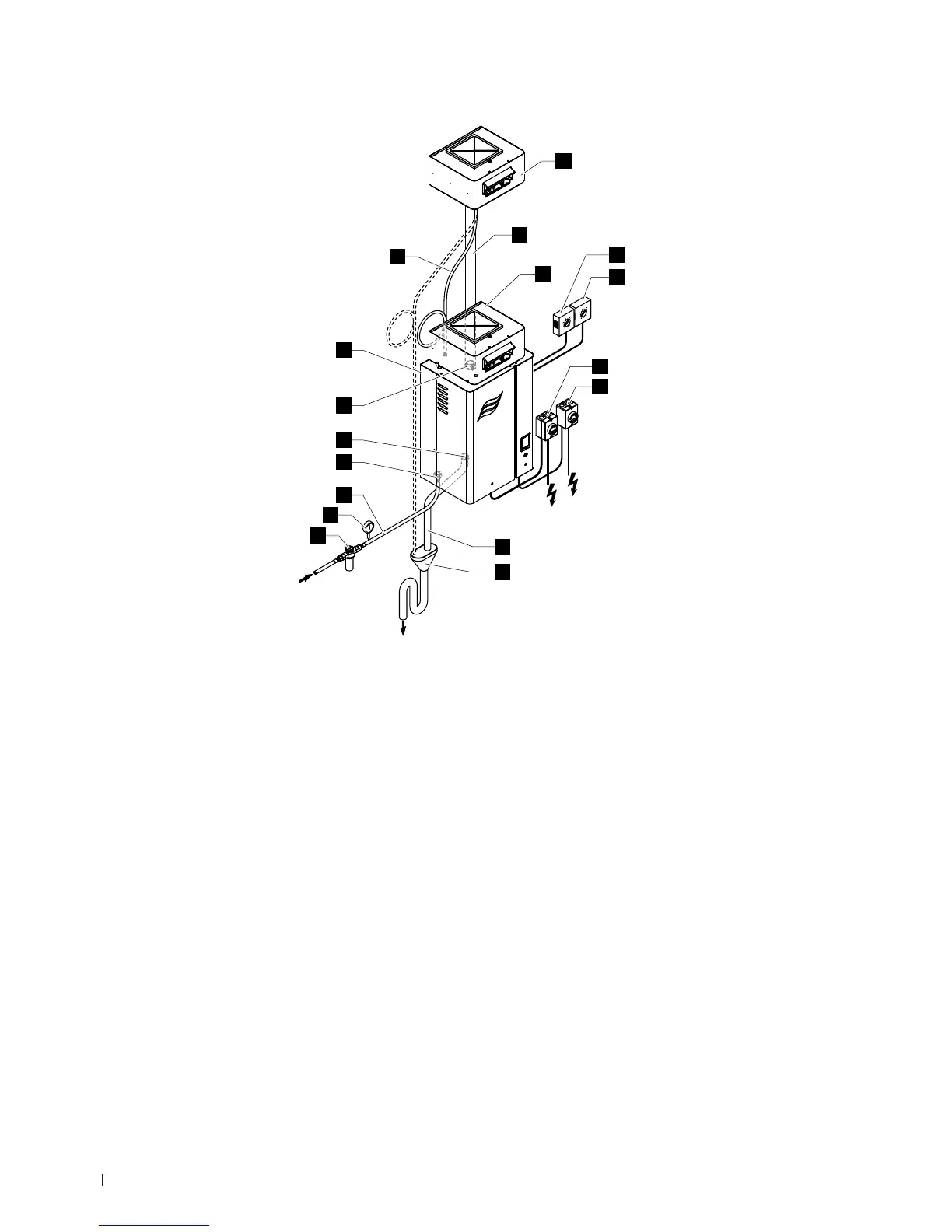

Fig. 3: System overview Condair EL for direct room humidication
9
8
11
10
1
3
4
6
5
7
15
16
12
14
14
13
2
* by others
*
*
*
*
*
*
*
*
