Condair EL - Disassembly and Assembly of the Cleanable Steam Cylinder Type D

55Maintenance
6.3.2 Disassembly and assembly of the cleanable steam cylinder type D...

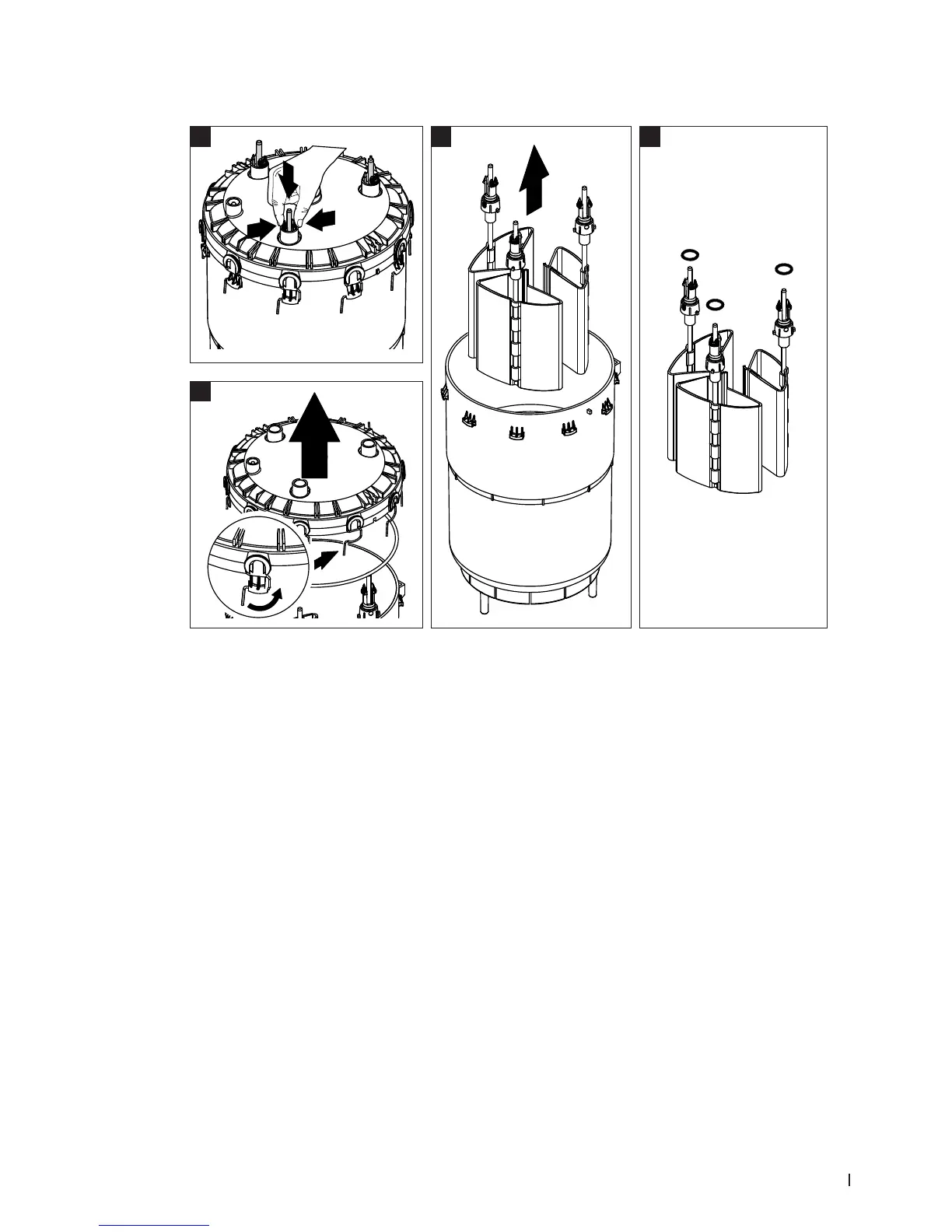

1. Pinch electrode snap fastenings and push electrodes approx. 2 cm downwards into the steam cyl-
inder.
2. Release clamp clips of the cylinder cover and raise cover.
3. Remove carefully electrodes by lifting upwards.
4. Remove O-rings from the electrodes.
Note: Intact O-rings can be reused.
The assembly of the cleanable steam cylinder follows the reverse sequence of the removal. Observe
the follow ing:
– Before assembling the steam cylinder, check the O-ring in the steam cylinder cover and the O-rings
on the electrodes for damage, and replace if necessary. Make sure to relocate O-rings correctly.
– Insert electrodes into steam cylinder cover and push them upwards until the snap fasteners engage.
– Place the cylinder cover (with mounted O-ring) in the correct position (align the two cams on the
steam cylinder body with the corresponding grooves in the cylinder cover) on the cylinder body and
secure cover with the fastening clips.
1 3
2
4
