CAUTION!
Put steam cylinder down carefully to avoid damage to the lower connection piece!
Installation of the steam cylinder
Assembly of the steam cylinder takes place in reverse sequence of the removal. Please note the fol-
lowing instructions:
– For safety reasons the O-ring in the cylinder receptacle must be replaced by a new one. Before
installing the steam cylinder, moisten the O-ring with water (do not use grease or oil).
– Make sure the new cylinder is the same model as the one that was removed. Model number is on
top left corner of cylinder label.
– Attach rubber sleeve to the steam outlet of the steam cylinder and fasten rubber sleeve with hose
clamp.
CAUTION!
The outlet connector of the steam cylinder is made of plastic. Do not overtighten the hose clamp
on the steam connector of the steam cylinder.
A leaky steam hose can cause damage due to moisture inside the unit.
– Carefully insert the steam cylinder into the receptacle and push the steam cylinder down to the stop.
Then, attach rubber sleeve to the steam outlet connector in the unit cover and fasten rubber sleeve
with hose clamps.
CAUTION!
The steam outlet connector is made of plastic. Do not overtighten the hose clamp on the steam
outlet connector.
A leaky steam hose can cause damage due to moisture inside the unit.
– Attach colour coded cylinder plugs to the corresponding colour coded electrode pin and push down
completely. Connect plug of the sensor cable to the connector pin of high water sensor and push
down completely.

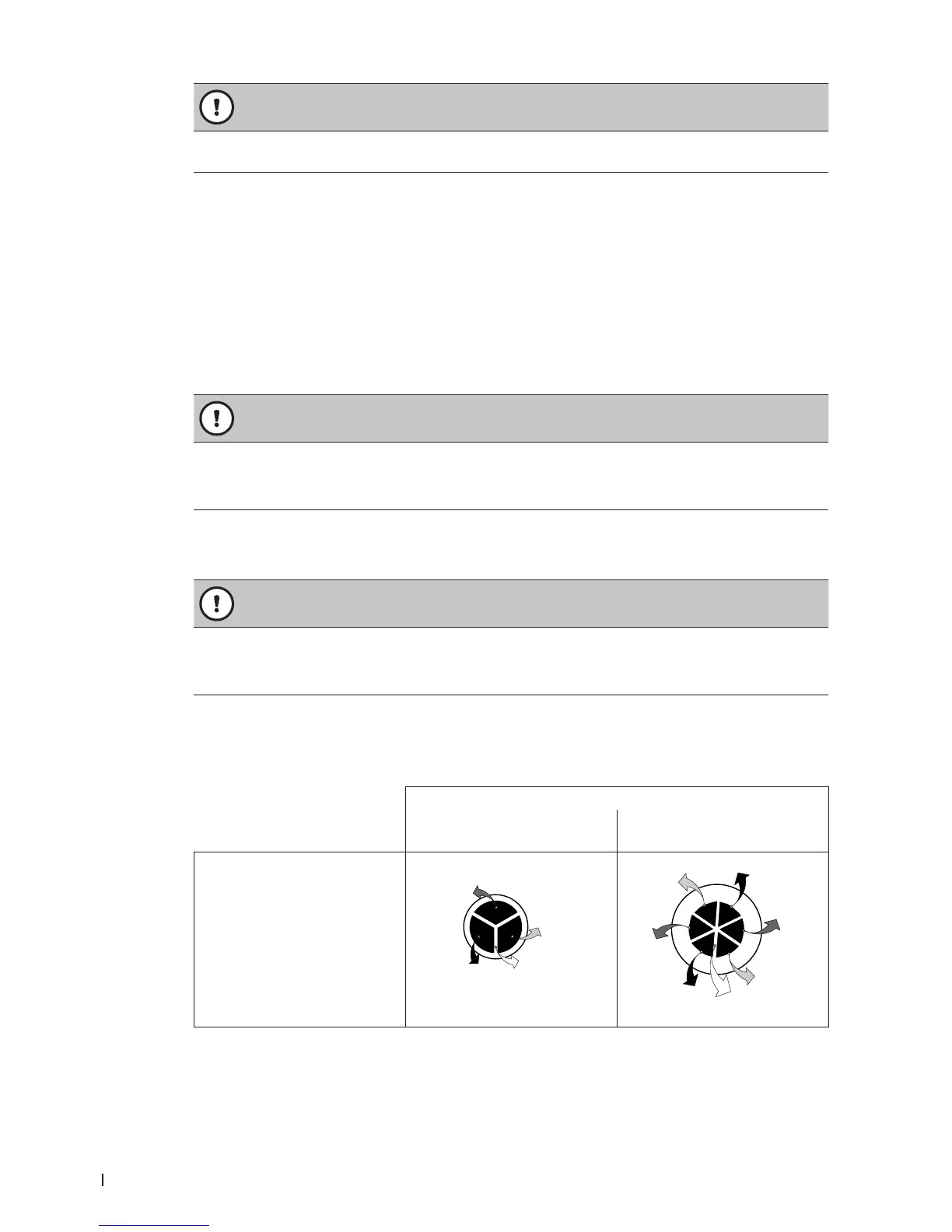

Steam cylinder type
A363 / D363
A464 / D464
A664 / D664
A674 / D674
Cable conguration
red
brown
Sensor
white
black
brown
red
black
brown
red
Sensor
white
black
