9Product Overview
3 Product Overview
3.1 ConstructionCondairELsteamhumidier
1 Water supply connector (G 3/4")
2 Inlet valve
3 Drain pump
4 Water supply hose
5 Auxiliary drain hose
6 Water lling and drain hose
7 Level sensor
8 Electrode plug
9 Fill cup
10 Condensate connector (to cylinder)
11 Condensate connector (to drain)
12 Steam outlet
13 Steam cylinder
14 Fastening strap steam cylinder
15 Drain hose
16 Drain cup with drain connector (ø30 mm)
17 Cylinder receptacle
18 Unit switch
19 Control board with display and control unit
20 Cable feed through plate
21 Rating plate
22 Driver board
23 Terminal heating voltage supply (option)
24 Main contactor

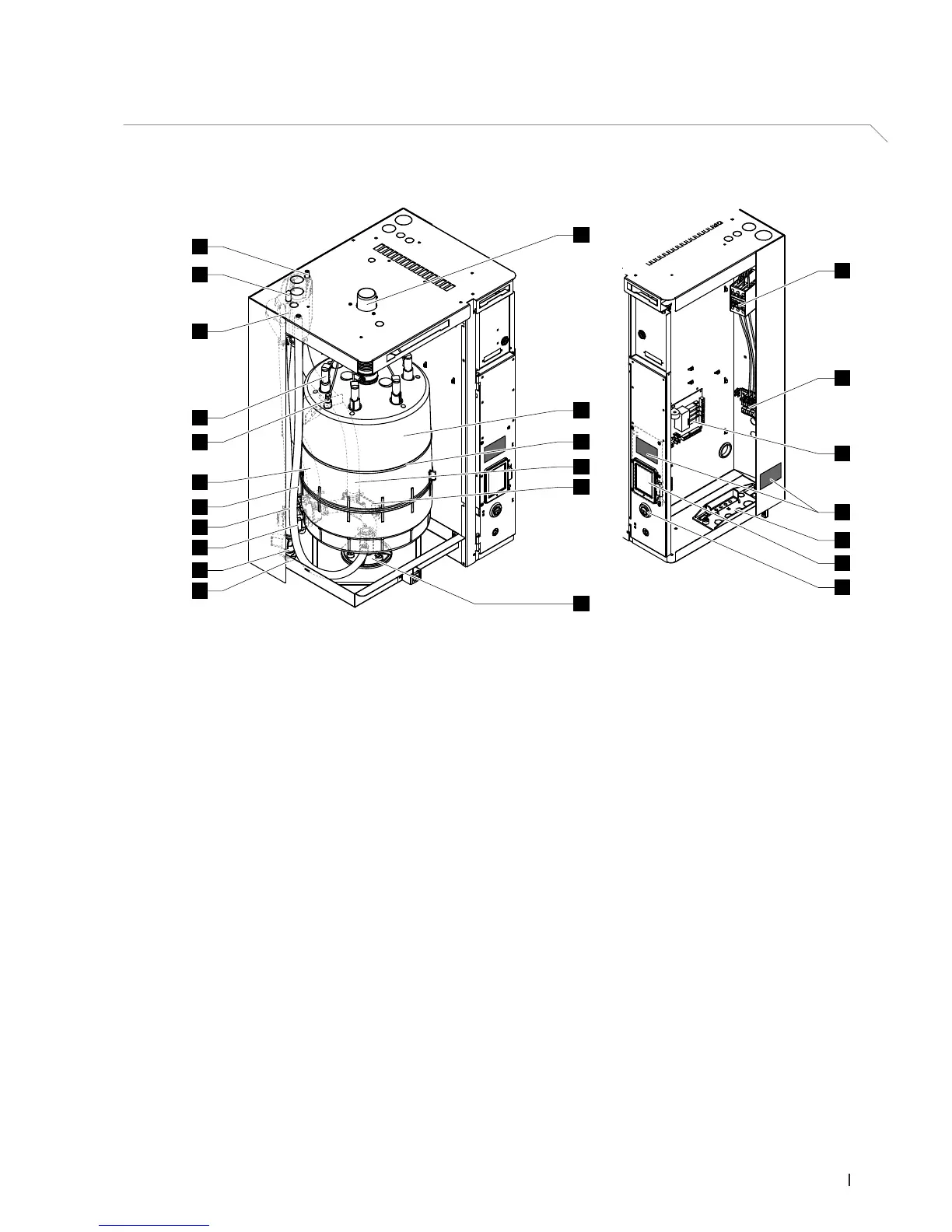

Fig. 1: Construction Condair EL steam humidier (gure shows medium sized unit)
1
2
4
3
5
7
8
9
10
11
6
16
17
15
13
12
20
23
24
18
19
22
21
14
