67Fault elimination
7 Fault elimination
7.1 Fault indication
Malfunctions during operation detected by the control software are indicated by a corresponding Warning
message (operation still possible) or Fault message (operation not longer possible) in the maintenance
and fault indication eld in the standard operating display of the control unit.
Warning
Temporary problems (e.g. water supply interrupted for a short time) or malfunc-
tions which cannot cause damage to the system are indicated with a warning
message. If the cause of the malfunction disappears of its own accord
within a certain period of time, the alarm message will automatically be
reset, otherwise a fault message is triggered.
Note: warnings can be indicated also via the service relay of the remote
operating and fault indication. The warning indication via the service relay
must be activated in the communication menu of the control software (see
chapter 5.4.5).
Fault
Operational states where further operation is not possible, or where further
operation would damage the system are indicated with a fault message, ad-
ditionally the red fault indicator LED below the touch panel will lights up. If
such a malfunction occurs, the steam production of the Condair EL will be
stopped automatically.

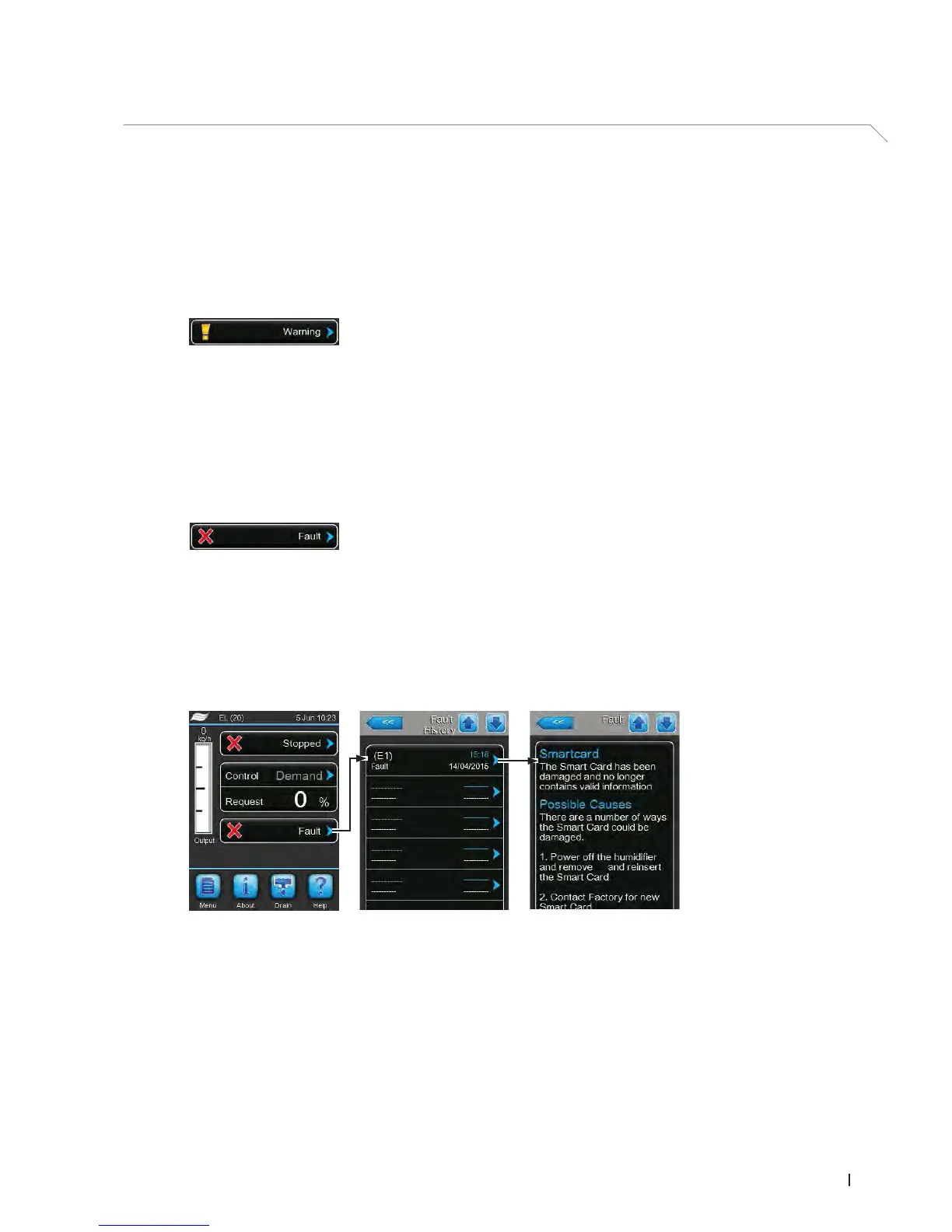

By pressing on the maintenance and malfunction indication eld in the standard operating display, the
error list will show all active warning and fault messages. By pressing on the corresponding Warning or
Fault entry, additional information regarding the malfunction is displayed (see display on the far-right).
