22 Operating the control software

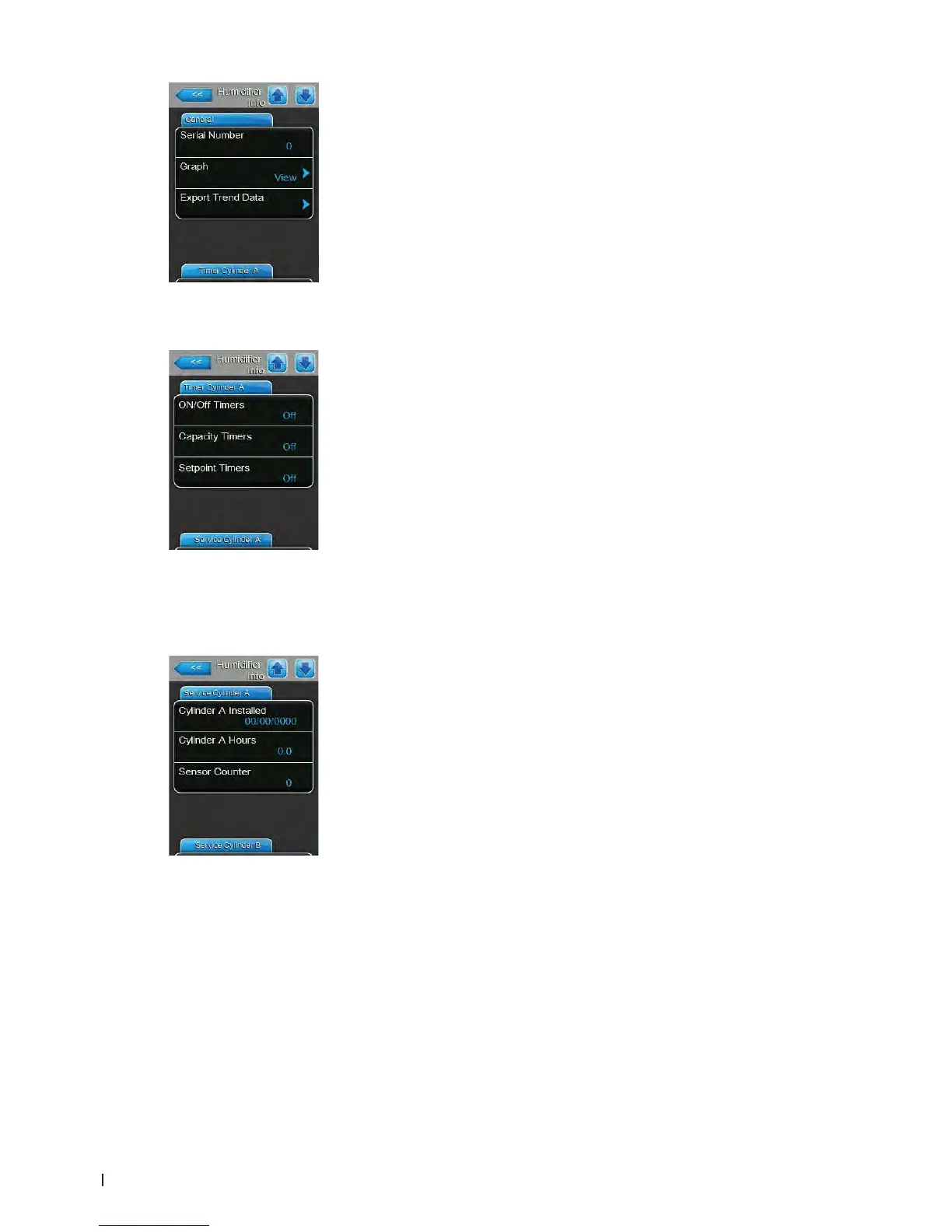

– Serial Number: Serial number of the steam humidier.
– Graph: With this function you can access the graphical display of the
performance diagram of the Condair EL.
– Export Trend Data: With this function you can save the data of the per-
formance diagram as .csv le to a USB memory stick (FAT32 formatted).
Note: before carrying this function, a FAT32 formatted USB memory stick
must be connected to the USB port on the control board.
Timer Cylinder A Tab
– On/Off Timers: Present status of the On/Off timer function ("On": On/
Off timer function activated, "Off": On/Off timer function deactivated). A
warning message is displayed whenever the humidier is turned off via
the On/Off timer. For further information see page 29.
– Capacity Timers: Present status of the timer controlled capacity limitation
("On": timer controlled capacity limitation activated, "Off": timer controlled
capacity limitation deactivated). For further information see page 28.
– Setpoint Timers: Present status of the setpoint timer function ("On": set-
point timer function activated, "Off": setpoint timer function deactivated).
For further information see page 33.
Service Cylinder A Tab (Service Cylinder B Tab)
Note: the tab "Service Cylinder B" appears only on double units and large units with two steam cylinders.
– Cylinder A installed / Cylinder B installed: Date of the initial commis-
sioning or date of the last "Cylinder Spent" message reset of the steam
cylinder A (or B).
– Cylinder A Hours / Cylinder B Hours: Operating hours of cylinder A (or
B) since the last "Cylinder Spent" message reset.
– Sensor Counter: Counter which indicates how many times the maximum
level has been reached in the steam cylinder A (or B) (determined with
the maximum level sensor in the steam cylinder cover).
